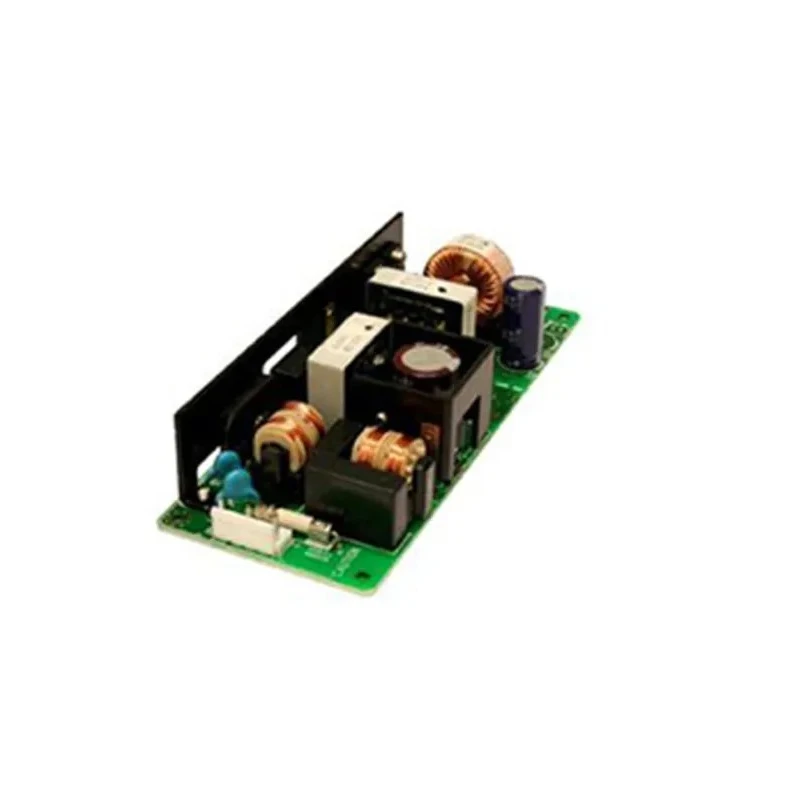

TDK-Lambda Switching Power Supply 24V DC, 76.8W, 3.2A Output, Chassis Mount ZWS75BAF-24/A
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | TDK-Lambda |
| Power | 76.8W |
| Efficiency | 87% |
| Length | 180mm |
| Model | ZWS75BAF-24/A |
| Depth | 45mm |
| Gross Weight | 230g |
| Width | 45mm |
| Mount Type | Chassis |
| Series | ZWS75BAF |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -10°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 370, 265V dc |
| EMC Compliance | EN55011/EN55022-B, FCC-B, VCCI-B |
| Maximum Output Voltage | 24V dc |
| SMPS Output Current | 3.2A |
| Minimum Input Voltage | 85V ac |
| PFC compliance | Meets EN61000-3-2 (Typically 0.98/0.93) |
Key Features
- Delivers maximum output voltage of 24V DC with an output current of 3.2A.
- Compact chassis mount design with dimensions 180mm length, 45mm width, and 45mm depth.
- Operates efficiently with 87% efficiency and active power factor correction.
- Wide operating temperature range from -10°C to 70°C for robust performance.
- Features over current and over voltage protection ensuring safety and reliability.
- Complies with multiple international standards including CE, FCC, and IEC/UL/CSA certifications.
- Input voltage accepts 85V AC minimum and maximum 265V AC or 370V DC input.
- Convection cooled with high input transient protection for stable operation.
Product Description
TDK-Lambda ZWS75BAF-24/A Switching Power Supply is a reliable and compact switch mode AC-DC power supply delivering 24V DC output voltage and 76.8W power with 3.2A current output. This chassis mount unit measures 180mm in length, 45mm in width, and depth, weighing 230 grams, making it suitable for space-constrained industrial environments.
Designed with active power factor correction and convection cooling, it achieves high efficiency of 87% ensuring energy savings. Its wide operating temperature range from -10°C to 70°C enables 100% load operation even in elevated temperature conditions up to 50°C, enhancing reliability in challenging industrial settings.
The ZWS75BAF series supports a wide AC input voltage range of 85V AC minimum up to 265V AC and DC input up to 370V DC, providing flexibility in diverse power environments. The unit incorporates high input transient protection and isolation at 3kVac between input and output to safeguard connected equipment.
Safety features include over current and over voltage protections conforming to multiple certification standards such as CE, EN 55011, EN 55022-B, FCC Class B, IEC/UL/CSA/EN 62368-1, among others, ensuring compliance with global regulatory requirements.
Its robust design and certified safety make it ideal for industrial applications including factory automation, test and measurement instrumentation, LED signage, and light industrial equipment where stable DC power is critical.
Maximum output voltage: 24V DC with 3.2A current output. Compact chassis mount form factor with 180mm x 45mm x 45mm dimensions. Efficient operation with 87% efficiency and PFC compliance matching EN61000-3-2. Wide operating temperature of -10°C to 70°C suitable for harsh environments.
Comprehensive safety and EMC approvals ensuring reliability and regulatory compliance. Flexible wide input voltage range: 85V AC minimum to 265V AC and 370V DC maximum. Convection cooled with 3kVac input-output isolation for protection.
Designed for use in industrial automation, LED signage, and test equipment. Explore more high-quality Switching Power Supplies from TDK-Lambda and other trusted brands on EnvMart for your industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output voltage of this model is 24V DC.
It has an output current rating of 3.2A.
The dimensions are 180mm in length, 45mm in width, and 45mm in depth.
This unit operates with an efficiency of 87%.
It operates efficiently within a temperature range of -10°C to 70°C.
It accepts an input voltage range from 85V AC minimum to 265V AC or 370V DC maximum.
It includes over current and over voltage protection to ensure safety and reliability.
This power supply complies with multiple international standards including CE, FCC, and IEC/UL/CSA certifications.
The gross weight of this unit is 230 grams.
It is convection cooled, which helps maintain stable operation.
It is suitable for applications in factory automation, test and measurement instrumentation, and LED signage.
It features an isolation of 3kVac between input and output for enhanced protection.
