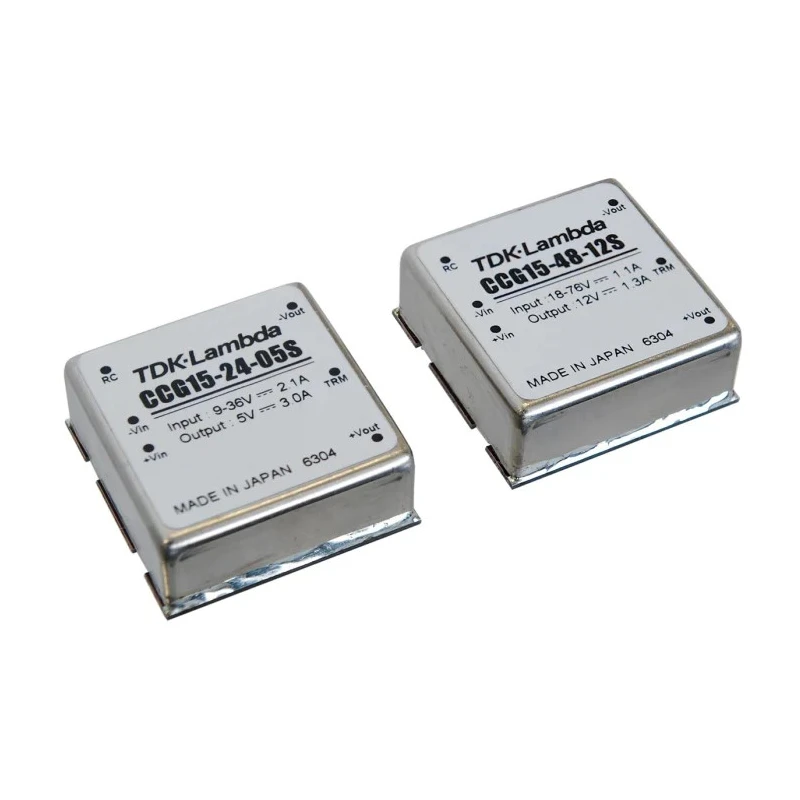

TDK-Lambda DC/DC Converter, 5V DC, 3 A Output, 18-76 V DC Input, 15 W Output Power, Through Hole Mount CCG15

Free Delivery in India | Lowest Global Shipping Charges

TDK-Lambda DC/DC Converter, 5V DC, 3 A Output, 18-76 V DC Input, 15 W Output Power, Through Hole Mount CCG15

Name: TDK-Lambda DC/DC Converter, 5V DC, 3 A Output, 18-76 V DC Input, 15 W Output Power, Through Hole Mount CCG15
Brand: TDK-Lambda
SKU: 199325
Price: 56.13 USD
Availability: InStock



Category DC/DC Converter Brand TDK-Lambda Condition New

Specifications

Country of Origin	Japan
Voltage	Converters / DC-DC Converters TDK-Lambda CCG15 DC/DC Converter, 5V dc/ 3 A, 76V
Brand	TDK-Lambda
Efficiency	87%
Length	25.4mm
Model	CCG15
Depth	9.9mm
Gross Weight	20g
Width	9.9mm
Mount Type	Through Hole
Series	CCG15
Maximum Operating Temperature	85°C
Package Type	DIP
Minimum Operating Temperature	-40°C
MTBF	3191064h
Number of outputs	1
Ripple and Noise	95mV Pk-Pk
Maximum Output Power	15W
Maximum Input Voltage	76V dc
Standards/Approvals	CE, EN 60950-1, UL/CSA 60950-1
Minimum Input Voltage	18V
Number of Pins	6
Output Voltage 1	5V dc
Output Current 1	3A
Output Voltage Adjustment Range	5.5 V
Isolation Voltage	500V dc

Key Features

Encased in a metal case with six-sided shielding to reduce noise.
Supports through-hole mounting for easy installation.
Operates efficiently with up to 87% efficiency.
Designed for operating temperatures from -40°C to +85°C.
Offers a high isolation voltage of 500 V DC for safety and reliability.
Includes remote on/off and adjustable output voltage features.
Complies with CE, EN 60950-1, and UL/CSA 60950-1 standards.
Compact DIP package with dimensions approximately 25.4mm x 9.9mm x 9.9mm.

Product Description

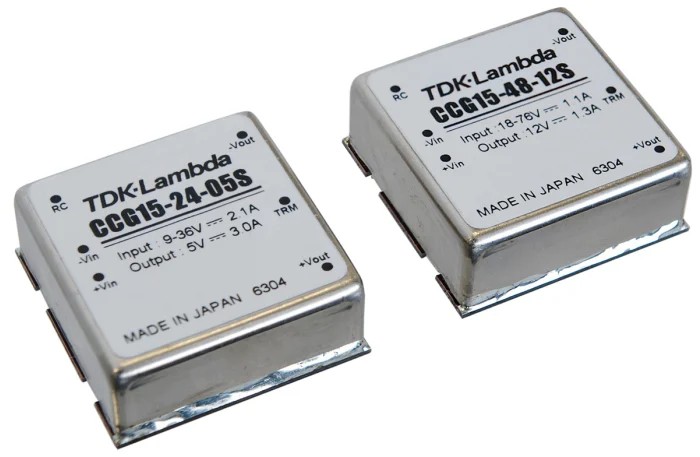

TDK-Lambda CCG15-48-05S DC/DC Converter is a high-quality isolated converter designed for reliable and efficient power conversion. It outputs 5 V DC at 3 A with an input voltage operational range of 18 V to 76 V DC, delivering up to 15 W of power. Its through-hole dip package construction ensures strong mechanical stability and effective installation in various industrial applications.

This converter is encased in a robust metal housing with six-sided shielding to minimize electromagnetic interference and radiated noise. Its encapsulated design also offers exceptional shock and vibration resistance, ensuring stable operation in demanding environments.

The device supports remote on/off capability and an adjustable output voltage range near 5.5 V, allowing flexible system integration. With an efficiency rating of up to 87%, it promotes energy savings and reduced heat generation during operation.

Operating reliably in ambient temperatures from -40°C to 85°C, this product suits industrial automation, process control, broadcast equipment, and testing & measurement setups. Its 500 V DC isolation voltage enhances safety by preventing leakage currents between input and output.

Encased in a shielded metal case to reduce electrical noise. Through-hole mounting package for robust attachment. High efficiency of up to 87% to minimize power loss. Wide input voltage range of 18 to 76 V DC for versatile use.

Adjustable output voltage for precise application needs. High isolation voltage of 500 V DC for enhanced safety. Compliant with international safety standards CE, EN 60950-1, and UL/CSA 60950-1. Compact size measuring 25.4mm length, 9.9mm width, and 9.9mm depth.

Ideal for a variety of industrial and electronic applications.

The CCG15 Series by TDK-Lambda exemplifies quality and reliability in DC/DC Converter technology. Its combination of rugged construction, flexible electrical performance, and compliance with global standards makes it an ideal choice for engineers seeking efficient and stable power solutions.
