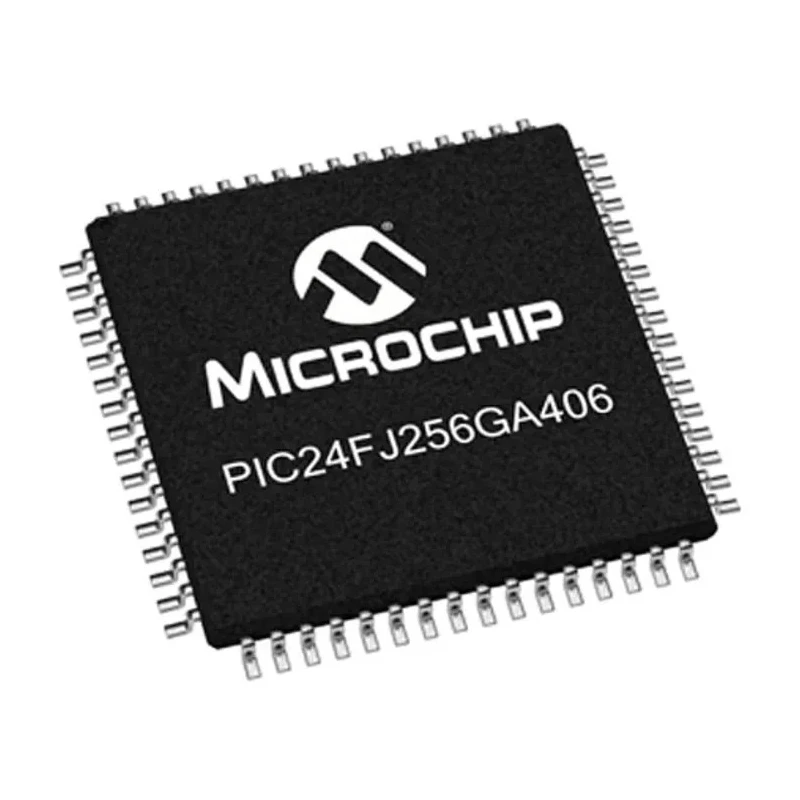

Microchip 16 bit PIC24FJ256GA406-I/PT Microcontroller, 32 MHz, 256kB FLASH, 64-Pin TQFP PIC24FJ256GA406-I/PT

Microchip PIC24FJ256GA406-I/PT is a high-performance 16-bit PIC24FJ microcontroller designed for embedded applications requiring secure, low-power operation. This device operates at a maximum frequency of 32 MHz with a 256kB Flash program memory and 16kB RAM enabling efficient data processing and storage in compact form. Encased in a 64-pin TQFP surface mount package with dimensions 10 mm x 10 mm and a height of 1.05 mm, it is suited for high-density circuit designs.

This microcontroller incorporates an advanced cryptographic engine supporting robust NIST standard encryption operations, including AES and DES ciphers, for secure communications and data protection without CPU intervention. The dual partition Flash memory offers bootloader functionality and simultaneous software application execution with live update capability enhancing firmware maintenance and reliability.

Featuring 16 channels of precise 10/12-bit ADCs and a high-speed 1 Msps 10-bit DAC, along with three analog comparators and a charge time measurement unit, the device supports applications in sensory data acquisition and capacitive touch sensing. The inclusion of multiple timers, DMA channels, and external interrupt sources provides flexible hardware resource management.

Built on a modified Harvard architecture, it delivers up to 16 MIPS at full frequency with hardware support for fractional and integer multiplication as well as division operations for computational efficiency. Power management options enable extremely low power consumption with multiple clock modes and deep sleep currents as low as 60 nA, making it ideal for battery-powered and portable devices.

Operating within a voltage range of 2V to 3.6V and able to function in environmental temperatures from -40°C to 85°C, this microcontroller is suitable for industrial, automotive, consumer electronics, and communications applications. The device meets RoHS compliance ensuring environmental safety.

Operates at 32 MHz clock frequency with 16 MIPS performance. 256kB Flash memory with dual partition for firmware flexibility. 16kB RAM for efficient data handling. On-chip cryptographic engine supports AES and DES algorithms.

Includes 16 ADC channels and 1 DAC channel for analog interfacing. Low power consumption with multiple power modes and deep sleep current of 60 nA. Robust operating temperature range of -40°C to 85°C for industrial-grade applications.

Surface mount TQFP 64-pin package with compact 10x10 mm footprint. Explore the Microcontrollers category on EnvMart for more Microcontroller solutions designed for embedded systems and industrial applications.
