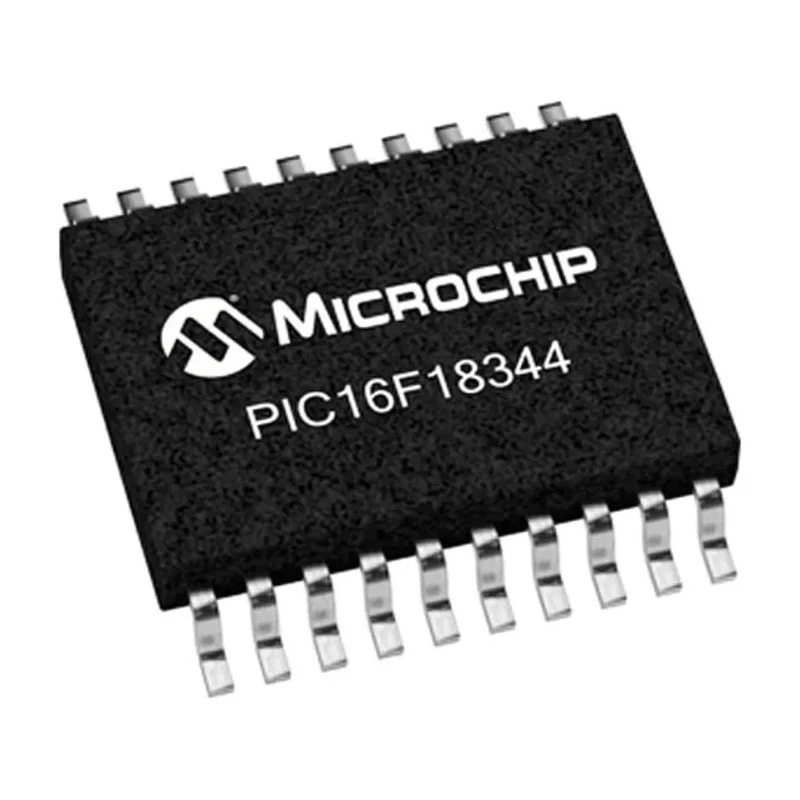

Microchip PIC16F18344-I/SS 8 bit PIC Microcontroller, PIC18F Series, 32 MHz, 7kB Flash, 4.1kB RAM, 20-Pin SSOP

Microchip PIC16F18344-I/SS is an 8-bit PIC microcontroller from the PIC18F series, designed for a wide range of low power and general purpose applications. Operating at a maximum clock frequency of 32 MHz, it integrates 7kB of FLASH program memory and 4.1kB of RAM that support efficient embedded system development.

The device is supplied in a 20-Pin SSOP surface-mount package, designed for compact hardware implementations. It operates within a supply voltage range of 2V to 5.5V, with a maximum power dissipation of 1W, making it suitable for low power industrial and commercial applications.

This microcontroller offers a rich set of peripherals including 22 programmable I/O pins, SPI/I2C/EUSART communication interfaces, and multiple 8-bit and 16-bit timers, facilitating diverse timing and communications needs. Its Peripheral Pin Select (PPS) function enhances flexibility in peripheral connection and layout customization.

Advanced analog features include 21 x 10-bit analog-to-digital converters (ADC), a 5-bit digital-to-analog converter (DAC), two comparators, and multiple PWM outputs, useful in signal processing and control tasks. The extended operating temperature range from -40°C to 85°C ensures dependable performance in harsh industrial environments.

Additional robustness is provided by integrated low-power modes including IDLE and DOZE, and protection features such as enhanced power-on/off-reset and brown-out reset capabilities. The device is programmed in-circuit (ICSP), supporting easy firmware updates and debugging.

Operates up to 32 MHz clock frequency with 7kB FLASH and 4.1kB RAM. 20-Pin SSOP surface mount package for compact design. Supports SPI, I2C, and EUSART communication protocols. 21 channels of 10-bit ADC and 5-bit DAC for analog input/output needs.

Peripheral Pin Select (PPS) functionality for flexible pin configuration. Wide operating voltage range from 2V to 5.5V with 1W max power dissipation. Industrial operating temperature range -40°C to 85°C. Multiple timers and low power modes for advanced control.

In-circuit serial programming (ICSP) for firmware management. Application domains include industrial control, automotive systems, and general embedded computing.

Ideal for industrial, commercial, and embedded systems, the Microchip PIC16F18344-I/SS provides robust performance, flexible peripheral options, and energy-efficient operation. Explore the full Microcontroller range on EnvMart for diverse embedded solutions.
