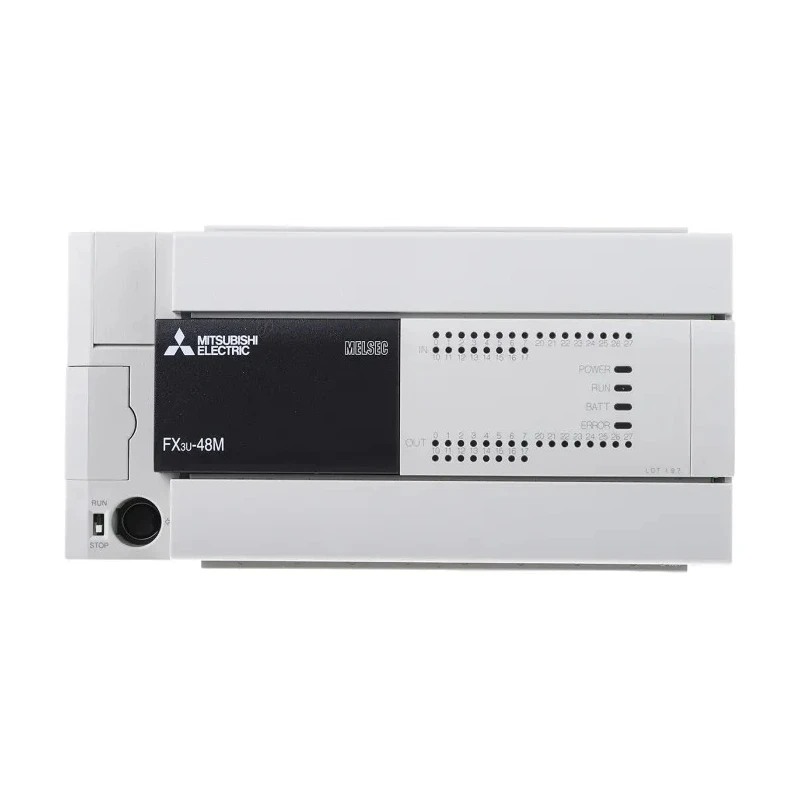

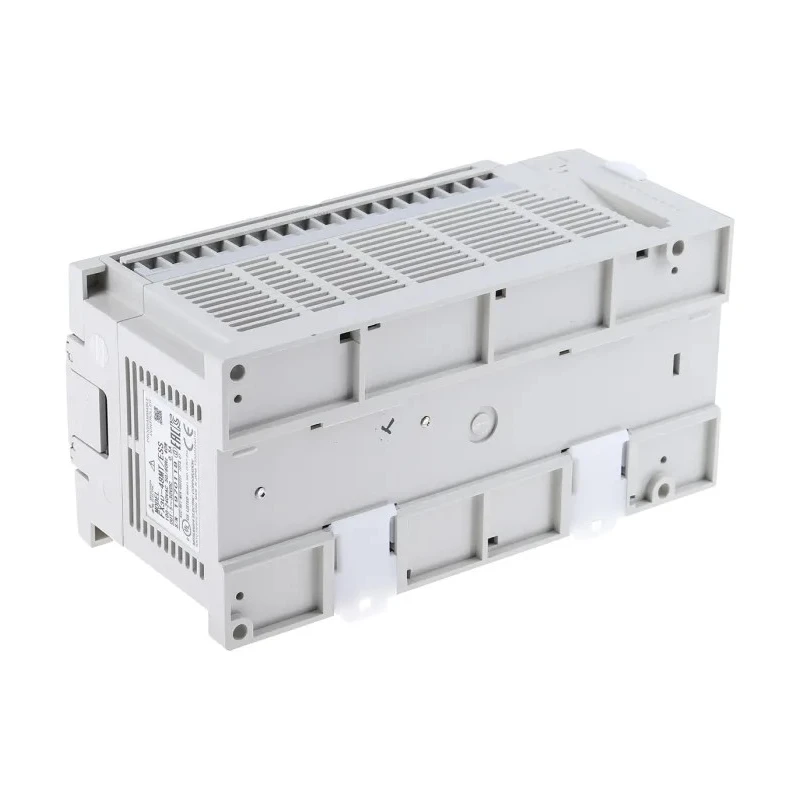

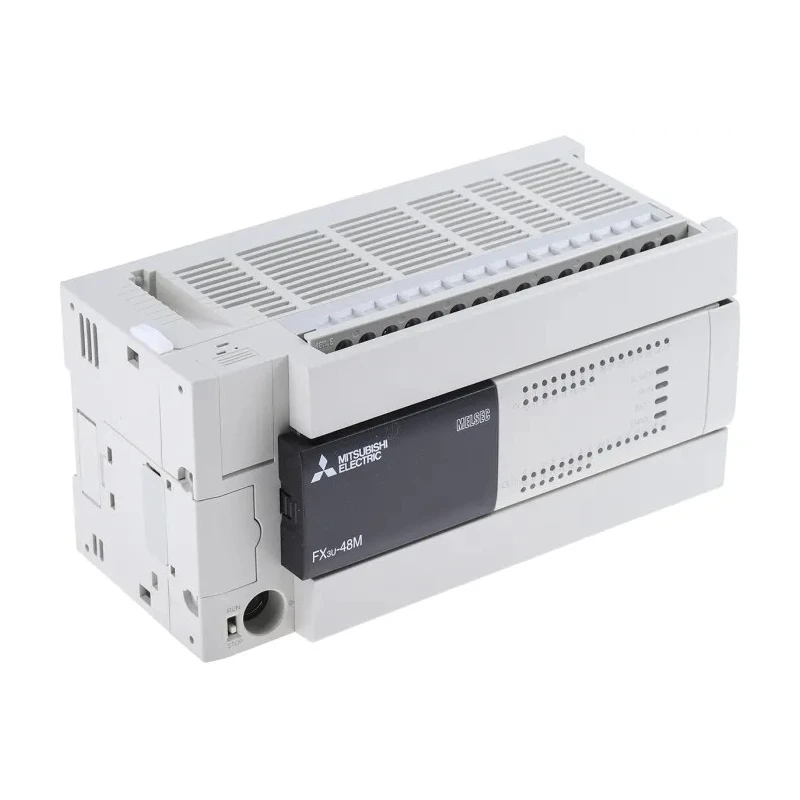

Mitsubishi Electric FX3U Series Logic Module 24-Input Sink Input 24 Transistor Outputs DIN Rail Mount FX3U-48MT/ESS

Mitsubishi Electric FX3U-48MT/ESS is a high-performance logic module from the FX3U series designed for programmable logic controllers in industrial automation systems. This module features 24 sink inputs and 24 transistor outputs, making it suitable for controlling a range of industrial machinery and processes with high reliability.

The module supports DIN rail mounting, which simplifies installation and integration into existing control panels. It operates on a supply voltage of 100 to 240V AC and delivers an output current of 800mA, ensuring robust electrical performance in demanding industrial environments.

Equipped with multiple communication interfaces such as RS232C, RS422, RS485, and USB ports, the FX3U-48MT/ESS allows flexible connectivity for programming and network communication. Programmable with Ladder Logic, it supports complex process control with a program capacity of 64000 steps. The integrated display and battery backup enhance operational reliability and enable real-time monitoring.

This logic module is compact with dimensions of 182mm (L) x 90mm (W) x 86mm (D) and operates efficiently within a temperature range of 0°C to 50°C, suitable for varied industrial conditions. The product complies with UL and CE standards, ensuring it meets stringent international certifications for safety and performance.

Typical applications include automation in manufacturing plants, industrial process controls, HVAC systems, and other complex control environments that require precise and reliable programmable logic control modules.

This Logic Module supports DIN rail mounting for easy integration into control panels. The output current rating is 800mA per output ensuring reliable signal transmission. It operates on supply voltages ranging from 100VAC to 240VAC, suitable for varied power environments.

The programming language used is Ladder Logic, meeting industry PLC programming standards. Communication ports include RS232C, RS422, RS485, and USB, offering versatile connectivity options. It features a program capacity of 64000 steps for complex automation tasks.

Includes battery backup and display for enhanced operational reliability and status indication. Operating temperature range from 0°C to 50°C supports various industrial environments. Its dimensions are 182mm length, 90mm width, and 86mm depth ensuring compact installation.

The product is UL and CE approved, assuring compliance with international safety standards. Explore more Mitsubishi Electric industrial automation products and reliable PLC modules on EnvMart.
