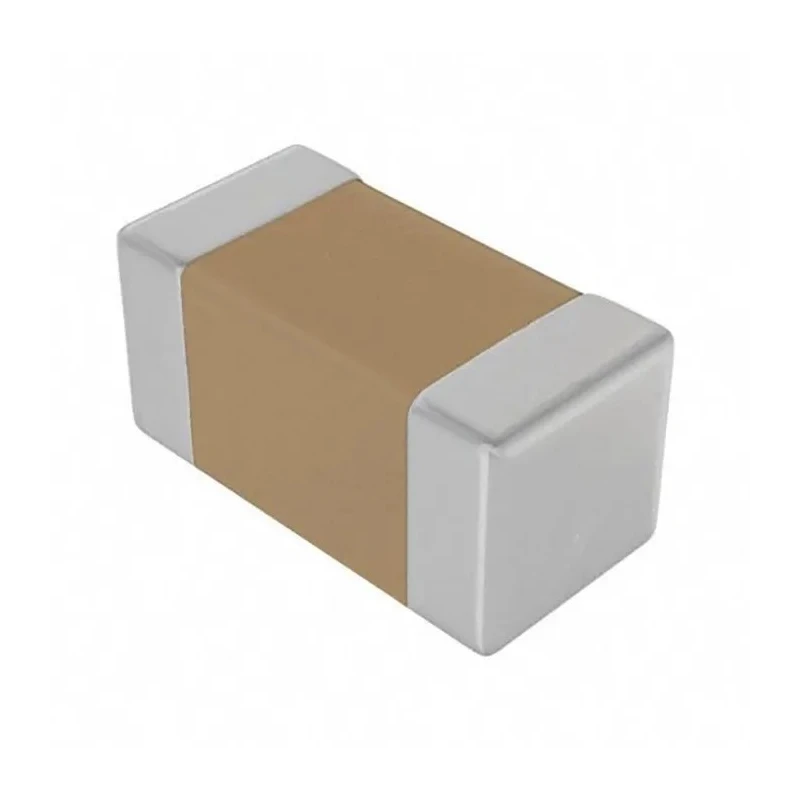

Yageo 10 nF Multilayer Ceramic Capacitor 50V DC ±10% Tolerance Surface Mount 0402 Package CC0402KRX7R9BB103

Yageo CC0402KRX7R9BB103 is a 10 nF Multilayer Ceramic Capacitor designed for surface mount applications featuring a 50V DC voltage rating and ±10% capacitance tolerance. It utilizes an X7R dielectric, providing excellent temperature stability and reliability for industrial and commercial electronics.

This surface mount capacitor employs a stacked construction within an 0402 package size, measuring 1mm length by 0.5mm width and height, ideal for compact circuit board designs. It is constructed to comply with international standards IEC 60384-1 and IEC 60384-21/22 ensuring adherence to safety and performance criteria.

The device operates reliably across a broad temperature range from -55°C to 125°C, making it suitable for diverse industrial, consumer electronics, telecommunications, and instrumentation applications. Packaging is provided in Paper/PE Tape Reel format to support high-volume automated PCB assembly lines.

Typical uses include television receivers, tuners, video recorders, cameras, and mobile phones where high capacitance density and surface mount convenience are critical. The capacitor represents a quality passive component choice for electronic engineers and manufacturers requiring stable and precise capacitance in a miniature form factor.

This capacitor features a stacked construction type for high capacitance per unit volume. Dielectric material is X7R, suitable for stable performance across temperature variations. The capacitor is offered with surface mount termination for PCB mounting.

Operating temperature range spans from -55°C to 125°C for versatility in applications. Compliance to IEC 60384-1 and IEC 60384-21/22 standards ensures quality and reliability. Capacitor dimensions are 1mm length, 0.5mm width, and 0.5mm height for compact electronics.

Packaging uses Paper/PE Tape Reel facilitating automated assembly processes. Suppression Class II capacitor suitable for filtering and decoupling applications in electronics. Designed without automotive standard approvals intended for general electronic component use.
