Gems Sensors Electro Optic Level Probe Horizontal Vertical Viton Polysulfone Housing 208996

Free Delivery in India | Lowest Global Shipping Charges

Gems Sensors Electro Optic Level Probe Horizontal Vertical Viton Polysulfone Housing 208996

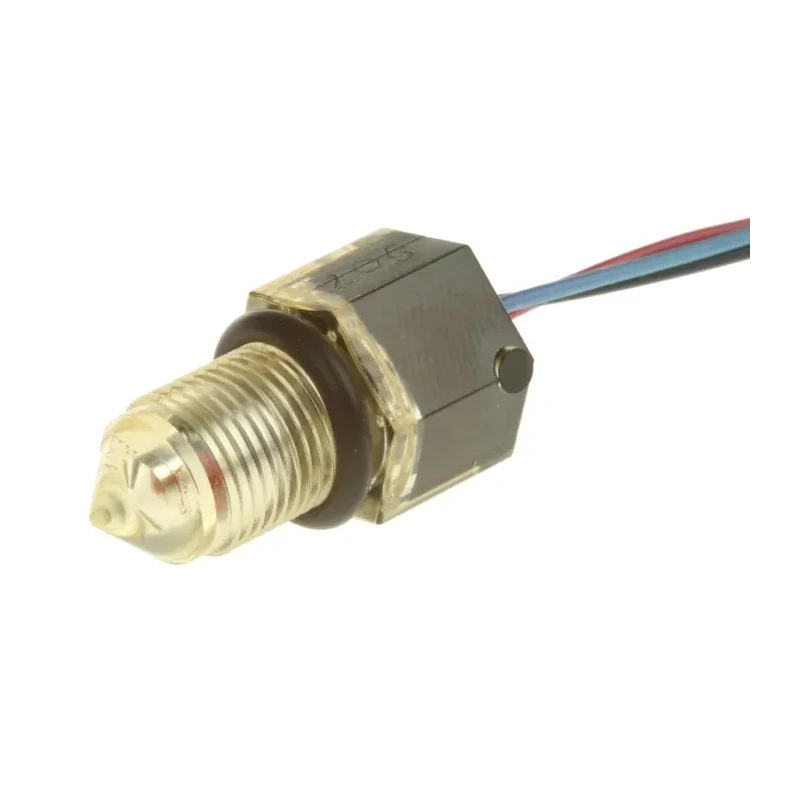

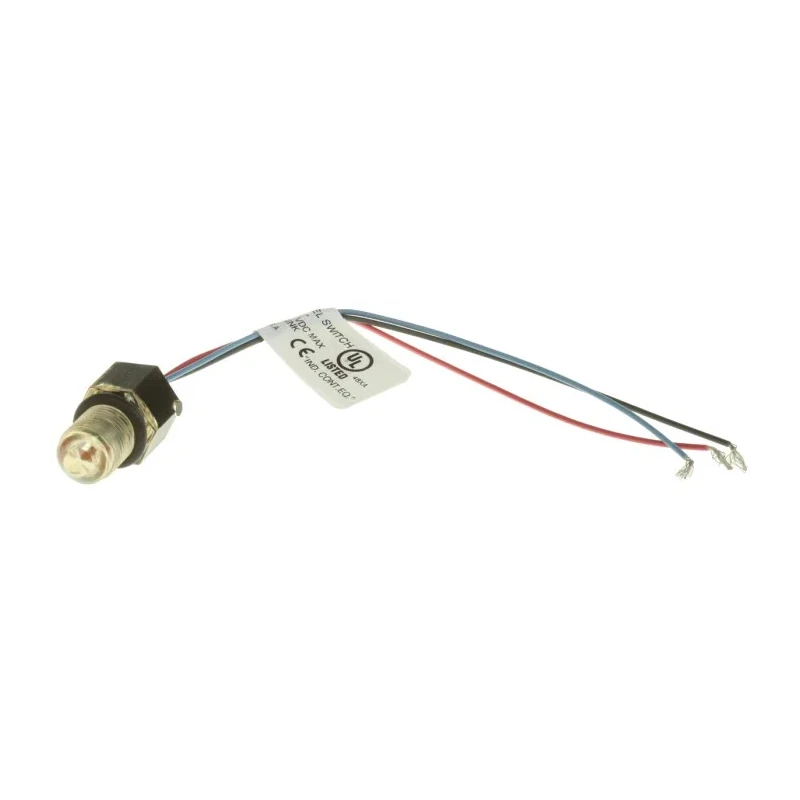

Name: Gems Sensors Electro Optic Level Probe Horizontal Vertical Viton Polysulfone Housing 208996
Brand: GEMS SENSORS
SKU: 199052
Price: 132.34 USD
Availability: InStock



Category Level Sensor Brand GEMS SENSORS Condition New

Specifications

Country of Origin	United States
Brand	Gems Sensors
Model	208996
Cable Length	30m
Mount Type	Horizontal, Vertical
Housing Material	Polysulfone
Series	ELS-900
Maximum Operating Temperature	125°C
Maximum Pressure	250psi
Minimum Operating Temperature	-40°C
Maximum Current	18mA
Device Type	Electro Optic
Maximum dc Voltage	30V dc
Standards/Approvals	UL E108913
Gasket Material	Viton

Key Features

Can be mounted in any position including horizontal and vertical orientations.
Constructed with high chemical corrosion resistance Polysulfone housing.
Equipped with Viton O-ring seal for excellent gasket durability.
Suitable for operating temperatures from -40°C to 125°C.
Supports maximum DC voltage of 30V with maximum current of 18mA.
Maximum pressure rating of 250psi for robust operation.
Includes 30m cable length for flexible installations.
Output current sink up to 40mA at 30V DC for signal reliability.

Product Description

Gems Sensors 208996 Electro Optic Level Probe offers reliable level sensing with flexibility for horizontal or vertical mounting positions. Its Polysulfone housing provides high chemical corrosion resistance making it suitable for industrial and automation applications involving corrosive liquids and harsh environments.

The Viton O-ring gasket ensures superior sealing and durability under pressure and temperature extremes, accommodating operating temperatures ranging from -40°C to 125°C. It can withstand pressures up to 250psi, suitable for a range of liquid level monitoring needs in process industries.

The probe has a robust output feature with current sink capability of 40mA max at 30V DC and delivers consistent sensor signal with a maximum operating current of 18mA. With a 30-meter cable length, it allows for flexible and distant placements from control systems or monitoring devices.

Certified to UL E108913 and approved under CE standards, the Gems Sensors 208996 level probe complies with recognized safety and quality certification norms. Manufactured in the United States, the product meets rigorous industrial quality criteria.

Horizontal and vertical mounting capability for versatile installations. Polysulfone housing delivers excellent chemical corrosion resistance. Viton gasket ensures long-lasting sealing performance. Cable length of 30m provides installation convenience.

Operating temperature range from -40°C to 125°C supports varied environments. Pressure resistance up to 250psi for demanding applications. Maximum DC voltage of 30V and current of 18mA ensures electrical safety. Complies with UL E108913 and CE certifications.

This level probe is recommended for automation, electrical control gear, chemical processing, and industrial applications requiring precise and durable level sensing solutions. Explore the Electronics & Electricals Sensors Level Sensors category at EnvMart for more products like Gems Sensors 208996 Electro Optic Level Probe.
