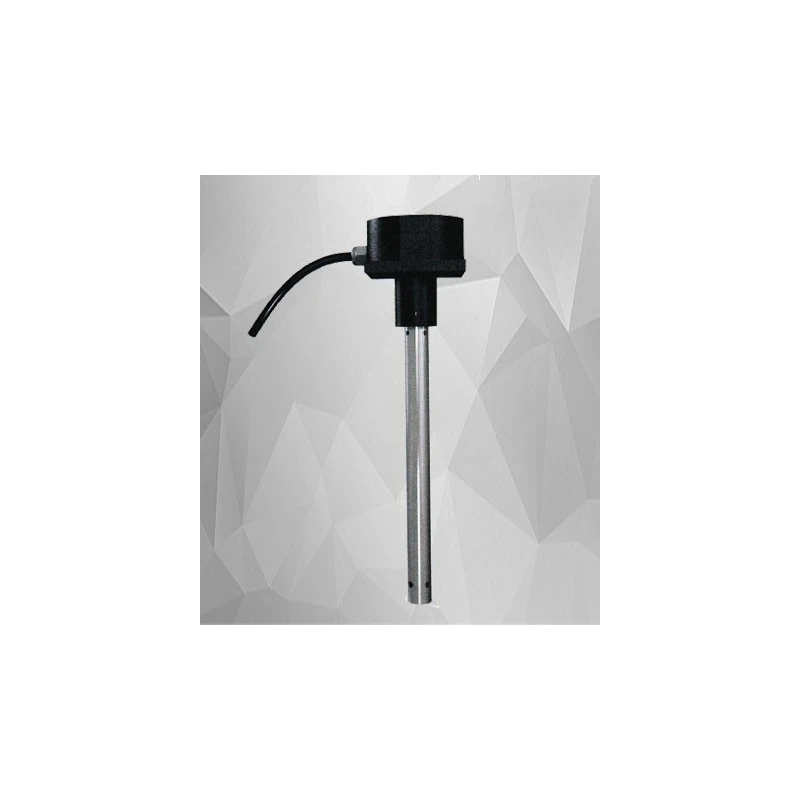

Aluminum Fuel Level Sensors -20 to 85 C.
Specifications
| Accuracy | + - 1% FSD |
|---|---|
| Housing | Aluminum |
| Probe length | 150mm Min.| up to 1500mm Max. |
| Ambient temperature range | -20 to 85 C. |
| Supply Voltage range | 10......30 V DC 0r 10...60V DC on request |
| Sense electrode and Still Well | Aluminum / Stainless Steel |
| Nominal Supply Voltage (V) | 12 / 24 V DC |
| Available Analog Outputs on request | 1.5- 4.5 VDC or 1-5 VDC or1-10 VDC or 4-20 mA DC as per request |
| Available Digital Outputs on request | RS232 or RS485 as per request |
| Transient Voltage Protection | 100 V max |
| Warm up time after power on | Less Than 10 Secs |
Key Features
- Bulk Quantities Available
Product Description
FUEL SENSE is a capacitive level sensor designed for precisely measuring fuel level in moving and stationary applications. FUEL SENSE can be used to measure level in diesel and other electrically non-conductive liquids. It can be used for monitoring the level in Fuel tanks of Vehicles such as Trucks, Tractors, Road building machinery, and in fixed installations like D.G. sets. It can be used as a standard Fuel Level Sensor or in a Vehicle tracking system.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The accuracy of the Aluminum Fuel Level Sensor is ±1% of Full Scale Deflection (FSD).
This sensor operates within an ambient temperature range of -20 to 85 degrees Celsius.
The probe length for this sensor ranges from a minimum of 150mm to a maximum of 1500mm.
The nominal supply voltage for this model is 12 or 24 V DC, with a supply voltage range of 10 to 30 V DC or 10 to 60 V DC available upon request.
This model can be configured with various analog outputs such as 1.5-4.5 VDC, 1-5 VDC, 1-10 VDC, or 4-20 mA DC upon request, as well as digital outputs.
The sense electrode and still well are made of aluminum or stainless steel.
The warm-up time after power on is less than 10 seconds.
This model features transient voltage protection up to a maximum of 100 V.
Yes, it can be used as a standard fuel level sensor or integrated into a vehicle tracking system.
Yes, it is designed to measure levels in diesel and other electrically non-conductive liquids.
The housing of this sensor is made from aluminum.
