3M 3000 Series Right Angle Through Hole PCB Header, 40 Contact(s), 2.54 mm Pitch, 2 Row, Shrouded N3432-5202RB

Free Delivery in India | Lowest Global Shipping Charges

3M 3000 Series Right Angle Through Hole PCB Header, 40 Contact(s), 2.54 mm Pitch, 2 Row, Shrouded N3432-5202RB



Category PCB Headers Brand 3M Condition New

Specifications

Country of Origin	India
Voltage	25V
Brand	3M
Orientation	Right Angle
Current	2.0
Model	N3432-5202RB
Mount Type	Through Hole
Contact Material	Copper Alloy
Series	3000
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	40
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board, Wire-to-Board
Tail Pin Length	0.01in
Mating Pin Length	6.2mm
Connector,PCB,multipole,header,solder,r/a,short,40way,HE10Brand	3M

Key Features

Features 40 male contacts arranged in 2 rows with 2.54 mm pitch.
Constructed with copper alloy contacts plated with gold for reliable conductivity.
Shrouded design enhances mechanical protection and alignment.
Rated for 25V operating voltage and 2.0A current capacity.
Suitable operating temperature ranges from -55°C to 105°C.
Mounting type is through hole for secure PCB attachment.
Includes 6.2 mm mating pin length and short 0.01 inch tail pin length.
Termination type is solder ensuring strong and permanent electrical connections.

Product Description

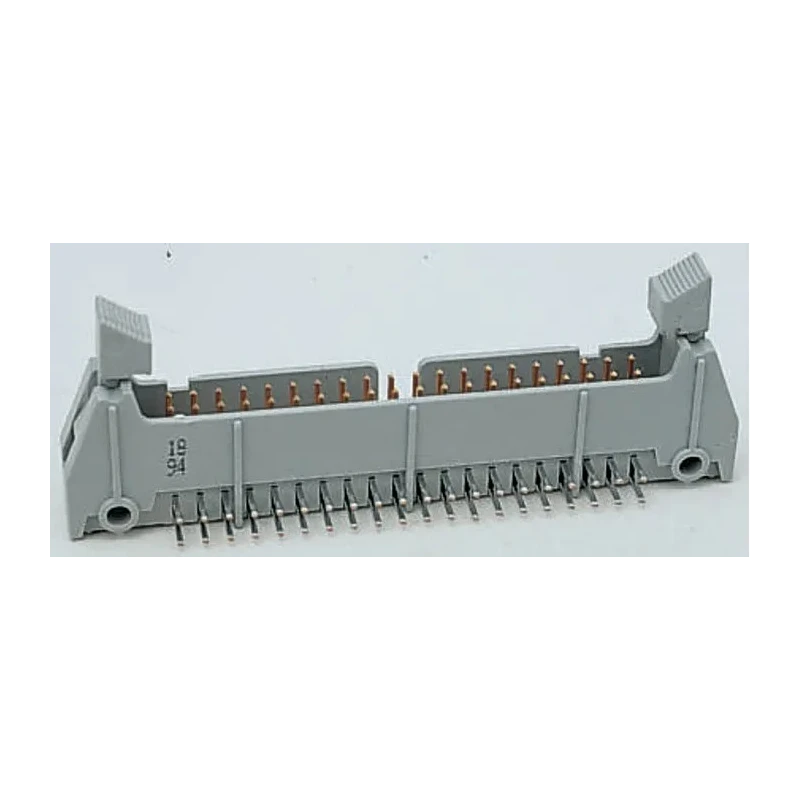

3M N3432-5202RB 3000 Series Right Angle Through Hole PCB Header features 40 gold-plated copper alloy male contacts arranged in 2 rows with a standard 2.54 mm pitch for precise PCB alignment. This shrouded connector is designed for board-to-board and wire-to-board connections with a through-hole mount providing robust mechanical and electrical integrity.

The header supports a maximum operating voltage of 25V and a current rating of 2.0A, making it suitable for a variety of low-power electronic circuit applications. It operates reliably within a temperature range of -55°C to 105°C, accommodating diverse industrial and commercial environments.

The connector’s termination by solder ensures durable and stable electrical contacts. It includes 6.2 mm mating pin length and short 0.01 inch tail pin length optimized for compact PCB designs. The shrouded design adds protection and improves connector alignment for enhanced system reliability.

This product is ideal for use in electronic components manufacturing, assembly lines, circuit board prototyping, and other professional electrical and electronic engineering applications. It provides reliable connectivity in industrial, laboratory, and commercial settings requiring secure through-hole PCB mounting.

Features 40 gold-plated copper alloy contacts arranged in 2 rows with 2.54 mm pitch. Right angle orientation and shrouded housing offer mechanical protection and ease of PCB fitting. Rated for 25V and 2.0A suitable for low power circuits.

Through-hole mount ensures secure soldered connection to PCB. Operates reliably between -55°C and 105°C. Termination by solder provides stable electrical conduction. Includes 6.2 mm mating pin and 0.01 inch tail pin lengths.

Explore advanced electronic connectors and headers from 3M in the Electronics & Electricals category at EnvMart for your circuit board design and manufacturing needs.
