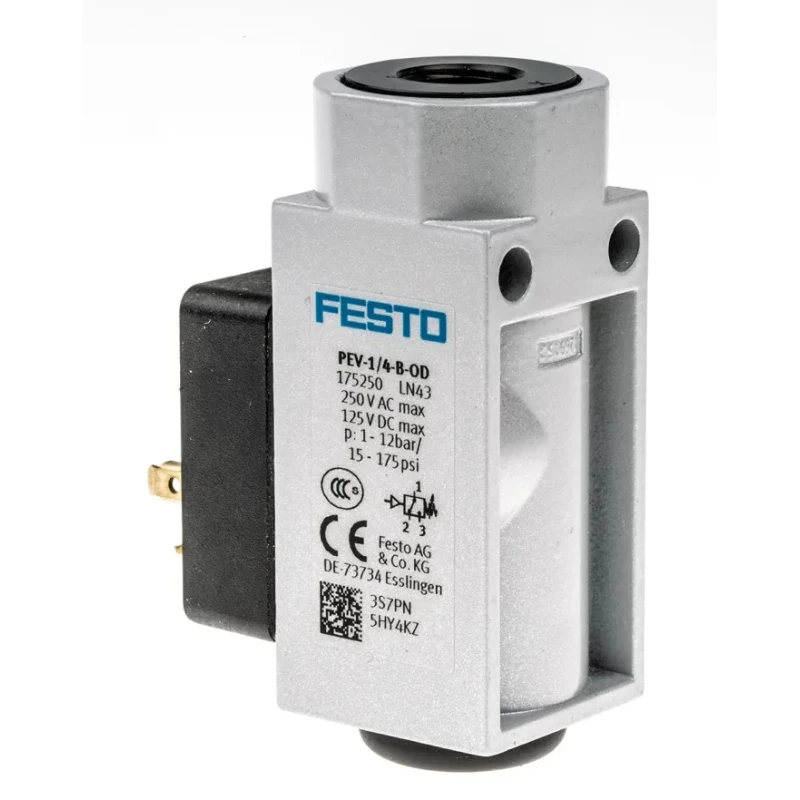

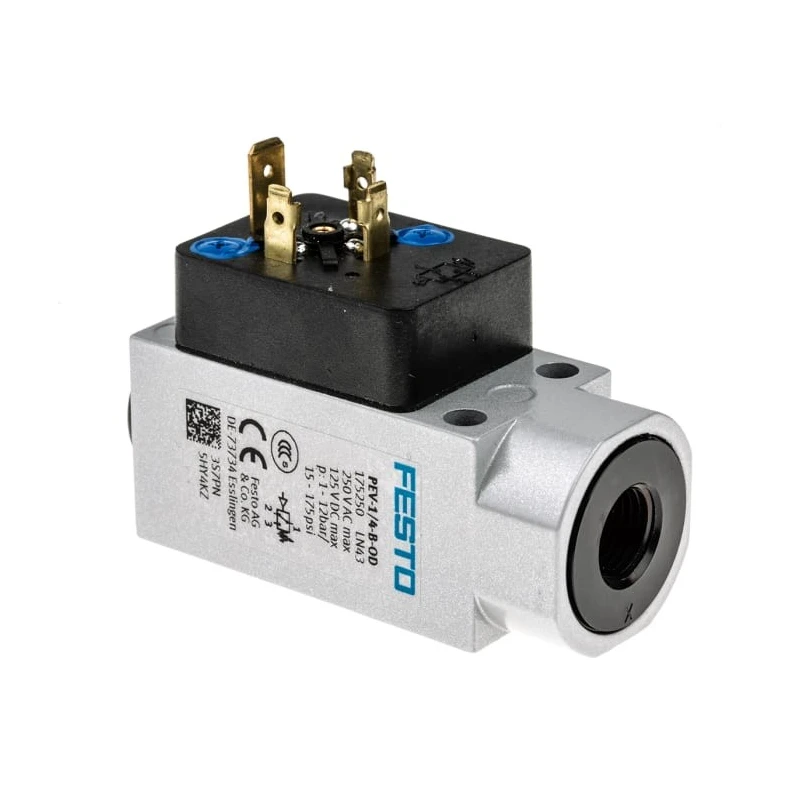

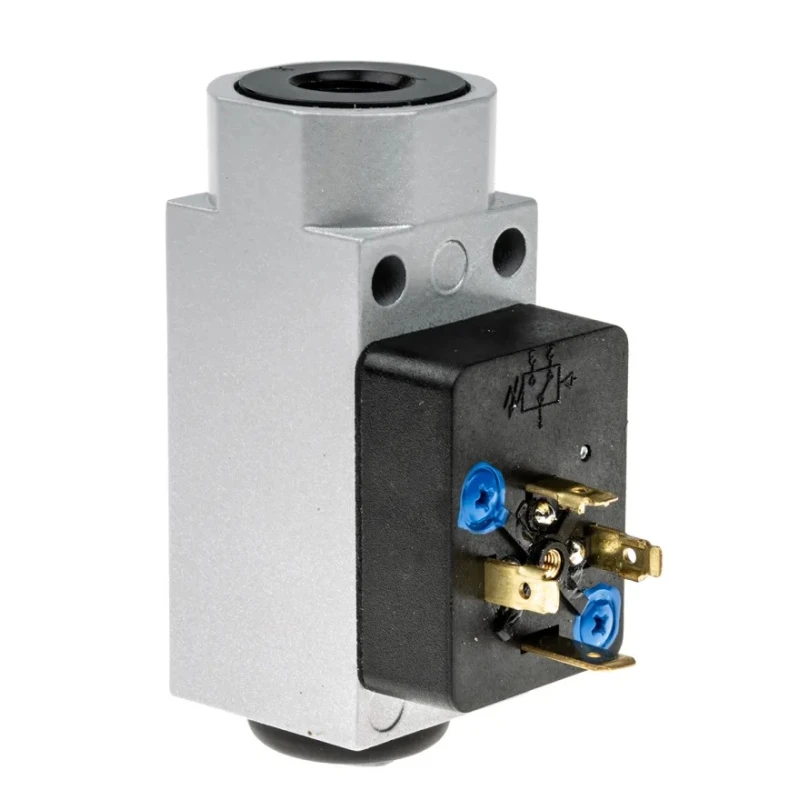

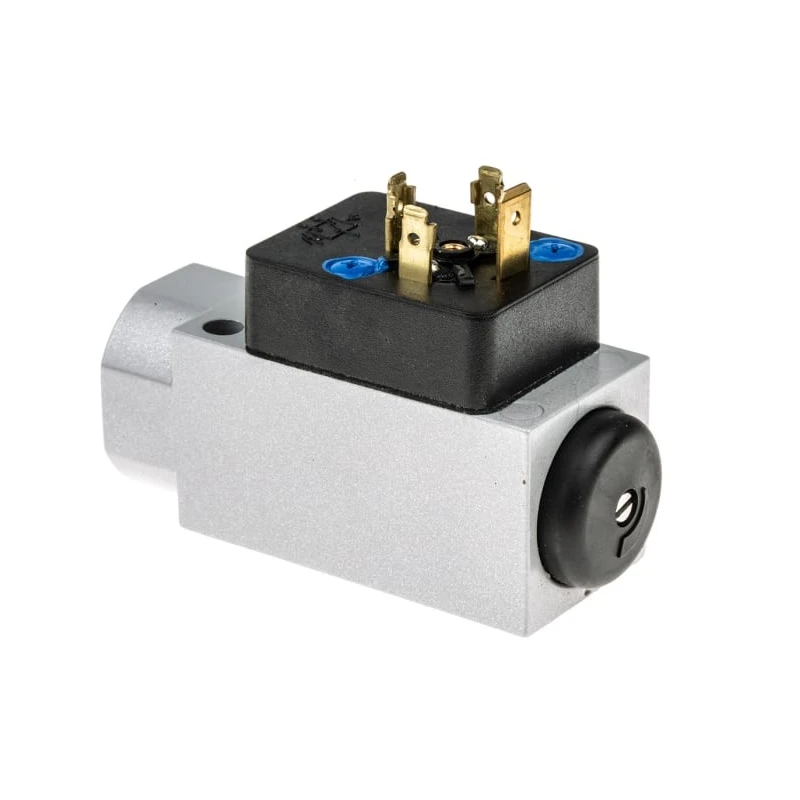

Festo Analogue Pressure Switch 1 bar to 12 bar, Port Size 1/4 inch, Voltage 125V, IP65 Rated PEV-1/4-B-OD

Festo PEV-1/4-B-OD analogue pressure switch is designed for precise control of relative pressure in pneumatic systems, operating effectively within a pressure range of 1 to 12 bar. Its port size of 1/4 inch with a G-type male thread ensures compatibility with standard pneumatic installations. The switch operates at 125V and provides an analogue output (250 V AC, 125 V DC) suitable for industrial control systems.

Encased in a durable aluminium die-cast housing, the device offers resistance to impacts and environmental ingress rated at IP65, protecting against dust and low-pressure water jets. This robustness makes it ideal for industrial pump control, HVAC systems, and oil and gas industry applications. It can withstand challenging environments with operating temperatures from -20°C to 80°C.

For reliability, the switch incorporates a corrosion-resistant silver contact and is equipped with a yellow LED indicator for real-time operation status monitoring. The through-hole mount type and male G-thread provide secure installation options. Its compact dimensions (77.3 mm height, 30 mm width, 56 mm depth) and lightweight design at 194 g minimize strain on connected equipment.

The pressure switch detects changes in pressure and actuates an internal micro-switch to open or close control circuits based on preset pressure levels, enhancing system safety and efficiency. Manufactured in Hungary, it complies with EN and ISO standards, ensuring quality and consistency.

This switch regulates flow of relative pressure in pneumatic and hydraulic systems. Robust aluminium die-cast housing offers high impact resistance and durability. IP65 rating provides protection against dust and low-pressure water jets.

Suitable for water and compressed air as operating media. Ambient temperature tolerance from -20°C to 80°C enables use in harsh environments. Includes yellow LED for easy operational status monitoring. Compact and lightweight design for easy integration.

Compliant with EN and ISO industry standards.

Ideal for industrial, HVAC, and oil and gas sectors, the Festo PEV-1/4-B-OD pressure switch ensures precise pressure monitoring and control. Browse more industrial pneumatic tools and Pressure Switches on EnvMart for reliable solutions.
