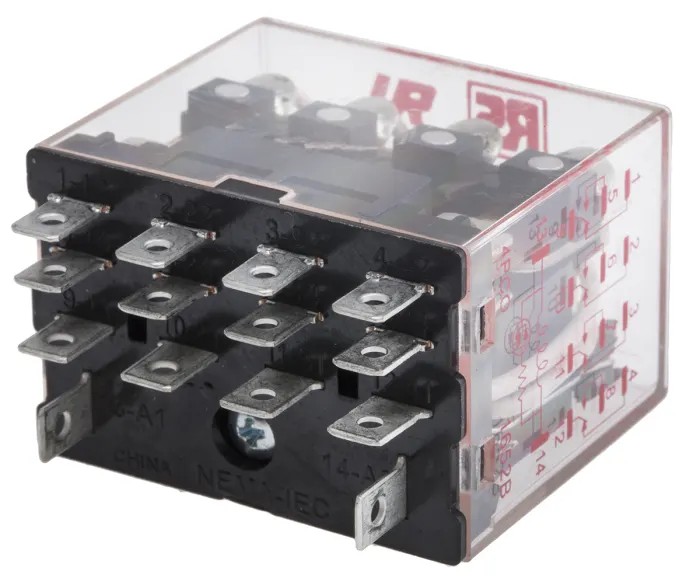

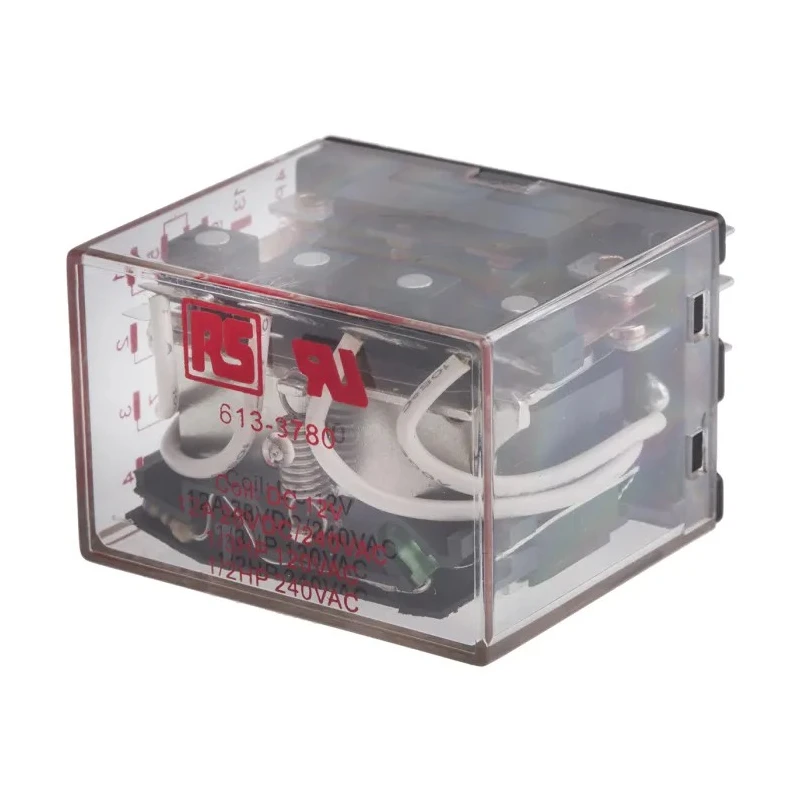

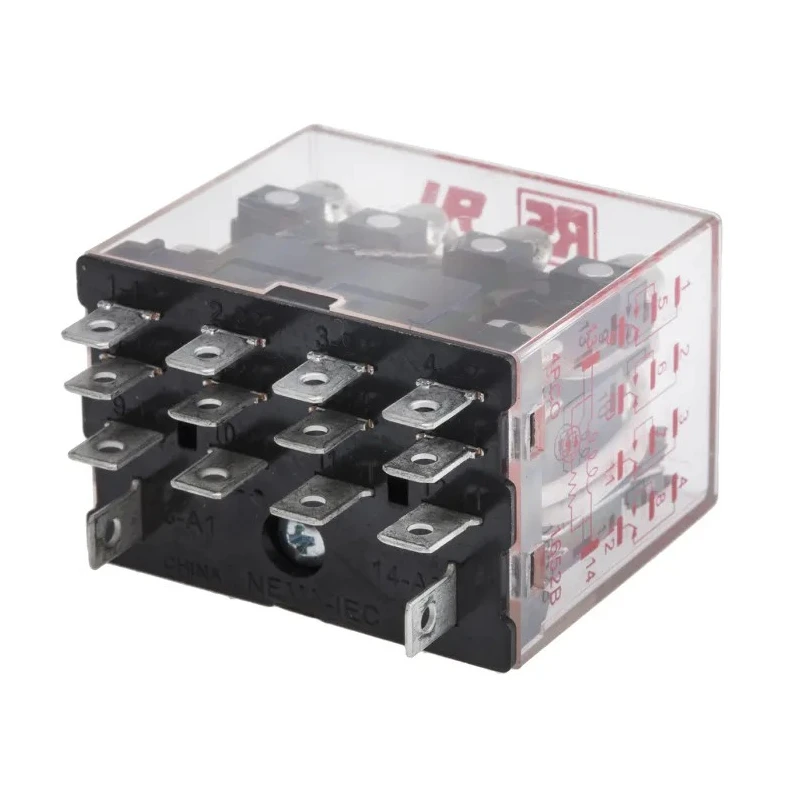

RS PRO Plug-in Power Relay 12V DC Coil 12A Switching Current 4PDT 1.5W Coil Power 40.8x27.4x35mm 613-3780

RS PRO 613-3780 is a plug-in power relay designed for reliable switching performance in demanding industrial, electrical, and automation systems. It features a 12V DC coil voltage and supports a high switching current of 12A with a 4PDT contact configuration, enabling versatile control of electrical circuits.

The relay's compact size with dimensions 40.8mm x 27.4mm x 35mm allows for easy integration into PCB designs via its PCB pin terminals and plug-in mount type. Its contact material is a silver alloy, known for low contact resistance measured at a maximum of 50mΩ, which guarantees minimal power loss and enhanced durability.

This model operates over a broad temperature range from -45°C to 70°C, making it suitable for industrial environments with varied thermal conditions. The coil resistance is precisely 96Ω, with a coil power consumption of only 1.5W, contributing to energy efficiency.

RS PRO 613-3780 relay is built to ensure longevity with a mechanical life rating of 10 million operations and an electrical life of 100,000 operations. It adheres to internationally recognized standards including UL, EN, and CE certifications for safety and reliability. Originating from China, this relay is ideal for applications in automation, industrial machinery, HVAC systems, and power distribution units.

Operates at coil voltage of 12V DC ensuring efficient switching. Four-pole double-throw (4PDT) contact configuration allows complex circuit control. Supports maximum switching current of 12A suitable for robust load handling.

Designed for plug-in mount with PCB pin terminals for secure installation. Compact dimensions measuring 40.8mm length, 27.4mm width, and 35mm height. High-quality silver alloy contacts ensure low resistance and reliability.

Coil resistance rated at 96Ω and coil power consumption is 1.5W. Wide operating temperature range from -45°C to 70°C for industrial durability. Mechanical lifespan of 10 million operations and electrical lifespan of 100,000 operations.

Compliance with UL, EN, and CE standards confirms quality and safety.

This RS PRO power relay is an excellent choice for industrial, laboratory, construction, HVAC, manufacturing, and commercial applications requiring dependable relay switching capabilities. Explore more Power Relays and related components at EnvMart.
