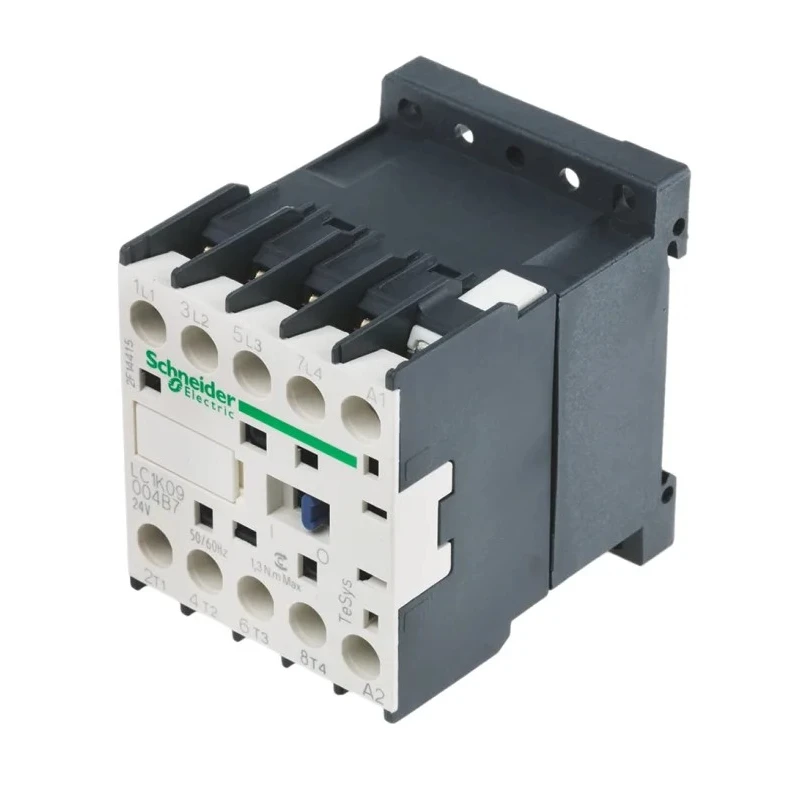

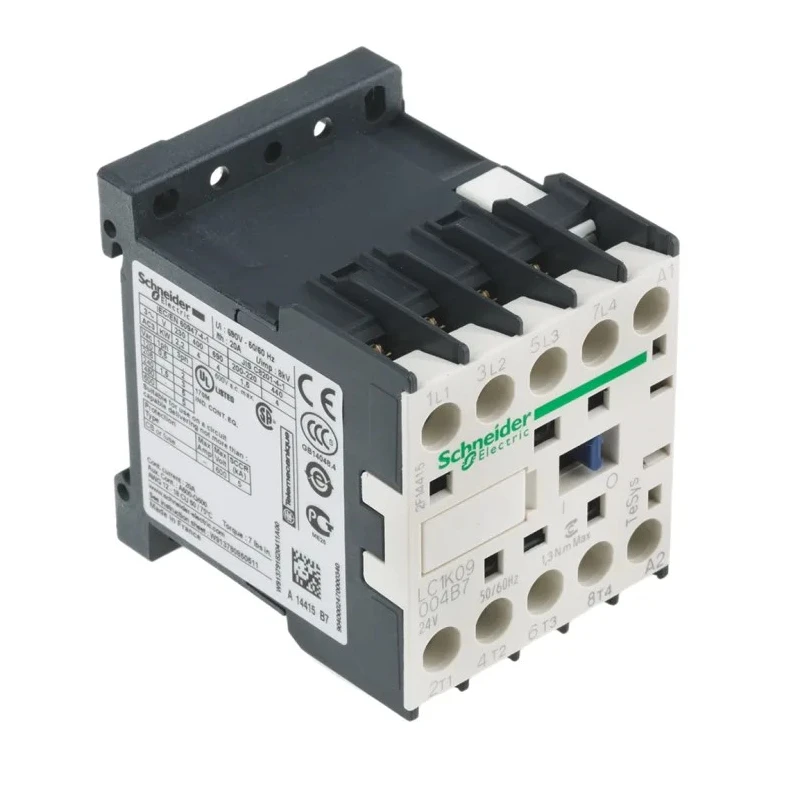

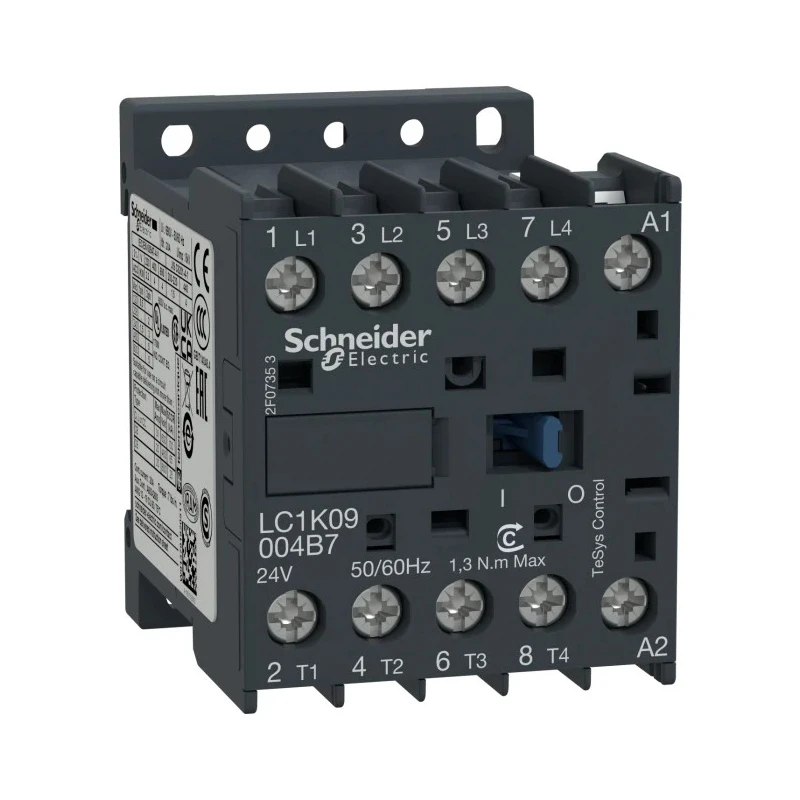

Schneider Electric LC1K TeSys K Series Contactor 24V AC Coil, 4-Pole, 9A, 1.3W Power, 690V AC LC1K09004B7
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control |
| Length | 58mm |
| Model | LC1K09004B7 |
| Depth | 57mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1K |
| Power Rating | 1.3W |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V ac |
| Normal State Configuration | 4 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 9A |
| Operational Current Ie | 20A |
| Control Circuit Voltage Uc | 24V ac |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 4 |
| Schneider Electric TeSys K Contactor, 24V ac Coil, 4-Pole, 20 A, 4 NO, 690VBrand | Schneider Electric |
Key Features
- Operates at 24V AC coil voltage providing reliable switching.
- Supports a contact current of 9 A with 690V AC contact voltage rating.
- Equipped with 4 normally open contacts (4 NO) for motor control applications.
- Power rating of 1.3 W ensures efficient energy use during operation.
- Compact dimensions of 58mm length, 45mm width, and 57mm depth for DIN rail mounting.
- Designed to operate in temperatures ranging from -25°C to 50°C.
- Screw terminal type provides secure and durable wire connections.
- Mechanical durability up to 10 million cycles for extended service life.
Product Description
Schneider Electric LC1K09004B7 is a high-performance contactor from the TeSys K series, featuring a 24V AC coil and a 4-pole configuration rated for motor control applications. This contactor is designed for switching electrical motors and loads efficiently and safely in industrial automation, HVAC systems, food manufacturing, and oil and gas industries.
With a contact current rating of 9 A at 690V AC and a power rating of 1.3W coil consumption, it enables reliable operation under demanding conditions. The device mounts easily on DIN rails and uses screw terminals to hold wires securely, reducing the need for maintenance retightening. It performs reliably within an ambient temperature range of -25°C to 50°C, making it suitable for harsh environments.
This contactor ensures quick switching with an operating time of 10 to 20 milliseconds, supporting up to 3,600 switching cycles per hour. Its mechanical durability supports up to 10 million operational cycles, ensuring long service life. Designed for disassembly and lower environmental impact, it contributes to sustainable industrial solutions.
Operates with 24V AC coil voltage for effective motor control switching. Supports 4 NO contacts rated for 9A contact current to handle medium loads. Suitable for industrial automation, HVAC, oil and gas, and food manufacturing.
Compact and lightweight dimensions facilitate easy installation on DIN rails. Complies with multiple safety and quality standards including IEC, UL, RoHS, and CSA. Mechanical life of up to 10 million cycles ensures dependable long-term performance.
Wide operating temperature range suits harsh industrial environments. Screw terminal type guarantees secure electrical connections. Optimized for minimal carbon footprint and designed for easy disassembly.
This Schneider Electric Contactor is a reliable component for motor control and automation systems. Explore the full range of Schneider Electric products on EnvMart to meet your industrial and commercial electrical equipment needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a coil voltage of 24V AC, making it suitable for various motor control applications.
The contactor supports a maximum contact current of 9 A, allowing it to handle medium loads effectively.
It has a contact voltage rating of 690V AC, suitable for industrial motor control applications.
This model features a 4-pole configuration, equipped with 4 normally open contacts (4 NO).
The dimensions are 58mm in length, 45mm in width, and 57mm in depth, allowing for compact installation.
It has a power rating of 1.3 W, ensuring efficient energy use during operation.
This contactor is designed to operate within a temperature range of -25°C to 50°C, suitable for harsh environments.
It uses screw terminals, which provide secure and durable wire connections.
The mechanical durability is rated for up to 10 million cycles, ensuring a long service life.
It complies with multiple safety and quality standards including IEC, UL, RoHS, and CSA.
This model is designed for DIN rail mounting, facilitating easy installation.
It is suitable for motor control applications in industrial automation, HVAC systems, food manufacturing, and oil and gas industries.
