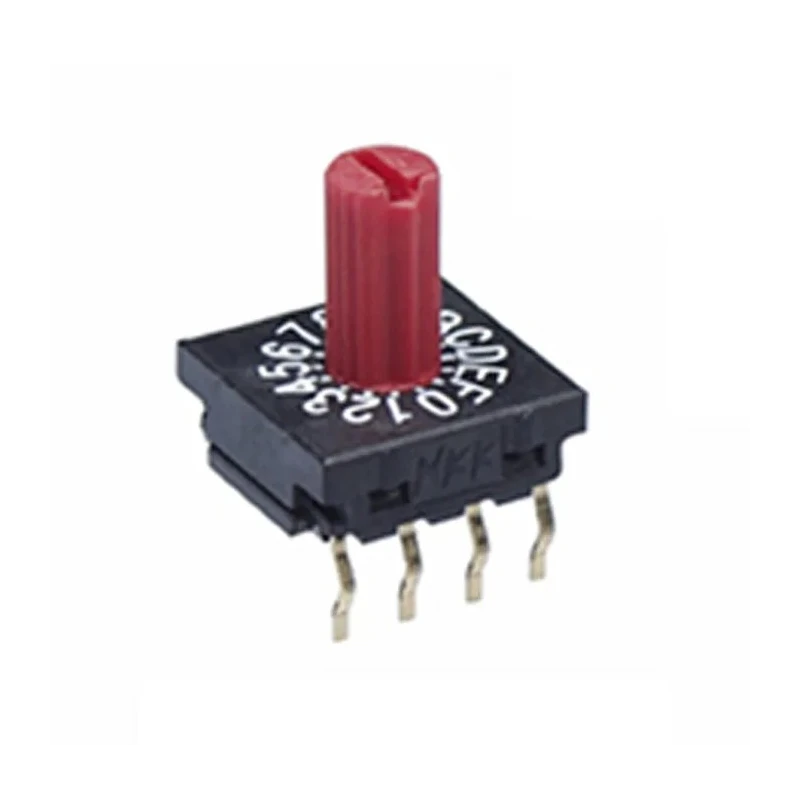

NKK Switches Rotary Coded DIP Switch Surface Mount, Through Hole Solder Metal Shaft Plastic Shaft Dial Actuator FR01KR16P-S

NKK Switches FR01KR16P-S is a rotary coded DIP switch designed for precise and reliable code selection in compact electronic and industrial automation devices. Featuring a robust metal shaft and plastic shaft dial actuator, it supports both surface mount and through hole soldering to adapt to different printed circuit board assembly techniques.

The FR01 series ensures accurate settings through cam actuated movable gold contacts and crimped terminals that provide excellent electrical connectivity and durability. Colour keyed actuators allow for trouble-free visual identification and code setting, improving maintenance efficiency.

Designed to be low profile, this rotary switch enables high-density mounting and close stacking of PC boards, making it an ideal choice for space-constrained applications. Compliance with UL94V-0 standards adds a safety dimension by providing flame-retardant properties.

Typical applications for the FR01KR16P-S include industrial control systems, automation equipment, and electrical devices requiring a reliable coded rotary switch mechanism. The device is made in China and is built for new deployment in demanding environments.

Compact, low profile design enabling high-density mounting of PC boards. Surface mount and through hole soldering for versatile PCB assembly. Metal shaft and plastic shaft dial actuator options for durability and ease of use.

Cam activated movable gold contacts ensure accurate switch operation. Colour-keyed actuator allows visual differentiation and trouble-free code setting. Crimped terminals and straight PC terminals for secure electrical connections.

UL94V-0 flame retardant standard compliance ensures safety. Suitable for electrical, automation, and industrial control systems.

This Rotary Coded DIP Switch is part of the extensive FR01 series by NKK Switches, designed for precision and durability in electronic and industrial applications. Browse more rotary switches and coded DIP switches at EnvMart for your automation and electrical equipment needs.
