NKK Switches SPST On-Off On-Off Rocker Switch Panel Polyamide Housing IP66 JWL11RBA

Free Delivery in India | Lowest Global Shipping Charges

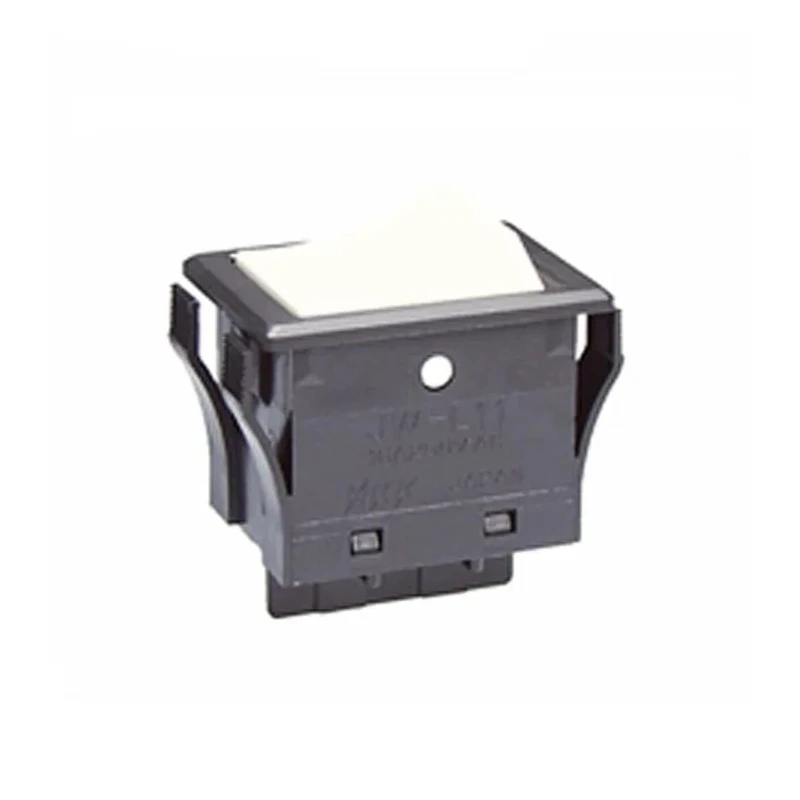

NKK Switches SPST On-Off On-Off Rocker Switch Panel Polyamide Housing IP66 JWL11RBA

Name: NKK Switches SPST On-Off On-Off Rocker Switch Panel Polyamide Housing IP66 JWL11RBA
Brand: NKK Switches
SKU: 197490
Price: 5.92 USD
Availability: InStock



Category Rocker Switch Brand NKK Switches Condition New

Specifications

Country of Origin	China
Brand	NKK Switches
Model	JWL11RBA
IP Rating	IP66
Mount Type	Panel
Housing Material	Polyamide
Series	JW
Maximum Operating Temperature	70°C
Contact Configuration	SPST
Switch Configuration	On-Off
Minimum Operating Temperature	-25°C
Panel Cutout Size	20.5 x 29.5 mm
Terminal type	Quick Connect, Solder Lug
Standards/Approvals	UL, VDE, RoHS, BS, CSA, CE
Switch Operation	On-Off
Actuator Colour	White
Contact DC Voltage	28V dc
Actuator Style	Rectangular
Switch Contact Current	16A

Key Features

The switch features SPST contact configuration for simple On-Off operation.
The actuator is white rectangular style, providing clear user feedback.
Panel cutout size is precisely 20.5 x 29.5 mm for easy installation.
Operating temperature range is from -25°C to 70°C ensuring reliability in varied conditions.
Rated contact DC voltage is 28V for safe electrical control.
This rocker switch is built for robustness and dust resistance, ideal for industrial and commercial applications.
It meets multiple international standards including UL, VDE, RoHS, BS, CSA, and CE.
Non-illuminated design reduces power consumption and complexity.

Product Description

NKK Switches JWL11RBA is a SPST On-Off On-Off rocker switch panel engineered with high-quality polyamide housing and designed for reliable electrical switching applications. It supports a contact current of 16A and is rated with IP66 ingress protection, making it suitable for harsh environments requiring dust and water resistance.

The rectangular white actuator offers clear tactile feedback with a panel cutout dimension of 20.5 x 29.5 mm to fit standard electrical panels efficiently. Terminal connections include quick connect and solder lug types, facilitating versatile installation methods.

Operating temperature spans from -25°C to 70°C, ensuring stable performance across a wide range of industrial and commercial environments. The switch is certified to global standards such as UL94V-0, IEC60529 (similar to NEMA 4 and 6), and holds UL, VDE, RoHS, BS, CSA, and CE approvals which assure quality and safety.

This robust switch is designed with external insulating barriers and epoxy sealed terminals to prevent contamination, enhance longevity, and handle light contact welds effectively. The JW series is known for its TV-8 rating, allowing it to handle high electrical capacity and large inrush currents appropriately.

The switch is ideal for use in electrical panel controls, machinery, automation equipment, and electrical appliances requiring reliable On-Off switching. It provides dust-resistant construction and heat-resistant resin material housing to withstand demanding industrial conditions.

Designed for easy mounting on panels with precise cutouts and secured through reliable terminal connections. Non-illuminated switch reduces unnecessary power consumption while maintaining operational clarity. Manufactured in China with quality controls aligning to international manufacturing standards.

Explore comprehensive options for Rocker Switches and panels in EnvMart to complement your industrial electrical systems with trusted quality and certification standards.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The rocker switch features an SPST (Single Pole Single Throw) contact configuration for simple On-Off operation.

The maximum operating temperature for this model is 70°C, allowing it to perform reliably in various conditions.

This rocker switch has an IP66 rating, providing protection against dust and water ingress, making it suitable for harsh environments.

The required panel cutout size for this switch is 20.5 x 29.5 mm, ensuring easy installation in standard electrical panels.

The rated contact DC voltage for this rocker switch is 28V, ensuring safe electrical control.

This model supports a contact current of 16A, suitable for various electrical applications.

The switch supports quick connect and solder lug terminal types, providing versatile installation options.

It meets multiple international standards including UL, VDE, RoHS, BS, CSA, and CE, ensuring quality and safety compliance.

The minimum operating temperature for this switch is -25°C, allowing it to function in cold environments.

The actuator is a rectangular style and is colored white, providing clear user feedback during operation.

The housing of this rocker switch is made from polyamide, which contributes to its robustness and resistance to environmental factors.

This rocker switch is ideal for use in electrical panel controls, machinery, automation equipment, and electrical appliances requiring reliable On-Off switching.
