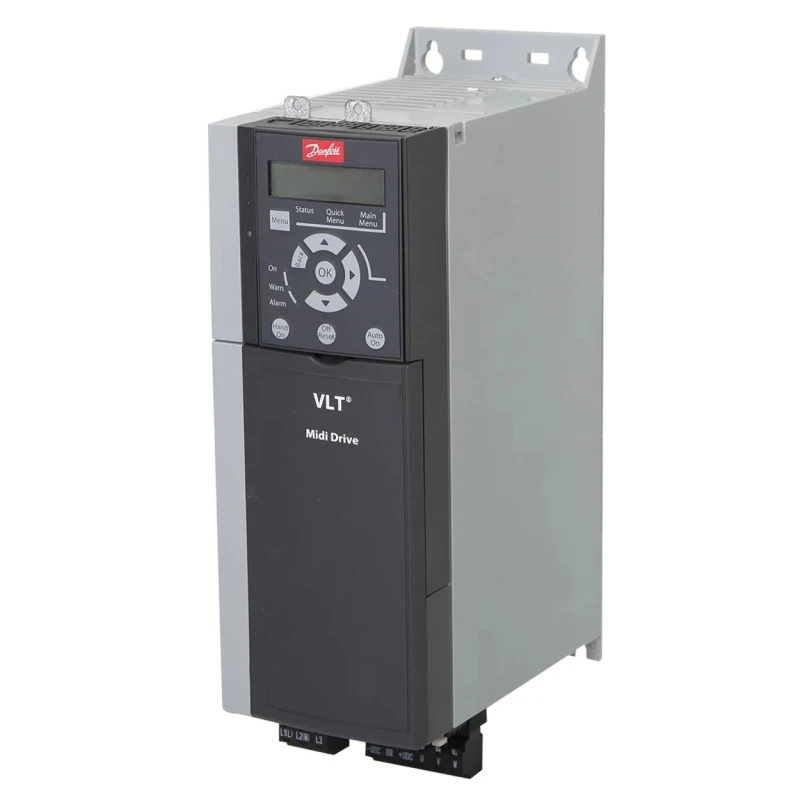

Danfoss Inverter Drive 7.5 kW 3 Phase Variable Frequency Drive Panel Mount FC280

Free Delivery in India | Lowest Global Shipping Charges

Danfoss Inverter Drive 7.5 kW 3 Phase Variable Frequency Drive Panel Mount FC280

Name: Danfoss Inverter Drive 7.5 kW 3 Phase Variable Frequency Drive Panel Mount FC280
Brand: Danfoss
SKU: 197308
Price: 2751.66 USD
Availability: InStock



Category Inverter Drives Brand Danfoss Condition New

Specifications

Country of Origin	Denmark
Brand	Danfoss
Model	FC280
IP Rating	IP20
Drive Type	Variable Frequency
Mount Type	Panel
Overall Length	115mm
Series	FC280
Overall Width	168mm
Power Rating	7.5kW
Maximum Operating Temperature	+55°C
Output Frequency	500Hz
Interfaces	USB port
Number of Phases	3
Maximum Output Current	15.1A
Standards/Approvals	CE, cUL Listed, EMC Compliant, RCM (C-Tick), TUV, UL Listed
Overall Depth	272.5mm
Minimum Supply Voltage	400V ac
Better World Claim	Saves Energy
Compatible Motor Type	Induction Motor

Key Features

Compact panel mount design ensures easy installation and space saving.
Compatible with induction motors for versatile industrial use.
Offers a maximum output current of 15.1 A at 400V AC supply voltage.
Features integrated PID controller for precise motor control.
Supports multiple fieldbus communications including Profibus and Profinet.
Includes pluggable connectors, integrated DC choke, and RFI filter for improved performance.
Operates effectively up to +55°C ambient temperature.
Designed to meet CE, UL, TUV, and EMC compliance standards.

Product Description

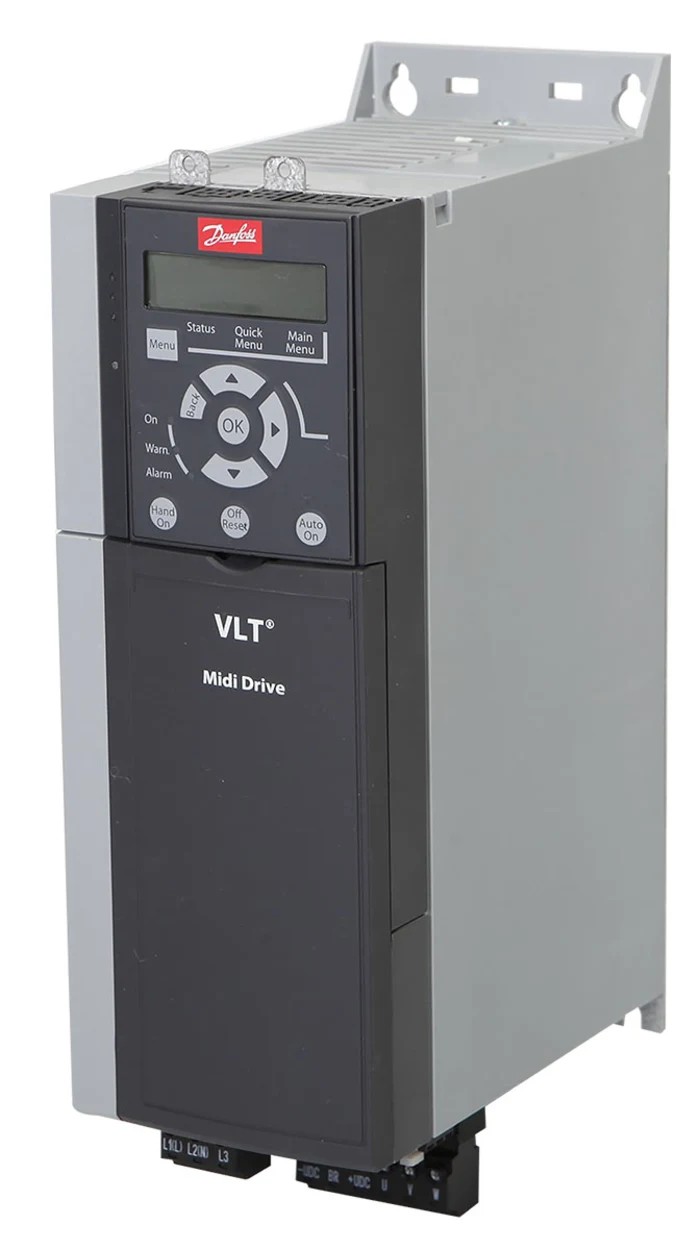

Danfoss FC280 Inverter Drive is a new, advanced 7.5 kW variable frequency drive designed to control 3 phase induction motors with high efficiency and reliability. It features a compact panel mount design that enables quick and space-saving installation for industrial automation systems.

The drive operates on a 400V AC supply voltage and delivers up to 15.1 A output current, with an output frequency capability of 500 Hz, allowing precise motor speed control suitable for diverse industrial applications including manufacturing, HVAC, and process automation.

This FC280 series inverter drive is equipped with a built-in PID controller and versatile fieldbus communication options such as Profibus, Profinet with dual port, Ethernet/IP dual port, CANopen, and standard Modbus RTU. The device improves motor performance with pluggable connectors, an integrated DC choke, and RFI filter to reduce electrical noise and increase drive longevity.

Safety is enhanced with dual-channel Safe Torque Off (STO) functionality, meeting rigorous safety standards including CE, UL, TUV, cUL, EMC compliance, and RCM certification. The drive sustains operation in environments with temperatures up to +55°C and carries the Better World energy-saving claim, making it an environmentally conscious choice.

The drive is delivered without a control panel, which can be purchased separately if required. The overall dimensions are 115 mm length, 168 mm width, and 272.5 mm depth, making it suitable for compact control panels. The product is manufactured in Denmark, ensuring high European quality standards.

Industries such as industrial automation, manufacturing, HVAC control, and water treatment can benefit from the reliable performance and energy efficiency of the Danfoss FC280 inverter drive. Compatible with standard AC induction motors, it offers a cost-effective retrofit option with strong control capabilities and functional safety features.

Compact panel mount design for space-saving installation. Supports multiple industrial communication protocols. Energy-saving technology helping reduce operational costs. High safety integrity with dual-channel STO functionality.

Robust operation across a wide temperature range up to +55°C. Easy integration with USB port for PC connection and programming. Complies with international safety and EMC standards. Manufactured in Denmark ensuring high quality standards.

Suitable for various industrial and HVAC applications. Delivered without control panel for flexible configuration. Explore the Danfoss brand and Inverter Drives category on EnvMart for advanced motor control solutions that combine performance, safety, and energy efficiency.
