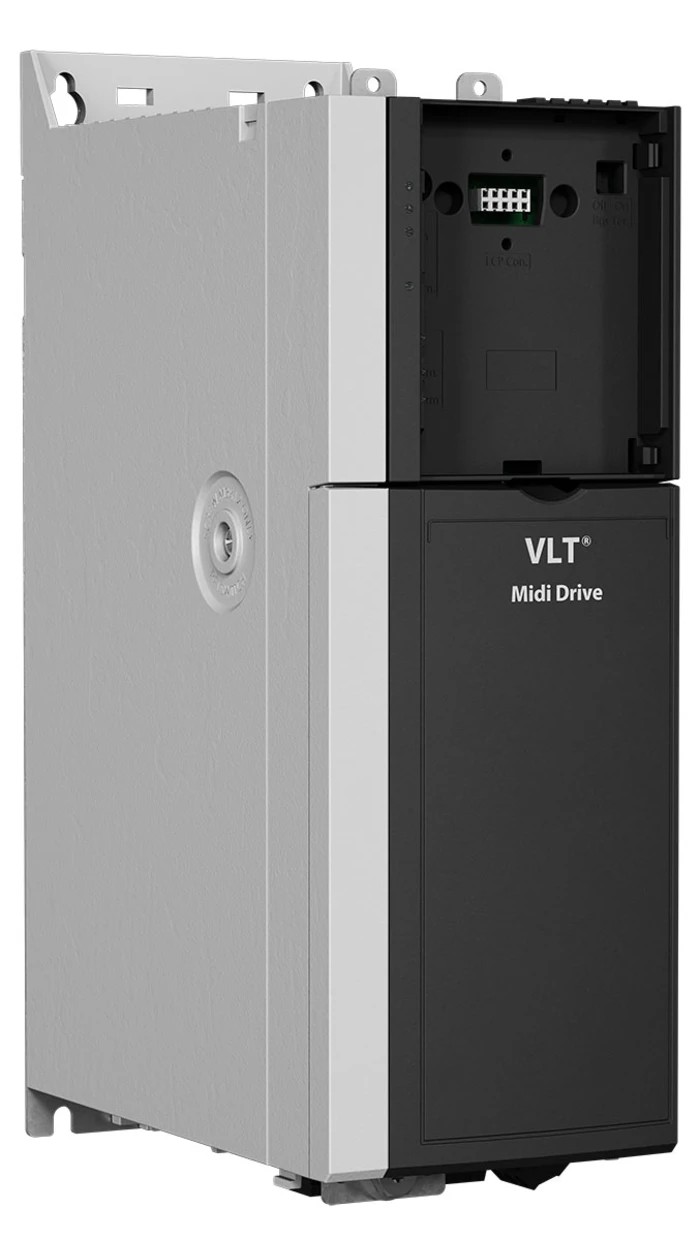

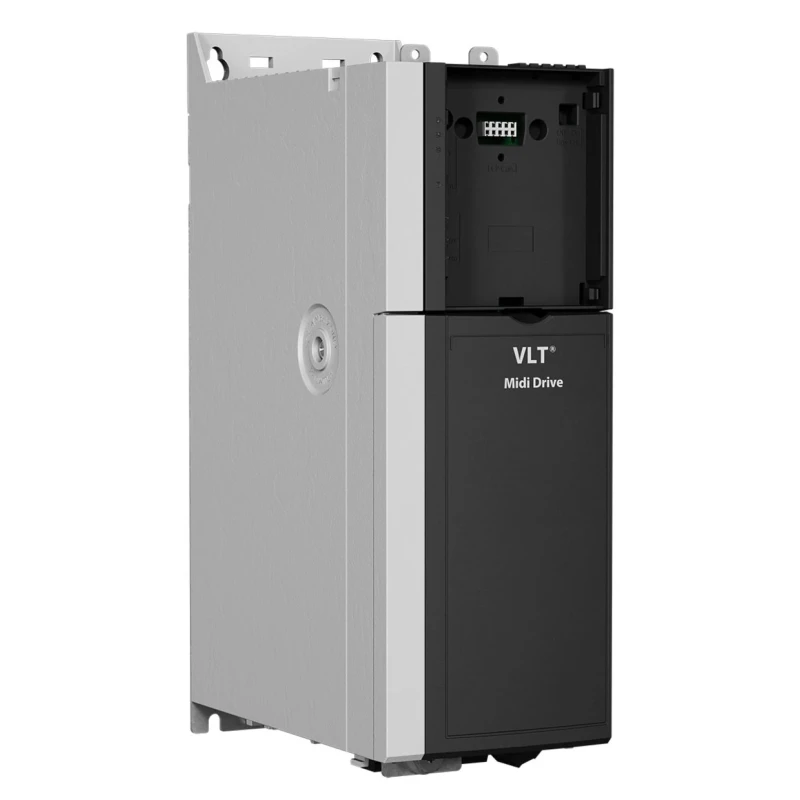

Danfoss Inverter Drive 5.5 kW 3 Phase Panel Mount Variable Frequency FC280 Series 400V AC 11.2A

Danfoss FC280 Inverter Drive 5.5 kW 3 Phase is a panel mounted variable frequency AC drive specifically engineered for induction motors. Operating at 400V AC with a maximum output current of 11.2A, it supports output frequencies up to 500Hz for precise motor control in industrial environments such as manufacturing, HVAC, and process automation.

Featuring a compact design, the drive allows for quick installation and set-up without a control panel included, providing flexibility to add an optional LCD control panel. The integrated USB port facilitates easy programming and monitoring via PC connection. Communication options are extensive with Profibus, Profinet with dual port, Ethernet/IP dual port, CANopen, Modbus RTU, and FC Protocol as standard, enabling seamless integration into various automation systems.

Designed for energy efficiency, the FC280 series supports functional safety features including dual-channel Safe Torque Off (STO). Its IP20 rating and panel mount form factor suit controlled environments. The drive operates reliably up to +55°C ambient temperature.

The device meets multiple international standards including CE, cUL Listed, EMC compliance, RCM (C-Tick), TUV, and UL Listed certifications. Dimensions are 90mm length, 168mm width, and 272.5mm depth, facilitating compact installations. This model is manufactured in Denmark, ensuring high-quality build standards.

Compact design enables easy and fast installation. Supports a wide output frequency range up to 500Hz. Equipped with integrated USB port for easy PC connection. Offers multiple fieldbus communication options including Profibus, Profinet, Ethernet/IP, and CANopen.

Includes energy-saving features contributing to sustainability. Supports programmable digital and analog inputs and outputs. Complies with multiple standards such as CE, TUV, UL, cUL, EMC, and RCM. Panel mount type with IP20 protection rating.

Designed for maximum operating temperature of +55°C. Dimensions: 90mm length, 168mm width, 272.5mm depth. Made in Denmark, ensuring high manufacturing quality.

Suitable for industrial automation systems, electrical motor control, manufacturing process automation, HVAC applications, and other variable frequency drive uses. Explore EnvMart's wide range of Inverter Drives for high-performance motor control solutions.
