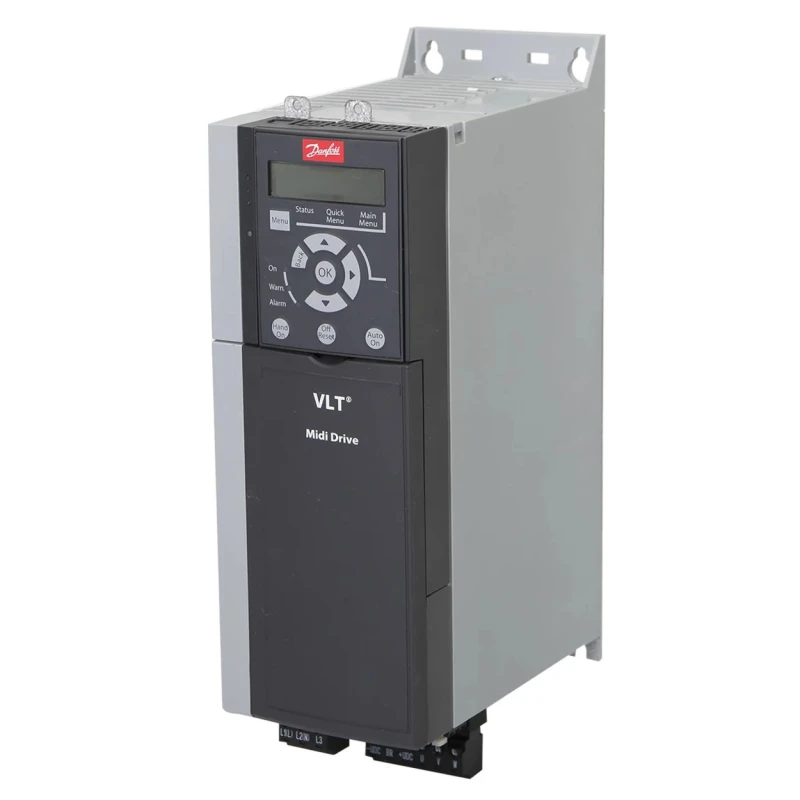

Danfoss Inverter Drive 550 W 3 Phase Variable Frequency Drive Panel Mount FC280

Danfoss FC280 model inverter drive is a robust and compact variable frequency drive rated at 550 W, designed to provide reliable and efficient motor control for three-phase AC induction motors operating at 400 V AC. This panel-mounted drive measures 168 mm in width, 75 mm in length, and 210 mm in depth, offering a space-saving solution for industrial automation systems.

Engineered for demanding industrial environments, it features integrated DC choke, an RFI filter, and dual-channel Safe Torque Off (STO) functional safety to ensure secure operations. The drive includes an integrated PID controller that allows precise process control and a USB port enabling easy PC connection for programming and monitoring.

The FC280 drive offers flexible fieldbus communication with options including Profibus, Profinet with dual port, Ethernet/IP with dual port, CANopen, and Modbus RTU as standard, increasing versatility for various automation setups. It also supports programmable digital and analog inputs and outputs for tailored control schemes.

This drive series complies with multiple international standards such as CE, cUL Listed, EMC Compliant, RCM (C-Tick), TUV, and UL Listed, ensuring safety and performance across diverse industrial markets.

Its maximum operating temperature is +55°C, making it suitable for use in typical industrial ambient conditions. The protective IP20 rating safeguards components against dust ingress. Delivered without a control panel, additional control panels are available separately to match different operational needs.

This drive is part of Danfoss's Better World product portfolio, designed to save energy and reduce carbon footprint while optimizing industrial motor control. The product is manufactured in Denmark, reflecting high-quality engineering standards.

The compact FC280 series inverter drive supports a power rating of 550 W. Designed for three-phase motors with a maximum output current of 1.6 A. Includes integrated features like PID controller, USB connectivity, and flexible fieldbus communication options.

Panel mounting design with an IP20 rating for protection against solid particles. Supports output frequency up to 500 Hz with a maximum supply voltage of 400 V AC. Compatible with induction motors and suitable for various industrial applications requiring variable frequency control.

Equipped with integrated DC choke, RFI filter, and dual-channel STO functional safety for enhanced reliability. Environmentally friendly with Better World certification, promoting energy savings. Explore more Danfoss industrial automation and Inverter Drives on EnvMart for reliable and energy-efficient motor control solutions tailored to your specific application needs.
