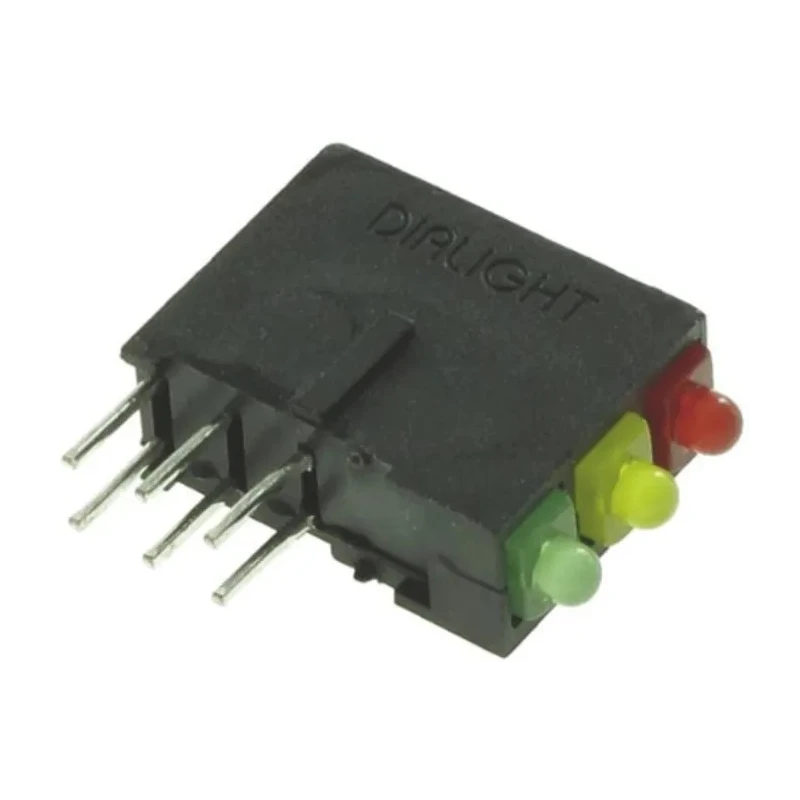

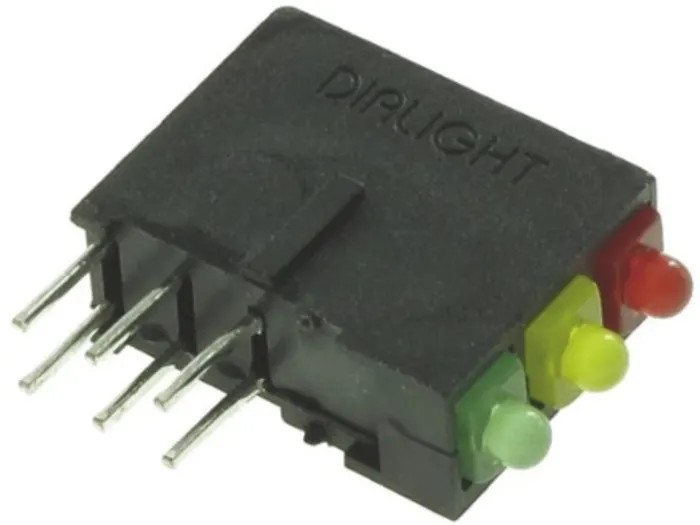

Dialight Green, Red, Yellow Right Angle PCB LED Indicator 5 mm (T-1 3/4), 3 LEDs 2.5 V Multicolour 570-0100-132F
Specifications
| Country of Origin | India |
|---|---|
| Brand | Dialight |
| Length | 14.62mm |
| Model | 570-0100-132F |
| Mount Type | Through Hole |
| Number Of Leds | 3 |
| Maximum forward current | 30mA |
| Viewing angle | 38 ° |
| Sub Type | Multicolour |
| Power Dissipation | 80mW |
| Lens Colour | Red, Green |
| Standards/Approvals | RoHS |
| LED Colour | Green, Red, Yellow |
| Number of Pins | 6 |
| Lens Finish | Diffused |
| Minimum Supply Voltage | 2.5V |
| LED Material | GaP, GaAsP |
| Multicolour/Single Colour | Multicolour |
| LED Orientation | Right Angle |
| LED Size | 5 mm (T-1 3/4) |
| Red/yel/grn DIN PCB mount LED,5700100132Brand | Dialight |
Key Features
- This PCB LED indicator features green, red, and yellow LED colours.
- The indicator utilizes three 5 mm (T-1 3/4) LEDs set at a right angle for compact PCB mounting.
- It supports through-hole mounting with a black plastic housing enhancing visibility and durability.
- The device operates with a maximum forward current of 30 mA and a minimum supply voltage of 2.5 V.
- The LEDs offer a 38° viewing angle and have power dissipation of 80 mW.
- The lens is diffused with red and green lens colours for clear signal indication.
- Constructed using GaP and GaAsP materials, it complies with RoHS standards.
- Suitable for use in electronic components, power, and connectors applications requiring multicolour PCB LED indicators.
Product Description
Dialight 570-0100-132F is a high-quality Green, Red, Yellow Right Angle PCB LED Indicator designed with three 5 mm (T-1 3/4) LEDs arranged within a black plastic housing. The tri-level multicolour indicator provides a compact and reliable visual signal for electronic board applications, featuring through-hole mounting compatibility and right angle LED orientation to save PCB space.
This PCB LED Indicator supports a maximum forward current of 30 mA and operates from a minimum supply voltage of 2.5 V, making it suitable for low voltage electronic circuits. The device features a 38° viewing angle with an 80 mW power dissipation rating, ensuring efficient and clear LED illumination.
With diffused lens finishes in red and green, the unit uses GaP and GaAsP LED materials to deliver robust multicolour visual indication. It fully complies with RoHS regulations, ensuring it meets environmental safety standards.
The black plastic housing enhances contrast for clear visibility while protecting the LEDs. This indicator is ideal for use in various industrial electronic applications, including power and connector systems requiring clear multi-state signaling and PCB mounting solutions.
This product is well suited for electronic manufacturing, laboratory instrumentation, industrial control panels, and other commercial applications. The tri-level 3 LED structure enables distinct multi-colour indication states without occupying excessive PCB area.
The indicator's right angle orientation allows optimal positioning in compact board designs. It is designed for long-term durability with reliable thermal and electrical performance within specified parameters.
Dialight products are trusted globally for their performance and compliance. Explore EnvMart's Electronics Components category to find compatible LED indicators from trusted brands including Dialight.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for this model is 30 mA.
This LED indicator requires a minimum supply voltage of 2.5 V for operation.
The length of this model is 14.62 mm.
The LEDs in this indicator have a viewing angle of 38°.
This model features three LEDs arranged in a multicolour configuration.
It supports through-hole mounting, making it suitable for PCB applications.
The LEDs are constructed using GaP (Gallium Phosphide) and GaAsP (Gallium Arsenide Phosphide) materials.
The power dissipation rating for this LED indicator is 80 mW.
Yes, this model complies with RoHS standards, ensuring it meets environmental safety regulations.
The LEDs emit green, red, and yellow colors, providing multicolour indication.
The lens finish is diffused, which enhances visibility of the emitted light.
This model has a total of 6 pins for connection.
