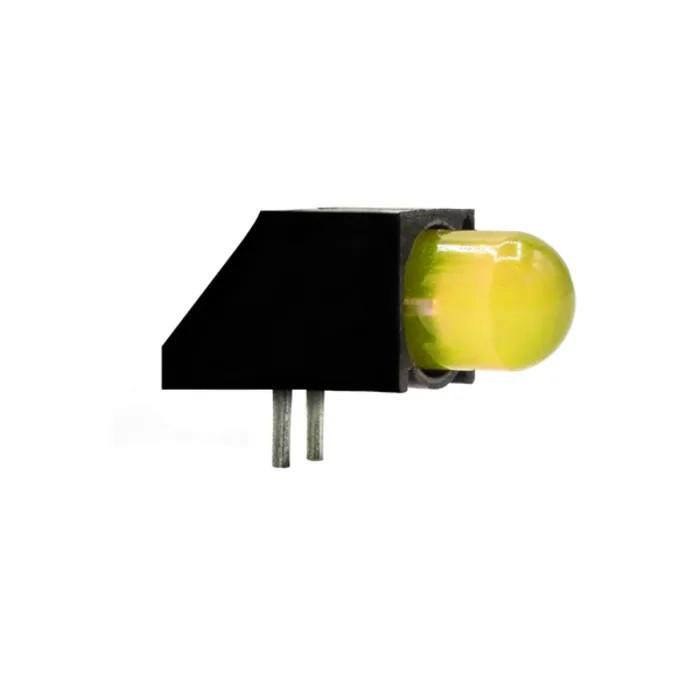

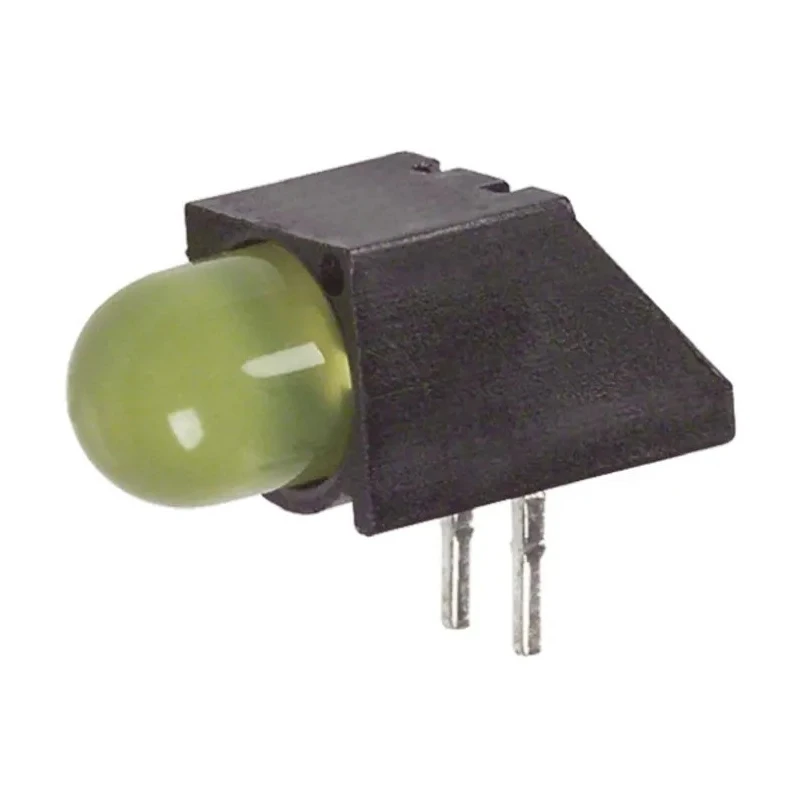

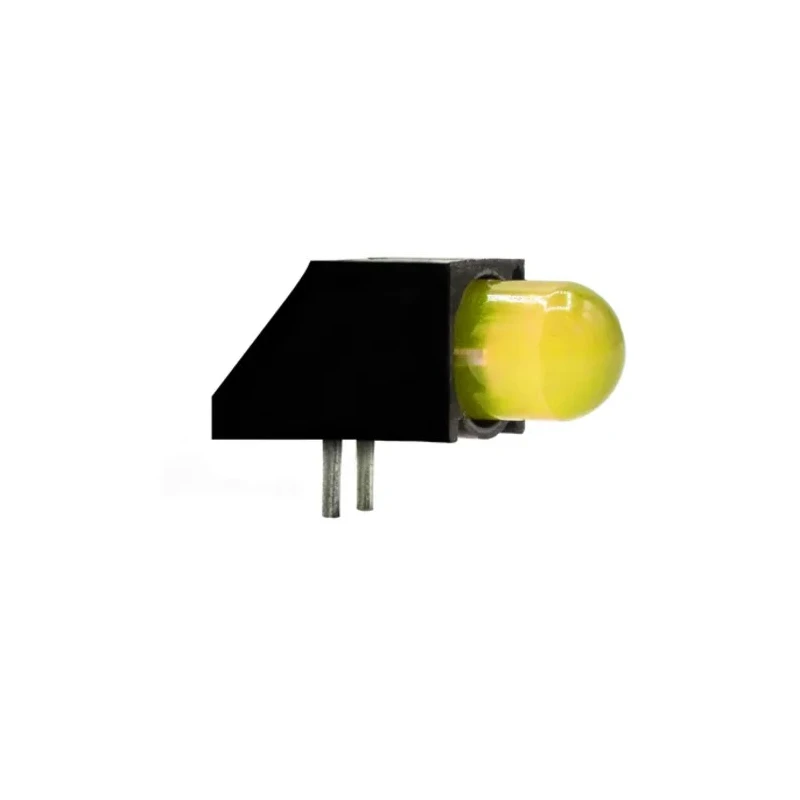

Dialight Yellow Right Angle PCB LED Indicator 5 mm (T-1 3/4), 1 LED, 2.6 V Single Colour 550-2307F

Dialight 550-2307F is a Yellow Right Angle PCB LED Indicator designed for use in electronic components requiring visual signal indication on printed circuit boards. Operating at a minimum supply voltage of 2.6 volts, this indicator features a single 5 mm Through Hole LED with a diffused yellow lens for uniform brightness and clarity.

The right-angle LED orientation and compact length of 13.85 mm make it ideal for applications where space constraints exist. Its black plastic housing with a sloped back provides enhanced contrast against PCB surfaces and includes housing standoffs facilitating easier PCB cleaning and assembly.

With a maximum forward current of 30 mA and power dissipation of 80 mW, it ensures reliable and energy-efficient operation. The luminous intensity of 6.3 millicandelas offers clear visibility, making it suitable for industrial, commercial, and laboratory electronic indicator uses.

This component is constructed using Gallium Phosphide (GaP) and Gallium Arsenide Phosphide (GaAsP) LED materials, contributing to its long life and performance stability. It complies with important standards including UL 94 V-0 flammability rating, RoHS for hazardous substance reduction, and MIL-STD-202F for military-grade quality assurance.

This indicator uses a single yellow LED for clear signalling. The LED size is 5 mm (T-1 3/4) with a diffused yellow lens finish. It is designed for through-hole mounting with two pins and right-angle LED orientation. The viewing angle is 50 degrees ensuring effective visibility in electronic applications.

The maximum forward current rating is 30 mA, allowing efficient energy usage. This indicator has a luminous intensity of 6.3 millicandelas (mcd) for bright indication. Constructed using GaP and GaAsP LED materials for reliable performance.

The length of the component measures 13.85 mm with black plastic housing and sloped back. Power dissipation is rated at 80 mW, suitable for low-power indicator needs. The product meets UL 94 V-0, RoHS, and MIL-STD-202F standards ensuring safety and compliance.

Typical industrial applications include electronic instruments, control panels, and device indicators across manufacturing, HVAC, laboratory, and commercial automation systems. This robust and precise LED indicator is a reliable choice for circuit board illumination needs.
