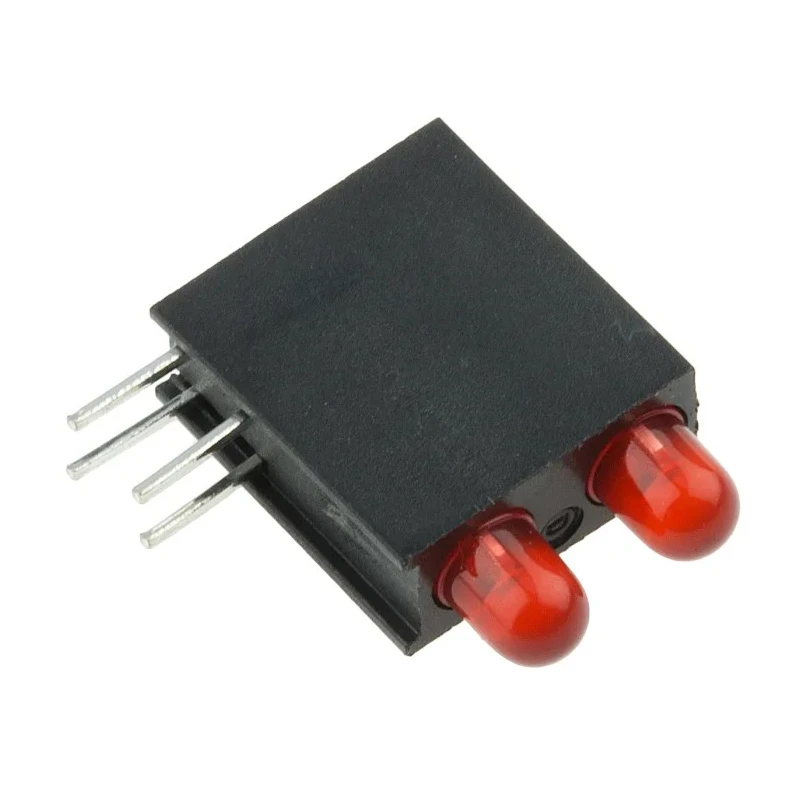

Dialight Red Right Angle PCB LED Indicator 5 mm (T-1 3/4), 2 LEDs 2.2 V Single Colour 553-0211-200F
Specifications
| Country of Origin | India |
|---|---|
| Brand | Dialight |
| Length | 14.06mm |
| Model | 553-0211-200F |
| Mount Type | Through Hole |
| Series | 553 |
| Number Of Leds | 2 |
| Maximum forward current | 30mA |
| Viewing angle | 60 ° |
| Sub Type | Single Colour |
| Power Dissipation | 80mW |
| Lens Colour | Red |
| Luminous Intensity | 1.6mcd |
| Standards/Approvals | RoHS, UL 94 V-0, MIL-STD-202F |
| LED Colour | Red |
| Number of Pins | 4 |
| Lens Finish | Diffused |
| Minimum Supply Voltage | 2.2V |
| LED Material | GaAsP, GaP |
| Multicolour/Single Colour | Single Colour |
| LED Orientation | Right Angle |
| LED Size | 5 mm (T-1 3/4) |
Key Features
- The indicator uses two red 3 mm LEDs with a right-angle orientation for compact PCB mounting.
- It operates at a minimum supply voltage of 2.2 volts for low power consumption.
- Through hole mounting ensures reliable mechanical connection and ease of installation.
- The black plastic housing with UL 94 V-0 rating provides high contrast and durability.
- The LED indicator has a viewing angle of 60 degrees, suitable for clear visual signal detection.
- Its diffused lens finish delivers uniform light distribution for better visibility.
- The device supports a maximum forward current of 30 mA with 80 mW power dissipation.
- Complies with RoHS and MIL-STD-202F standards ensuring quality and reliability.
Product Description
Dialight 553-0211-200F Red Right Angle PCB LED Indicator 5 mm (T-1 3/4) is a high-quality visual signaling device designed for printed circuit board applications. Featuring two red LEDs oriented at a right angle, this indicator delivers precise, reliable status indication with low voltage operation of 2.2 volts.
The indicator is mounted through hole and housed in a rugged black plastic casing with UL 94 V-0 rating, offering excellent contrast and durability needed for industrial and commercial use. Its diffused lens finish ensures consistent light diffusion, enhancing visibility from different viewing angles.
Operating at a maximum forward current of 30 mA and power dissipation of 80 mW, it meets rigorous standards including RoHS compliance and MIL-STD-202F solderability specifications, ensuring long-lasting performance in harsh environments.
The 553 series PCB LED indicators feature compact dimensions of 14.06 mm length, making them suitable for crowded or space-limited PCB layouts. The 60-degree viewing angle provides clear visibility, which is critical in industrial, manufacturing, automation, instrumentation, and electronic control applications.
These indicators are ideal for use in industrial machines, laboratory instruments, communication devices, and consumer electronics requiring reliable LED indicators that maintain brightness and consistency over time.
The indicator includes two 3 mm LEDs configured for right-angle PCB mounting. Black, UL 94 V-0 rated housing with high contrast for improved readability. Complies with multiple industry standards to ensure durability and environmental safety.
Suitable for industrial, laboratory, and manufacturing equipment indication needs. Compact design facilitates installation even in space-constrained spots on PCBs. Explore EnvMart's Electronics & Electricals category for more PCB LED Indicators and related components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The minimum supply voltage for this model is 2.2 volts, allowing for low power consumption during operation.
It supports a maximum forward current of 30 mA, which is important for ensuring proper operation without damage.
This model has a length of 14.06 mm, making it suitable for compact PCB layouts.
The viewing angle is 60 degrees, providing clear visibility from different angles.
It uses through hole mounting, which ensures a reliable mechanical connection and ease of installation.
This model complies with RoHS, UL 94 V-0, and MIL-STD-202F standards, ensuring quality and reliability.
It features a diffused lens finish, which allows for uniform light distribution and better visibility.
The indicator includes two red 3 mm LEDs configured for right-angle PCB mounting.
The power dissipation for this unit is rated at 80 mW, which is crucial for determining its thermal management.
The LEDs are made from GaAsP and GaP materials, which are commonly used for red LED applications.
The luminous intensity is rated at 1.6 mcd, which affects the brightness of the indicator.
This model is suitable for use in industrial machines, laboratory instruments, communication devices, and consumer electronics requiring reliable visual indication.
