Dialight Red Right Angle PCB LED Indicator 5 mm (T-1 3/4), 2 LEDs, 3 V Single Colour 553-0111F

Free Delivery in India | Lowest Global Shipping Charges

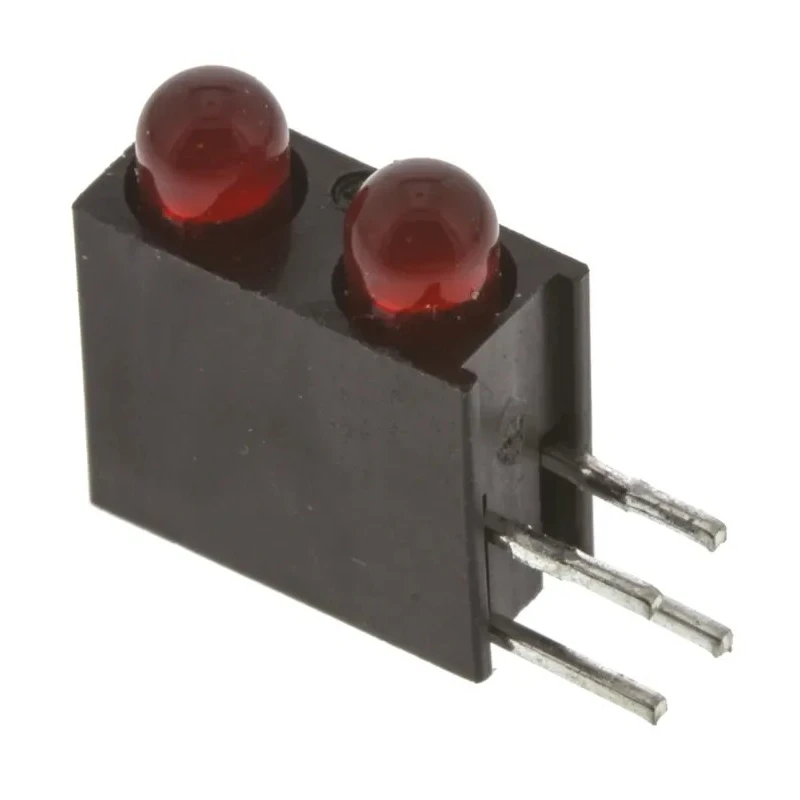

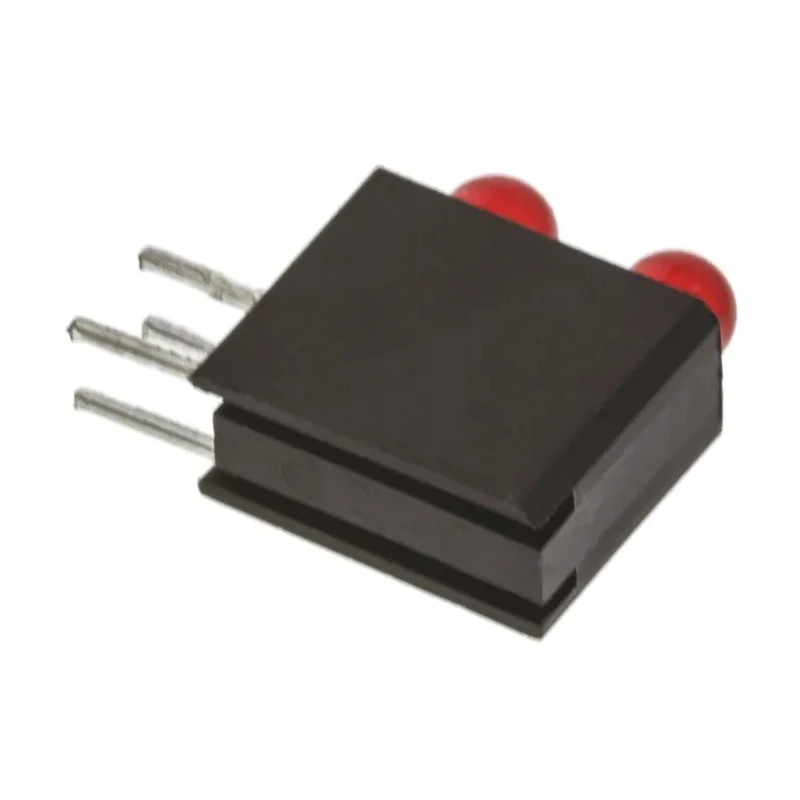

Dialight Red Right Angle PCB LED Indicator 5 mm (T-1 3/4), 2 LEDs, 3 V Single Colour 553-0111F

Name: Dialight Red Right Angle PCB LED Indicator 5 mm (T-1 3/4), 2 LEDs, 3 V Single Colour 553-0111F
Brand: DIALIGHT
SKU: 197049
Price: 1.72 USD
Availability: InStock



Category PCB LED Indicator Brand DIALIGHT Condition New

Specifications

Country of Origin	India
Brand	Dialight
Length	8.1mm
Model	553-0111F
Mount Type	Through Hole
Series	553
Number Of Leds	2
Maximum forward current	30mA
Viewing angle	45 °
Sub Type	Single Colour
Power Dissipation	80mW
Lens Colour	Red
Luminous Intensity	10mcd
Standards/Approvals	MIL-STD-202F, RoHS, UL 94 V-0
LED Colour	Red
Number of Pins	4
Lens Finish	Diffused
Minimum Supply Voltage	3V
LED Material	GaP, GaAsP
Multicolour/Single Colour	Single Colour
LED Orientation	Right Angle
LED Size	5 mm (T-1 3/4)
Red single PCB mount LED,5530111 10mABrand	Dialight

Key Features

The indicator features 2 red LEDs mounted in a right angle configuration.
It operates at a minimum supply voltage of 3 volts with a forward current of 30 mA.
The LED size is 5 mm (T-1 3/4) with a diffused red lens finish for optimal visibility.
The package includes a black plastic housing with through-hole mounting and 4 pins.
This indicator offers a viewing angle of 45 degrees suitable for space-conscious boards.
It meets MIL-STD-202F, RoHS compliance, and UL 94 V-0 standards for durability and safety.
The luminous intensity is rated at 10 millicandela ensuring clear indication.
Designed with GaP and GaAsP LED materials for reliability and performance.

Product Description

Dialight 553-0111F Red Right Angle PCB LED Indicator 5 mm (T-1 3/4) is a precision-built dual LED indicator designed for use in printed circuit board applications, operating at a minimum supply voltage of 3 volts with power dissipation of 80 mW. Its 2 red LEDs are mounted in a right-angle black plastic housing that provides high contrast and durability.

Featuring through-hole mounting with 4 pins, this indicator suits space-conscious PCB designs where compactness and reliability are essential. The diffused red lens finish ensures a clear and uniform light output, ideal for signal or status indication in various electrical and electronic equipment.

The indicator offers a 45-degree viewing angle, making it suitable for visibility from various orientations. It uses GaP and GaAsP LED materials that ensure longevity, vibration resistance, and stable performance in industrial and commercial environments.

Compliance with MIL-STD-202F, RoHS, and UL 94 V-0 standards confirms the indicator's robustness and environmental safety. The luminous intensity of 10 millicandela delivers clear visual feedback in control panels, instrumentation, consumer electronics, and automation systems industry-wide.

The Dialight 553 series are recognized for high efficiency, low current bi-level indicators and are widely used in industrial machinery, instrumentation, telecommunications, and HVAC control boards.

The indicator includes 2 x 5 mm red LEDs arranged at a right angle in a black package. The design supports through hole PCB mounting with 4 pins for stability and ease of assembly. It operates reliably at low power dissipation levels (80 mW), minimizing energy consumption.

Meets regulatory standards MIL-STD-202F, RoHS, UL 94 V-0 for safety and compliance. Ideal for compact board layouts requiring high reliability and visual status indication. Explore related PCB LED Indicators on EnvMart for diverse applications in electronics manufacturing and assembly.
