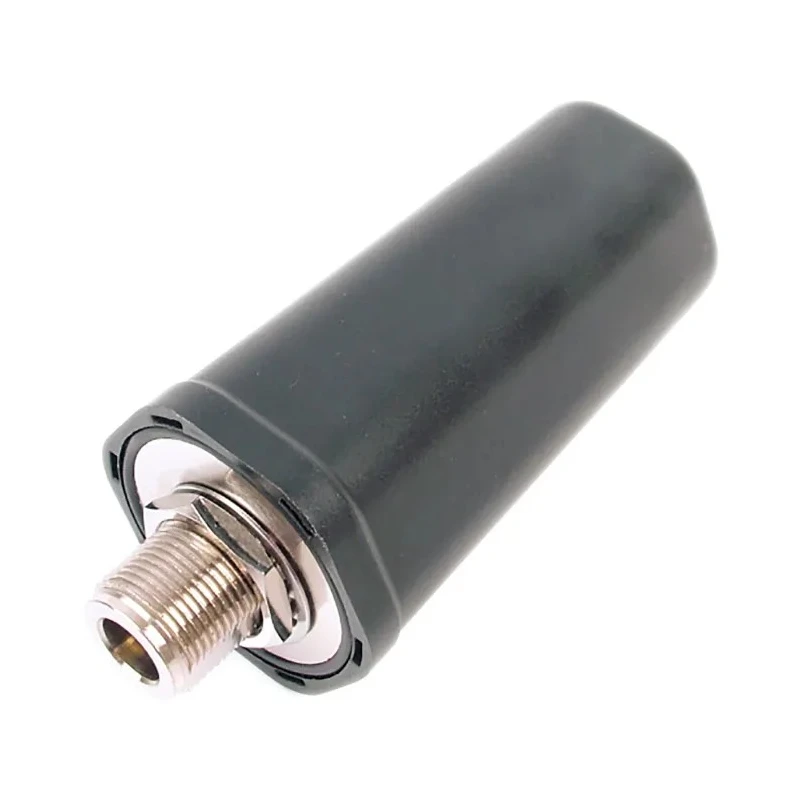

Siretta Stubby Multi-Band Antenna with Type N Connector, 698 MHz to 2.7 GHz, 3 Bands TANGO40/x/NTYPEF/S/S/32

The Siretta TANGO40/x/NTYPEF/S/S/32 is a stubby multi-band external antenna designed for industrial and commercial wireless communication applications. It covers an extensive frequency range from 698 MHz to 2.7 GHz, supporting 2G, 3G, 4G, and WiFi protocols, making it ideal for diverse environments such as telecommunications infrastructure, IoT devices, and data transmission systems.

This antenna features a Type N female connector with a bolt-through mounting mechanism, ensuring a secure and stable installation on various surfaces. The integral rubber washer facilitates reliable water sealing, making it suitable for use in outdoor and harsh environmental conditions. The stubby physical form with compact dimensions offers easy placement even on uneven or curved surfaces.

The antenna operates with an omni-directional radiation pattern, providing consistent signal coverage in all directions and a gain of up to 5 dBi. Vertical polarization improves communication reliability in multi-path environments. The design complies with RoHS standards, confirming its environmental safety and quality.

Mechanical specifications include a diameter of 39.8 mm and a length of 77.9 mm. Installation requires a 16 mm diameter mounting hole with a maximum panel thickness of approximately 5 mm. This product does not include any additional leads and supports through-hole/bolted mounting types.

Applications span a variety of industrial sectors including telecommunications, smart grid networks, remote monitoring, and wireless data communication systems, where robust and multi-band antenna performance is essential.

The TANGO40 series by Siretta is well-regarded for its durability and performance in multi-band scenarios, making this antenna a versatile choice for enhancing wireless connectivity in challenging environments. Its omni-directional radiation and multi-band capabilities ensure wide-area coverage and adaptability.

Explore the full range of Siretta Multi-Band Antennas at EnvMart to find optimized solutions for your wireless connectivity needs. Operates over a frequency range of 698 MHz to 2.7 GHz with three distinct bands. Features a Type N female connector suitable for bolt-through mounting.

Offers an omni-directional radiation pattern with 5 dBi gain for reliable signal reception. Constructed with a stubby form factor and external antenna design for flexible installation. Includes an integral rubber washer providing effective water sealing on mounting surfaces.

Supports vertical polarization and complies with RoHS standards. Compact dimensions of approximately 39.8 mm diameter and 77.9 mm length. Requires a 16 mm diameter hole for mounting with a maximum material thickness of about 5 mm.

Designed for applications in 2G (GSM/GPRS), 3G (UTMS), 4G (LTE), and WiFi wireless systems.
