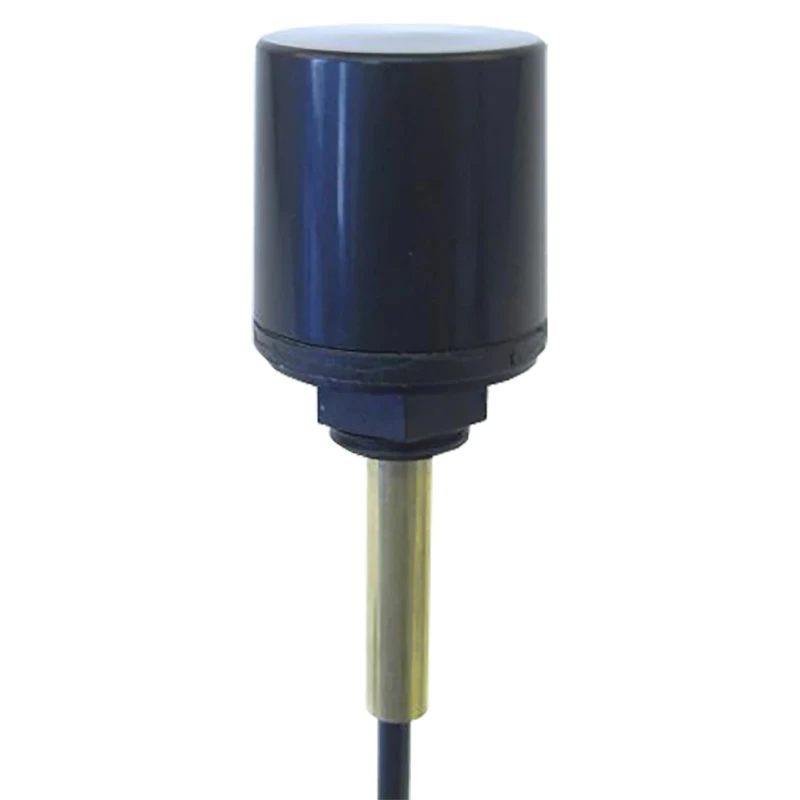

Siretta Stubby WiFi Antenna with SMA RP Connector, Bluetooth (BLE), 2.4GHz, 2dBi Gain, 100mm Cable TANGO25/0.1M/SMAM/S/RP/29
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Siretta |
| Operating Temperature | -30 to +60˚C |
| Model | TANGO25/0.1M/SMAM/S/RP/29 |
| Cable Length | 100mm |
| Connector Type | SMA RP |
| Gross Weight | 13 g +/- 2 g |
| Series | Tango 25 |
| Gain | 2dBi |
| Protection | IP65 |
| Impedance | 50 Ω |
| Maximum Frequency | 2.4GHz |
| Connector Gender | Male |
| Minimum Frequency | 2.4GHz |
| Internal/External | External |
| RF Protocols | Bluetooth (BLE), WiFi |
| Antenna Physical Form | Stubby |
| Antenna Mount Type | Through Hole/Bolted |
| Directivity | Omni-Directional |
| Antenna Internal Construction | ABS |
| Polarisation | Vertical |
| WiFi/WLAN/Bluetooth/ZigBee | 2.4 GHz to 2.5 GHz |
| Radiation | Omnidirectional |
| VSWR | 2 max |
| Dual band WiFi | 5.1 GHz to 5.8 GHz |
| 22 mm (diameter), height | 22 mm (excluding screw thread) |
| Through hole mount | 8 mm long screw thread |
Key Features
- Operates at 2.4 GHz frequency band with a gain of 2 dBi.
- Features a compact stubby physical form with 22 mm diameter and height.
- Includes a 100 mm RG174 coaxial cable with a male reverse polarity SMA connector.
- Omni-directional radiation pattern with vertical polarization for improved signal reception.
- Designed for through hole/bolted mounting with an 8 mm long screw thread.
- Durable ABS antenna construction rated IP65 for protection in harsh environments.
- Supports Bluetooth (BLE), WiFi, WLAN, and ZigBee RF protocols.
- Works reliably within an operating temperature range of -30 to +60 degrees Celsius.
Product Description
Siretta TANGO25/0.1M/SMAM/S/RP/29 is a compact external stubby WiFi antenna engineered for Bluetooth (BLE) and WiFi applications operating at 2.4 GHz frequency. This single-band antenna offers an efficient 2 dBi peak gain with omni-directional radiation and vertical polarization, ensuring reliable signal transmission and reception.
The antenna features a robust ABS construction and measures just 22 mm in diameter and height, making it one of the most compact screw mount WiFi antennas available. It includes a 100 mm RG174 coaxial cable terminated with a male reverse polarity SMA connector for secure and stable connectivity.
Designed for through hole or bolted mounting with an 8 mm long screw thread, this antenna is IP65 rated, providing protection against dust and water ingress, suitable for industrial, commercial, and outdoor electronics applications.
Operating within a temperature range of -30 to +60°C, with 50 ohms impedance and a VSWR not exceeding 2, it meets performance standards for WiFi/WLAN, Bluetooth, and ZigBee wireless communication technologies.
Operates at 2.4 GHz frequency band supporting Bluetooth (BLE) and WiFi. Compact stubby design with 22 mm diameter and height. 100 mm RG174 coaxial cable with male reverse polarity SMA connector included. Omni-directional radiation and vertical polarization.
Through hole/bolted mounting with 8 mm screw thread. Durable ABS construction with IP65 protection rating. Operates between -30 and +60 degrees Celsius. 50 ohms impedance with VSWR maximum of 2.
This antenna is ideal for enhancing wireless communication in industrial, laboratory, manufacturing, commercial, and outdoor environments, providing a compact and reliable solution for mounting on electronic devices used in WiFi and Bluetooth applications.
Explore the Electronics Components category for more WiFi antennas and wireless connectivity solutions at EnvMart.
Explore more products in our Passive Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a frequency range of 2.4 GHz, supporting Bluetooth (BLE) and WiFi applications.
The antenna comes with a 100 mm RG174 coaxial cable.
This model has a compact design with a diameter and height of 22 mm, excluding the screw thread.
It is designed for through hole or bolted mounting with an 8 mm long screw thread.
It operates effectively within a temperature range of -30 to +60 degrees Celsius.
The internal construction is made of durable ABS material.
It supports Bluetooth (BLE), WiFi, WLAN, and ZigBee RF protocols.
The voltage standing wave ratio (VSWR) does not exceed 2, ensuring efficient performance.
The antenna is manufactured in Taiwan.
