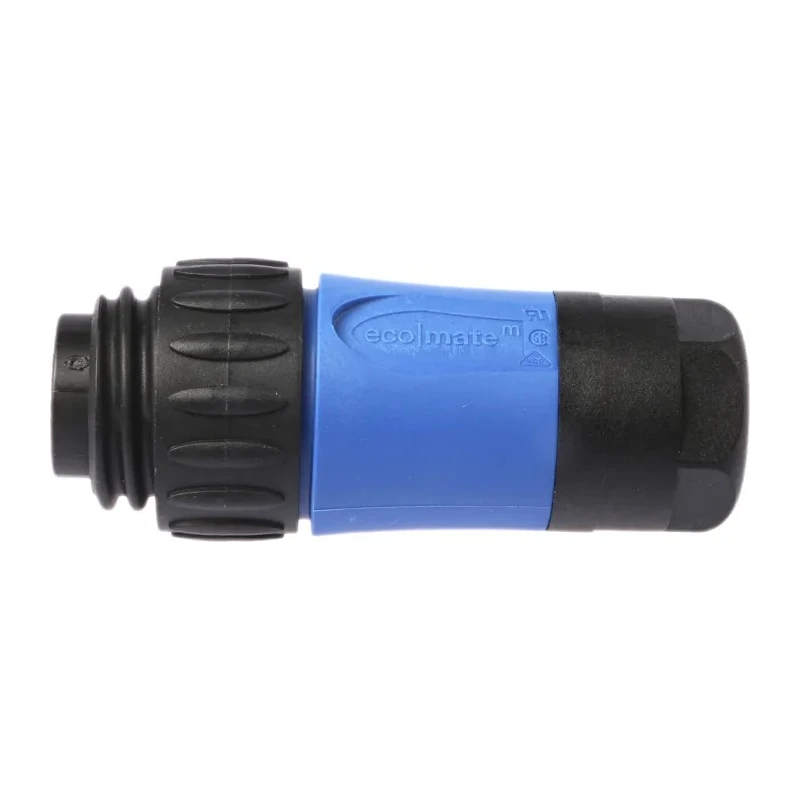

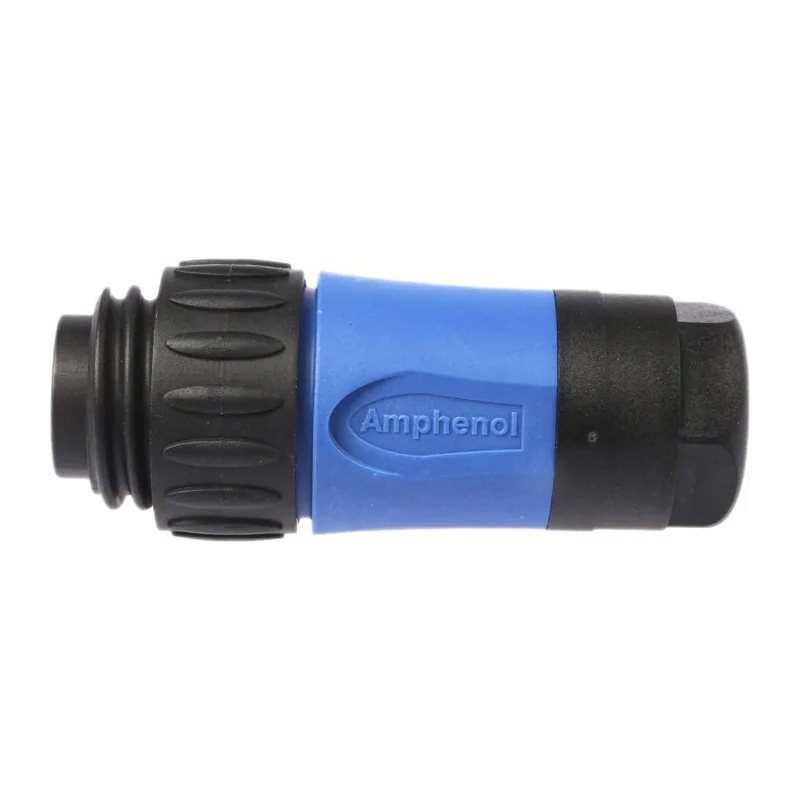

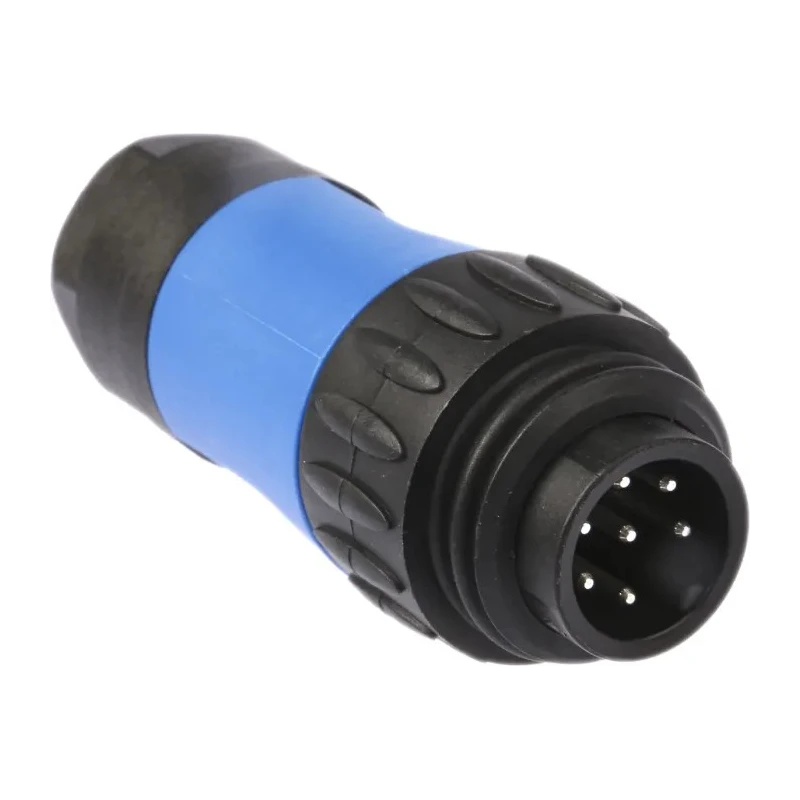

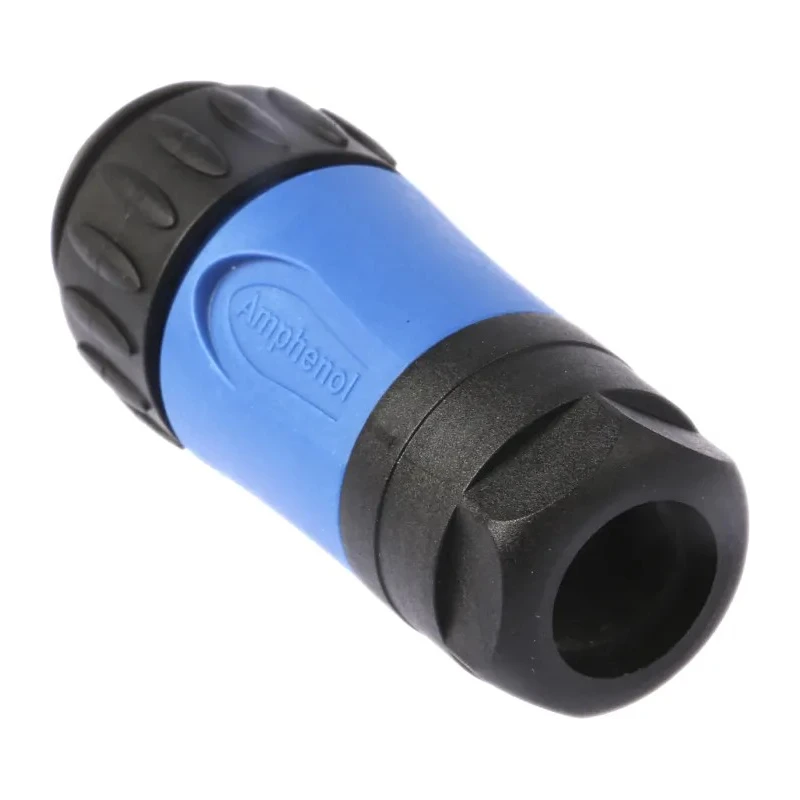

RS PRO Circular Connector 6 Contacts Cable Standard Plug Male IP67 Ecomate M Series C01630H00610010

Amphenol Industrial C01630H00610010 is a high-quality circular connector designed for industrial environments, providing secure connections with 6 contacts and a compact polymer housing. Rated IP67, this connector offers excellent protection against dust and water, making it ideal for rugged applications.

Operating at 250 volts and supporting a current of up to 10 amperes per contact, this connector features a solder termination and a bayonet mating system, ensuring easy and reliable connection and disconnection. Its straight body orientation and cable mount design facilitate efficient installation in industrial wiring setups.

The robust polymer housing combined with silver plated copper alloy contacts ensures durability and reliable electrical conductivity. The connector is designed to handle mechanical stresses with a mechanical life greater than 500 mating cycles. The clamping ring accommodates cables with diameters from 6mm to 12.5mm, ensuring strain relief and stable connections.

This Ecomate M series connector operates over a broad temperature range from -40°C to 125°C, suited for diverse industrial and manufacturing environments including power supply and control systems. The pre-loaded ground contact enhances operational safety and connection integrity.

The connector’s design incorporates resistance against impact, vibration, and ultraviolet exposure, meeting the stringent requirements of industrial technology. Accessories such as connector caps are available to maintain IP rating when unmated, and ratchet crimp tools facilitate crimp contact installation.

Constructed with a polymer housing for durability and resistance. Operates at 250V with a current rating of up to 10A per contact. Features a plug-type connection with solder termination and bayonet mating type. Rated IP67 for dust and water protection, suitable for harsh environments.

Designed for straight orientation and includes strain relief and clamping rings. Operating temperature range from -40°C to 125°C for wide industrial use. Silver plated copper alloy contacts ensure reliable conductivity and corrosion resistance.

Mechanical life exceeds 500 mating cycles for lasting performance. Suitable for measuring, controlling, power supply, and various industrial uses. Ground contact pre-loaded to ensure safety and connectivity. Explore the full range of Industrial Circular Connectors at EnvMart for dependable connection solutions designed for demanding applications.
