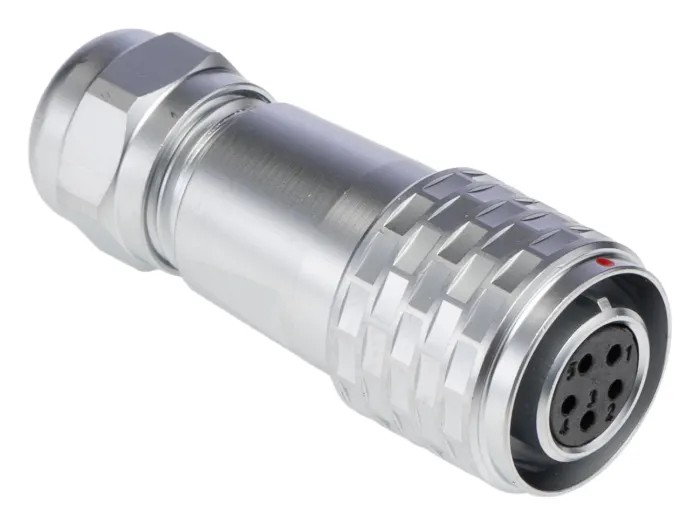

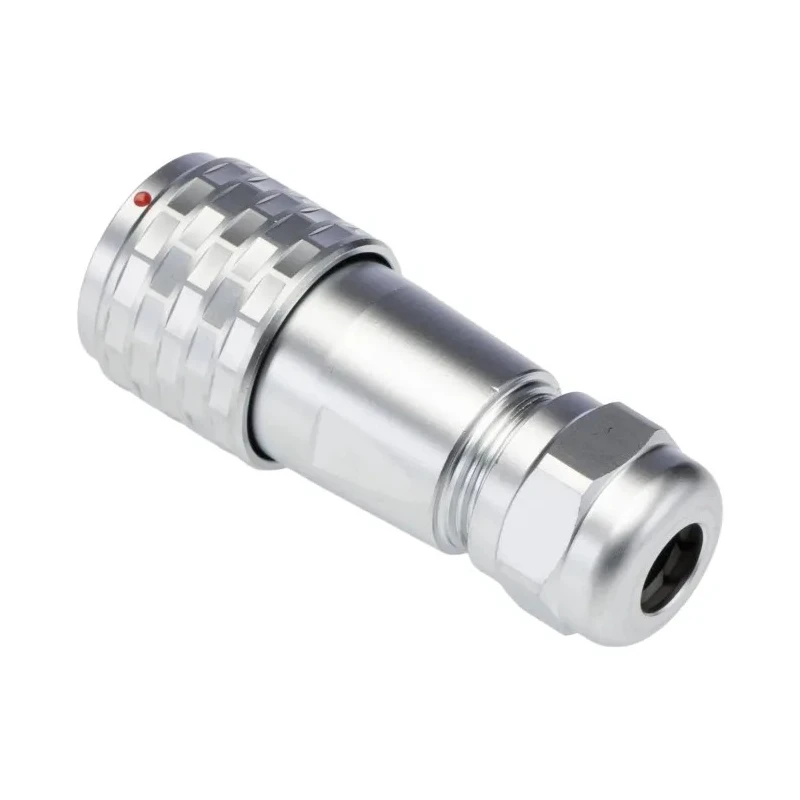

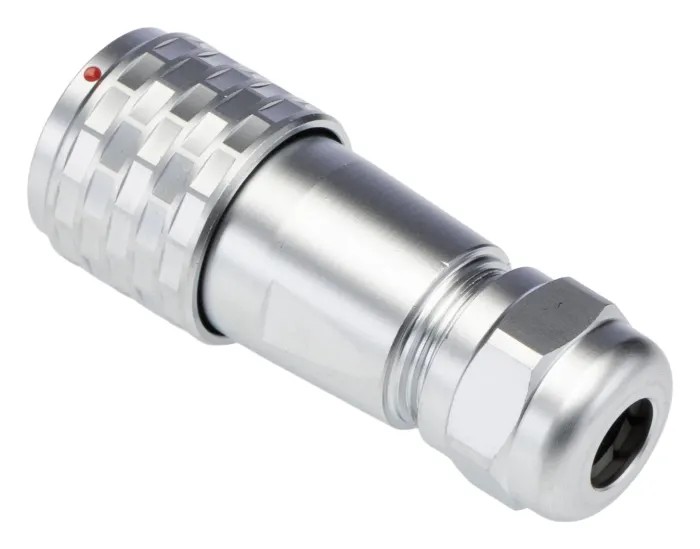

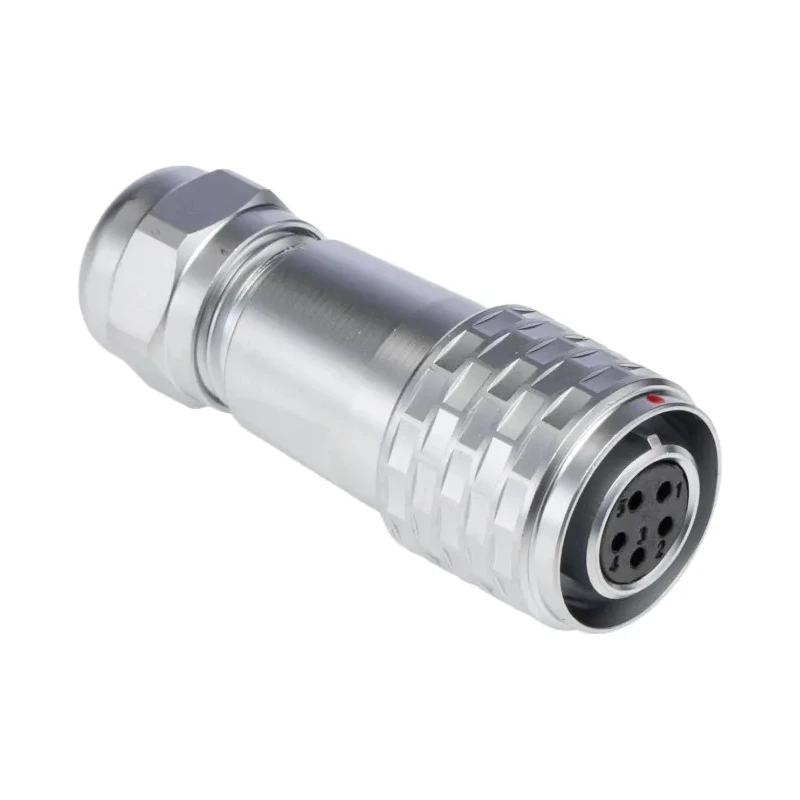

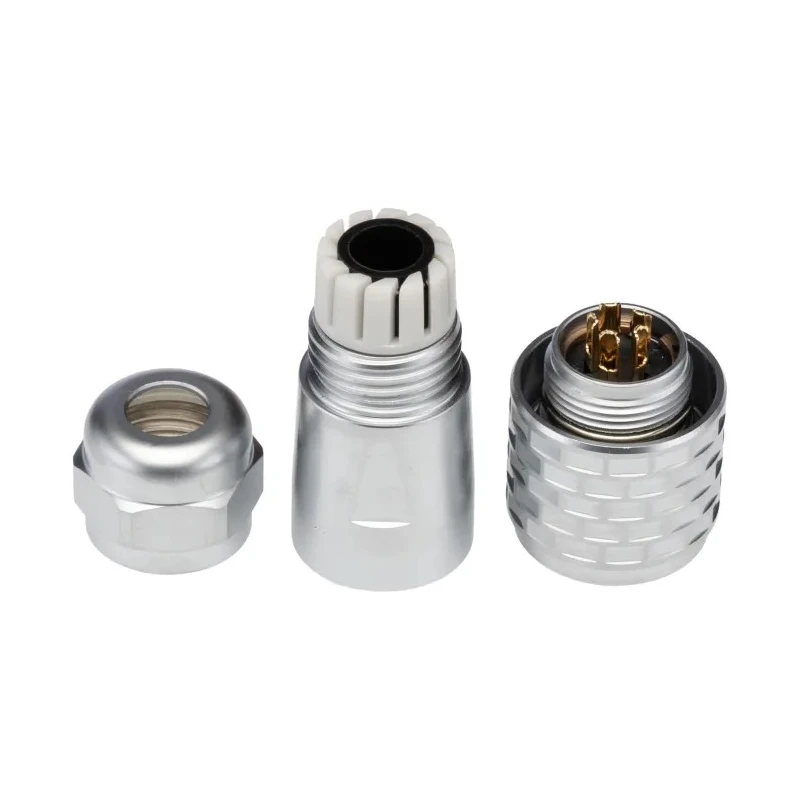

RS PRO Circular Connector, 5 Contacts, Cable Mount, M12 Plug Female, IP67, 180V, 5A, Chrome Plated Brass 124-6734
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 180V |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 5A |
| Model | 124-6734 |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Chrome Plated Brass |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 5 |
| Contact Plating | Gold |
| Number of Contacts | 5 |
| Contact Gender | Female |
| Mating Type | Push Pull |
| Connector Size | M12 |
| Plug/Socket | Plug |
| Cable Outer Diameter | 4 mm to 6.5 mm See RS part numbers below |
| Panel hole cutout diameter | 12 mm |
Key Features
- Rated IP67 for dust and water resistance.
- Supports up to 180V and 5A current capacity.
- Chrome plated brass housing ensures durability and corrosion resistance.
- Gold plated brass contacts with solder termination provide reliable connectivity.
- Operates reliably between -40°C to 85°C temperature range.
- Straight orientation and push-pull mating type for ease of use.
- Designed for cable outer diameters ranging 4 mm to 6.5 mm.
- Panel cutout diameter requires 12 mm hole.
Product Description
RS PRO 124-6734 Circular Connector is a high-quality Industrial Circular Connector with 5 contacts, designed specifically for cable mounting applications. This M12 connector features a female plug with push-pull mating, enabling quick and secure connections in demanding industrial environments. Rated IP67, it offers excellent protection against dust and water ingress, making it ideal for use in harsh environments such as manufacturing plants, industrial automation, and outdoor electrical installations.
The connector supports an operating voltage of 180V and carries currents up to 5A, ensuring reliable power or signal transmission. The housing is constructed from chrome plated brass, providing both robust mechanical strength and corrosion resistance. Gold-plated brass contacts enhance connectivity quality and durability. The solder termination type facilitates secure cable attachment.
Operating temperature range from -40°C to 85°C allows deployment in diverse climate conditions. The connector is straight in orientation and designed for a cable outer diameter between 4 mm to 6.5 mm. Installation requires a panel cutout of 12 mm diameter. The female contact gender and plug configuration ensure compatibility with matching connectors.
Rated IP67 for dust and water resistance. Supports up to 180V and 5A current capacity. Chrome plated brass housing ensures durability and corrosion resistance. Gold plated brass contacts with solder termination provide reliable connectivity.
Operates within -40°C to 85°C temperature range. Straight connector orientation with push-pull mating type. Suitable for cable outer diameters 4 mm to 6.5 mm. Panel hole cutout diameter: 12 mm. Female contact gender and plug type connector.
This RS PRO circular connector is widely used in industrial, manufacturing, automation, and instrumentation sectors where dependable, secure cable connections are essential. Its rugged design withstands challenging conditions to maintain uninterrupted operation. Explore high-quality industrial connectors including circular and power connectors from RS PRO at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum voltage of 180V and a current capacity of 5A.
The connector is rated IP67, providing excellent protection against dust and water ingress.
The housing is made of chrome plated brass, while the contacts are gold plated brass, ensuring durability and reliable connectivity.
It operates reliably within a temperature range of -40°C to 85°C.
This model features a straight orientation with a push-pull mating type for ease of use.
Installation requires a panel cutout diameter of 12 mm.
It is designed for cable outer diameters ranging from 4 mm to 6.5 mm.
This circular connector features 5 contacts.
It uses a solder termination type for secure cable attachment.
This model is widely used in industrial, manufacturing, automation, and instrumentation sectors where secure cable connections are essential.
The connector size is M12.
The contact gender of this model is female.
