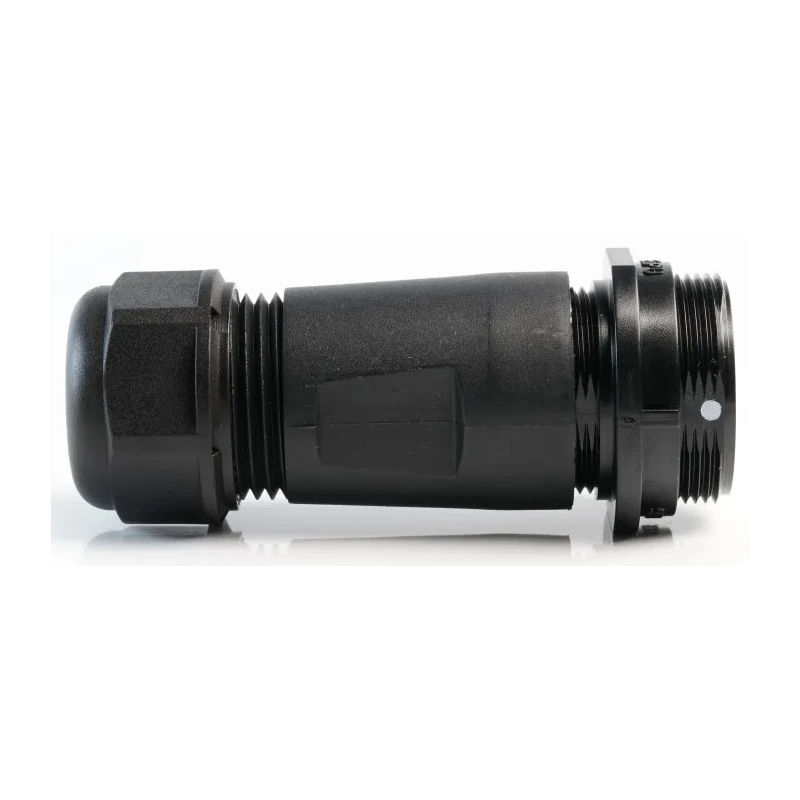

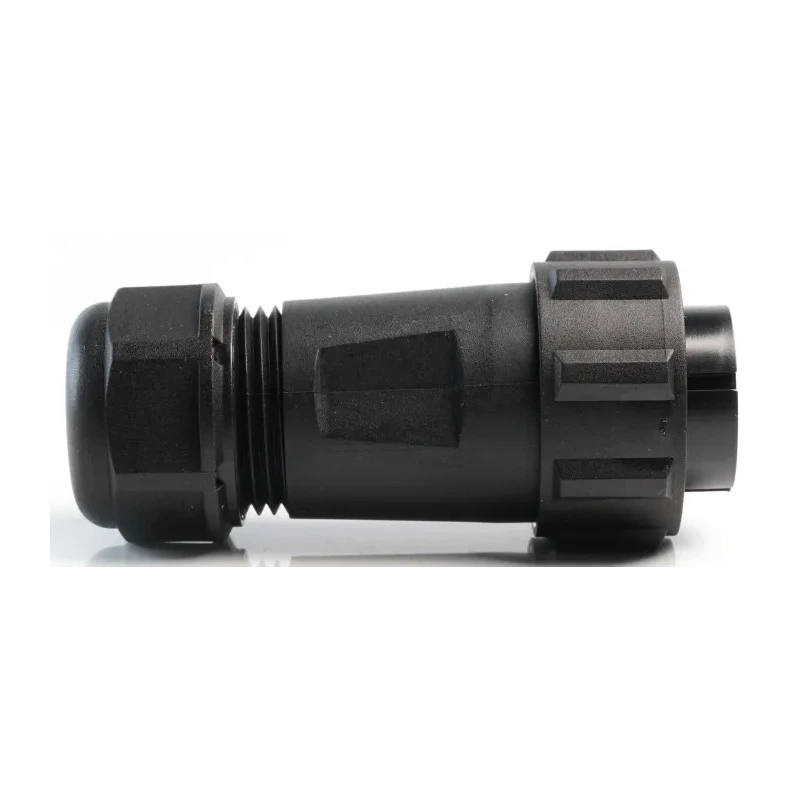

RS PRO Circular Connector, 3 Contacts, Cable Mount, Plug and Socket, Threaded Mating, , 500V, 10A, Polyamide 66 and IP68
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 500V |
| Brand | RS PRO |
| Orientation | Straight |
| Current | 10A |
| Model | IP68 |
| IP Rating | IP68 |
| Mount Type | Cable |
| Housing Material | Polyamide 66, Polycarbonate |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Screw |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 3 |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Male/Female |
| Shell Size | 21 mm |
| Mating Type | Threaded |
| Connector Size | Standard |
| Plug/Socket | Plug, Socket |
Key Features
- Rated IP68 for waterproof performance under immersion and high pressure conditions.
- Supports 3 electrical contacts with 10A current and 500V voltage rating.
- Housing made of durable Polyamide 66 and Polycarbonate materials.
- Threaded mating type ensures secure and reliable electrical connection.
- Screw termination supports cable with 7 mm to 12 mm diameter range.
- Operating temperature ranges from -40°C to +85°C for versatile applications.
- Gold-plated brass contacts provide excellent corrosion resistance.
- Designed for cable mount with straight orientation for easy installation.
Product Description
RS PRO IP68 Circular Connector model IP68 provides a robust and reliable solution for electrical connections in demanding industrial environments. Featuring 3 contacts with a current rating of 10A and voltage rating of 500V, this connector supports cable mounting with a standard shell size of 21 mm. The plug and socket configuration with male/female contacts uses a threaded mating type to ensure secure connections that withstand mechanical vibrations and environmental stress.
The housing is constructed from durable Polyamide 66 and Polycarbonate plastics, delivering resistance to impact and chemical exposure. Rated at IP68, the connector is waterproof, capable of extended immersion under higher pressures, making it suitable for harsh conditions such as marine and automotive applications. Operating temperature ranges from -40°C to +85°C ensure reliable performance across diverse climates.
Gold plating on the brass contacts enhances corrosion resistance, prolonging connector life, especially in dusty, sandy, or wet environments. Screw termination simplifies assembly and maintenance in the field. The cable diameter range supported is 7 mm to 12 mm, with a panel hole size of 21 mm for cable-to-panel or cable-to-cable installations.
This circular connector is part of the RS PRO range, known for stringent quality testing and reliability. It also conforms to electrostatic discharge handling standards (ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007), ensuring safe manufacturing and handling environments.
Rated IP68 for waterproof and dustproof protection. 3 position contacts with gold-plated brass for corrosion resistance. Voltage rating of 500V with 10A current capacity. Robust polyamide and polycarbonate housing materials.
Threaded, screw termination for secure mating and easy assembly. Wide operating temperature range from -40°C to +85°C. Designed for harsh industrial, marine, and automotive applications. Conforms to electrostatic discharge protection standards.
Suitable for use in industrial, marine, automotive, and harsh environment electrical connectivity. Explore more high-quality Circular Connectors and accessories at EnvMart for your electronic projects and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a voltage rating of 500V and a current rating of 10A.
The housing is made from durable Polyamide 66 and Polycarbonate materials.
It is rated IP68, providing waterproof and dustproof protection suitable for harsh environments.
The operating temperature ranges from -40°C to +85°C, making it suitable for diverse climates.
This circular connector features 3 contacts with a male/female configuration.
It uses a screw termination type for secure mating and easy assembly.
It supports a cable diameter range of 7 mm to 12 mm.
The standard shell size for this connector is 21 mm.
This model features a threaded mating type to ensure secure connections.
It is suitable for use in industrial, marine, automotive, and harsh environment electrical connectivity.
The contacts are made of brass and are gold-plated for enhanced corrosion resistance.
The country of origin for this connector is China.
