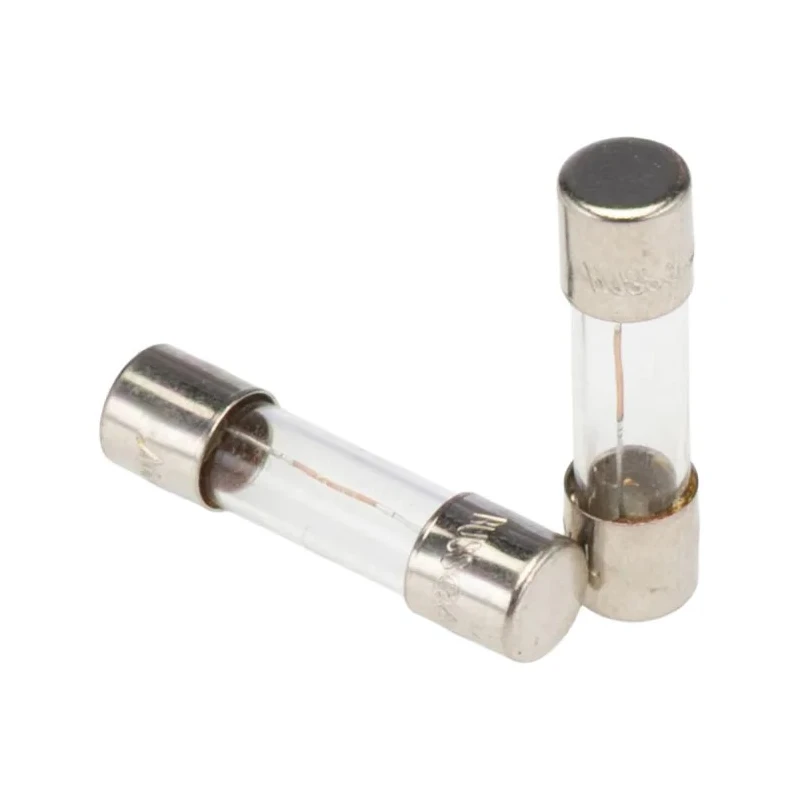

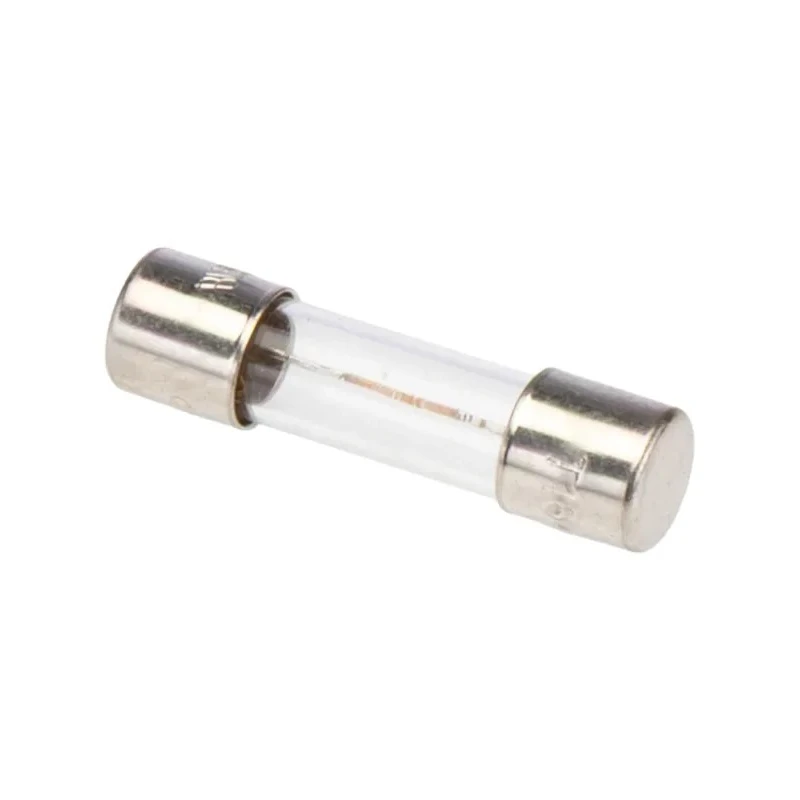

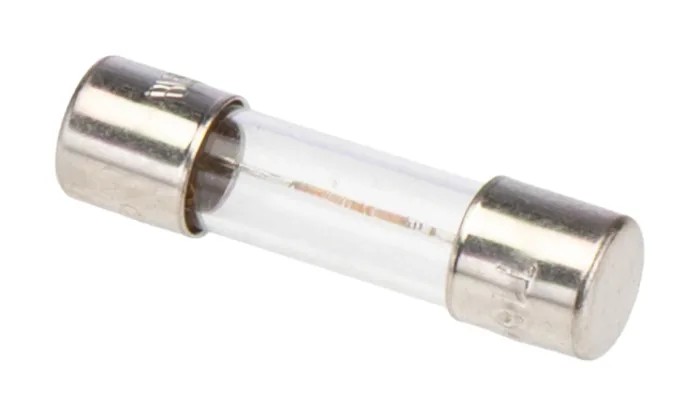

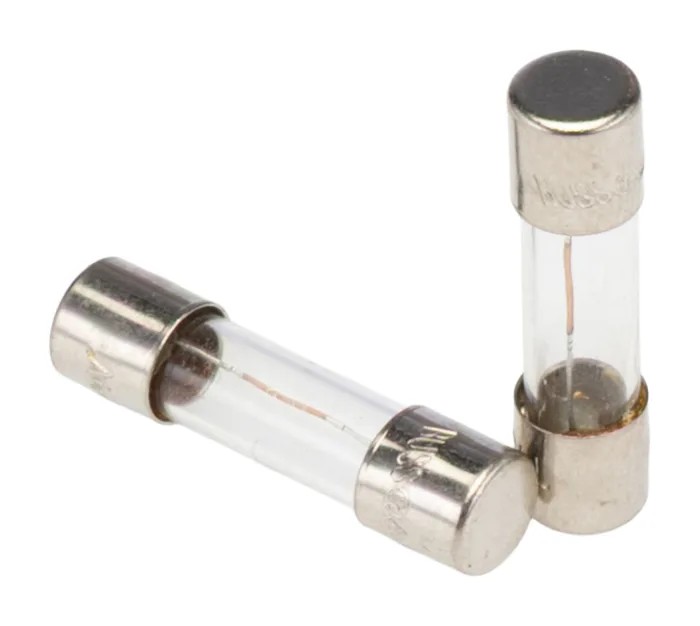

Eaton 160mA Time Delay Glass Cartridge Fuse 5 x 20 mm, 250V AC S506-160-R
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V ac |
| Diameter | 5mm |
| Brand | Eaton |
| Body Material | Glass |
| Model | S506-160-R |
| Overall Length | 20mm |
| Current Rating | 160mA |
| Series | S506 |
| Standards/Approvals | BSI, CCC, IMQ, SEMKO, UL, VDE, CSA |
| Fuse Characteristics | Time Delay |
| Fuse Size | 5 x 20 mm |
| Cooper Bussmann Cartridge FuseBrand | Cooper Bussmann |
| RS PRO 160mA T Glass Cartridge Fuse, 5 x 20 mmBrand | RS PRO |
| RS PRO 160mA T Glass Cartridge Fuse, 5 x 20 mmRS Stock No. | 563-586Brand: RS PRO |
| 20MM FUSES-A/S 160MABrand | NEUTRAL |
Key Features
- Glass cartridge fuse allows visual inspection of the fuse element.
- Time delay (T) characteristic tolerates short surges without blowing immediately.
- Compact 5 mm diameter and 20 mm length fit standard fuse holders.
- Low breaking capacity (LBC) suitable for protecting sensitive devices and circuits.
- Suitable for board and panel protection in electronic and electrical applications.
- Complies with multiple safety standards including BSI, CCC, IMQ, SEMKO, UL, VDE, CSA.
- Ideal for overcurrent and short circuit protection in 250V AC systems.
Product Description
Eaton S506-160-R is a 160mA time delay glass cartridge fuse designed to provide reliable overcurrent and short circuit protection for electronic and electrical circuits. Featuring a compact 5 x 20 mm glass body, this fuse is ideal for fitting in standard fuse holders and allows easy visual verification of the fuse condition.
The time delay or 'T' rating means the fuse can tolerate short surges of current or transient spikes without blowing instantly, making it suitable for applications requiring temporary overloads or startup surges. This low breaking capacity (LBC) fuse enhances protection by safely isolating faults without the risk of explosive failure.
This fuse complies with multiple international standards such as BSI, CCC, IMQ, SEMKO, UL, VDE, and CSA, ensuring adherence to safety and performance criteria mandatory in industrial and commercial environments.
Typically used in board and panel protection, Eaton's glass cartridge fuses are prevalent in automation, electrical distribution, manufacturing equipment, and HVAC control systems.
The glass body construction enables clear visibility of the internal fuse element, helping users quickly determine if the fuse has blown, facilitating faster maintenance and minimizing downtime.
Glass cartridge fuse design with visible fuse element. Time delay fuse capable of handling transient surges. Standard 5 mm diameter by 20 mm length size for common fuse holders. Low breaking capacity suitable for sensitive circuit protection.
Comprehensive compliance with global safety approvals. Reliable brand Eaton, known for high-quality electrical components. Applications in electronics, automation, industrial equipment, and HVAC. Ideal for overcurrent and fault isolation in 250V AC circuits.
Set standards in electrical protection are maintained with Eaton's S506 series, supporting operational safety and equipment longevity. Explore the full range of Eaton Cartridge Fuses and related protective devices on EnvMart for comprehensive circuit safeguarding solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton S506-160-R fuse has a current rating of 160mA.
This glass cartridge fuse has a diameter of 5 mm and an overall length of 20 mm.
It operates at a voltage of 250V AC.
The fuse characteristic of this model is time delay, allowing it to tolerate short current surges without blowing immediately.
The body of this fuse is made of glass, which allows for visual inspection of the fuse element.
This fuse complies with multiple safety standards, including BSI, CCC, IMQ, SEMKO, UL, VDE, and CSA.
It is suitable for board and panel protection in electronic and electrical applications, including automation and HVAC control systems.
This model has a low breaking capacity (LBC), making it suitable for protecting sensitive devices and circuits.
The time delay feature allows the fuse to handle transient spikes without blowing instantly, which is beneficial for applications with temporary overloads.
The country of origin for this fuse is China.
This fuse belongs to the S506 series, which is known for its reliable overcurrent and short circuit protection.
