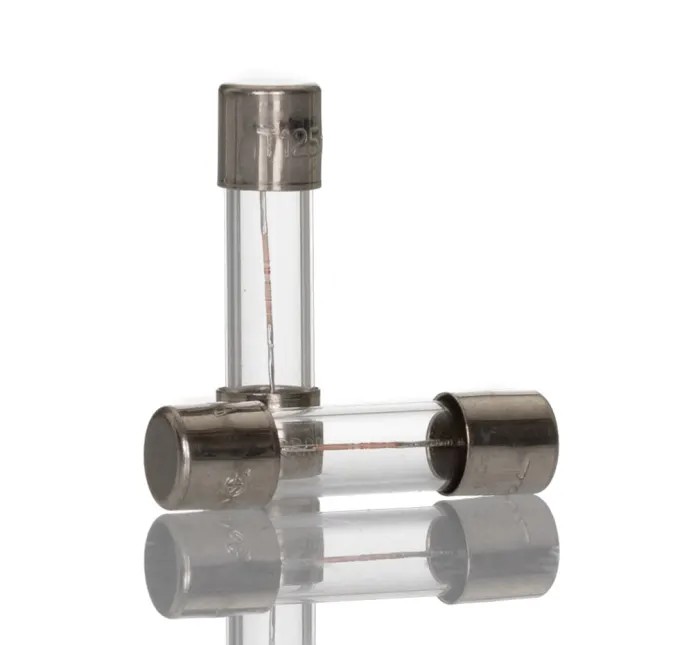

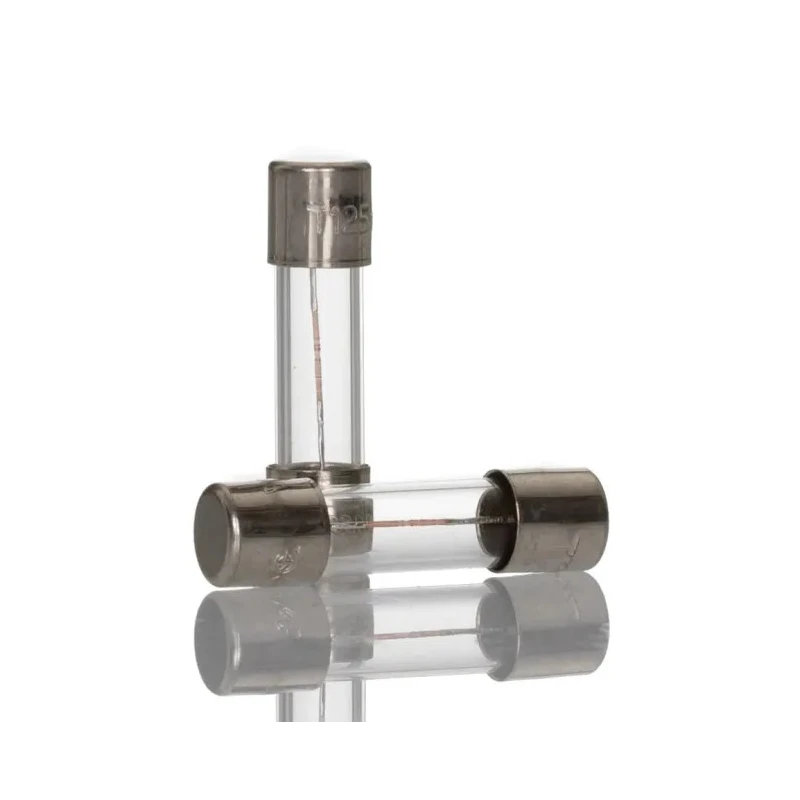

Eaton Glass Cartridge Fuse 125mA Time Delay 5 x 20 mm 250V AC S506-125-R
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V ac |
| Diameter | 5mm |
| Brand | Eaton |
| Body Material | Glass |
| Model | S506-125-R |
| Overall Length | 20mm |
| Current Rating | 125mA |
| Series | S506 |
| Standards/Approvals | VDE, UL, SEMKO, IMQ, CSA, CCC, BSI |
| Fuse Characteristics | Time Delay |
| Fuse Size | 5 x 20 mm |
| Cooper Bussmann Cartridge FuseBrand | Cooper Bussmann |
| Littelfuse 125mA T Glass Cartridge Fuse, 5 x 20 mmBrand | Littelfuse |
| 20MM FUSES-A/S 125MABrand | NEUTRAL |
| RS PRO 125mA T Glass Cartridge Fuse, 5 x 20 mmBrand | RS PRO |
Key Features
- Glass body allows visual inspection to quickly identify a blown fuse.
- Rated for 250V AC voltage applications ensuring broad compatibility.
- Time Delay (T) characteristic provides slow-acting protection suitable for high inrush currents.
- Low Breaking Capacity (LBC) designed to protect components from overcurrent damage.
- Standard 5 x 20 mm size fits compatible fuse holders and panel mounts.
- Meets multiple approvals including VDE, UL, SEMKO, IMQ, CSA, CCC, and BSI standards.
- Ideal for board and panel protection in industrial and electronic equipment.
- Made in China with Eaton Bussmann quality and reliability.
Product Description
Eaton S506-125-R is a glass cartridge fuse with a current rating of 125mA, fuse size of 5 x 20 mm, and time delay (T) fuse characteristic. Rated at 250V AC, it is designed for use in electrical circuit protection where slow-blow behavior is required to tolerate brief surges and prevent nuisance blowing.
This glass-bodied fuse enables easy visual determination of fuse status, enhancing maintenance efficiency. It has a low breaking capacity (LBC), making it suitable for protecting electronic components and internal circuits from damage caused by overcurrent conditions.
Its standard dimensions of 20 mm length and 5 mm diameter make it compatible with common 5 x 20 mm fuse holders found in control panels and electronic devices. The time delay characteristic allows it to withstand short current surges typically encountered during motor starts or transformer energizing without blowing unnecessarily.
Certified under internationally recognized standards such as VDE, UL, SEMKO, IMQ, CSA, CCC, and BSI, this fuse meets stringent quality and safety requirements, ensuring reliable operation in industrial, automation, and electrical applications.
Applications include protection for devices and circuits from costly damage caused by overcurrent and short circuits, isolating faulty subsystems from the main system. Eaton, formerly known as Bussmann, delivers high-quality fuse solutions trusted across global industries.
Glass body allows visual fuse inspection. 125mA current rating suitable for low-current circuit protection. Time Delay fuse type supports transient current tolerance. 250V AC voltage rating for broad electrical compatibility.
Standard 5 x 20 mm cartridge size for ease of replacement. Low Breaking Capacity protects delicate electronic equipment. Meets multiple global certifications for quality assurance. Ideal for industrial automation, electrical panels, and electronics safety.
Explore a wide range of Cartridge Fuses at EnvMart for reliable electrical circuit protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton S506-125-R fuse has a current rating of 125mA.
This fuse is rated for 250V AC voltage applications.
The fuse has a diameter of 5mm and an overall length of 20mm, conforming to the standard 5 x 20 mm size.
The Eaton S506-125-R features a time delay (T) characteristic, allowing it to tolerate brief surges without blowing.
The body of this fuse is made from glass, enabling visual inspection for blown fuses.
It meets multiple approvals including VDE, UL, SEMKO, IMQ, CSA, CCC, and BSI standards.
The low breaking capacity is designed to protect delicate electronic components from damage due to overcurrent conditions.
This fuse is ideal for board and panel protection in industrial and electronic equipment, protecting devices from overcurrent and short circuits.
Yes, the time delay characteristic of this fuse provides slow-acting protection suitable for high inrush currents.
The glass body allows for easy visual inspection, enabling quick identification of a blown fuse, which enhances maintenance efficiency.
This fuse is manufactured in China.
The fuse size is 5 x 20 mm, making it compatible with standard fuse holders.
