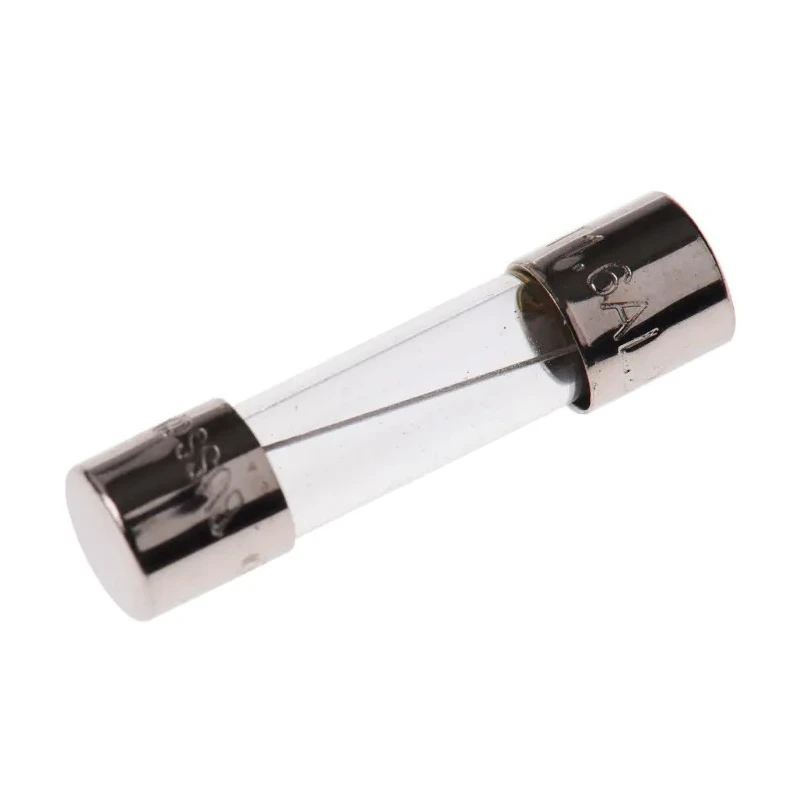

Eaton 1.6A T Glass Cartridge Fuse, 5 x 20 mm, 250V AC Time Delay S506-1.6-R

Eaton S506-1.6-R 1.6A T Glass Cartridge Fuse, measuring 5 x 20 mm and rated for 250V AC, is designed for protection of electrical circuits against overcurrents and short circuits.

This fuse features a time delay (T) characteristic, also known as slow-blow or anti-surge type, allowing it to withstand temporary current surges without blowing, making it ideal for motor loads and transformer circuits.

The glass body permits visual inspection of the fuse element to verify fuse status quickly. This size and format are widely used in panel and board level protection schemes in industrial, commercial, and residential electrical systems.

The fuse has a low breaking capacity (LBC), meaning it is designed to interrupt fault currents safely up to specified limits without damage to surrounding components.

Compliance with global standards such as VDE, UL, SEMKO, IMQ, CSA, CCC, and BSI ensures reliable performance and safety. With a compact length of 20 mm and diameter of 5 mm, it fits into standard 5 x 20 mm fuse holders.

Application areas include electrical panels, control circuits, and industrial automation systems where protection from overcurrent is critical to prevent equipment damage. Rated current: 1.6A for accurate circuit protection.

Voltage rating: 250V AC suitable for common mains applications. Time delay fuse characteristic tolerates temporary surges. Glass body for easy fuse status check without removal. Standards certified for international safety compliance.

Compact 5 x 20 mm size, widely compatible with fuse holders. Ideal for surge protection in industrial and residential use. Explore a wide range of high-quality fuses and circuit protection devices in the Electronics & Electricals category on EnvMart for safe and efficient electrical design solutions.
