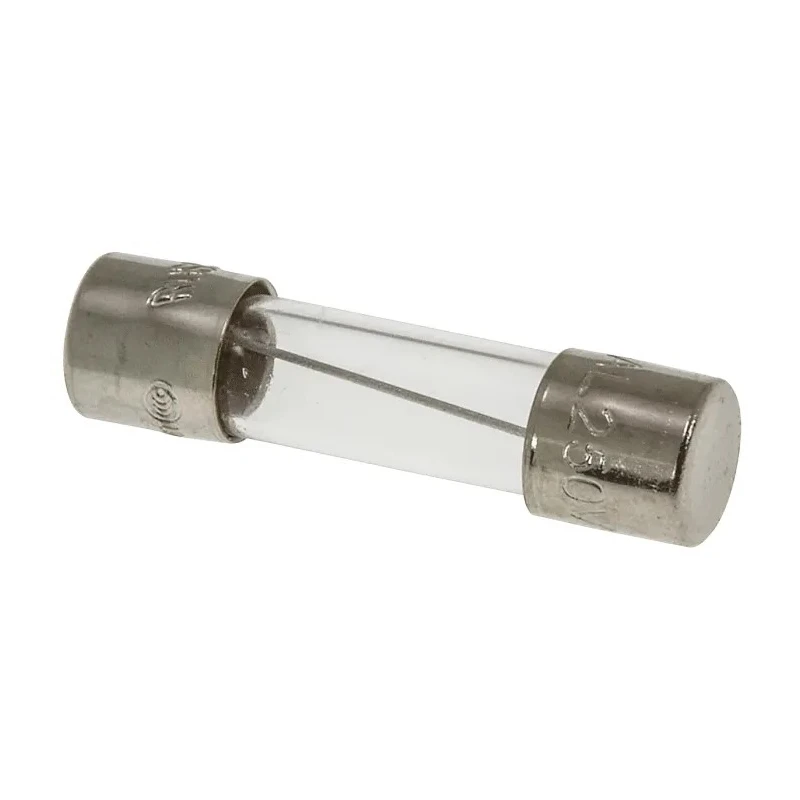

Eaton 3.15A T Glass Cartridge Fuse 5 x 20 mm 250V AC Time Delay S506-3.15-R

Eaton S506-3.15-R 3.15A T Glass Cartridge Fuse, measuring 5 x 20 mm with a glass body, provides reliable overcurrent protection for electrical and electronic circuits operating up to 250V AC. This fuse is a time delay type (T), capable of withstanding short transient surges without blowing instantly, making it ideal for applications where temporary inrush currents occur.

The glass cartridge construction allows easy visual inspection to determine whether the fuse has blown, assisting in quick fault diagnosis and maintenance. With an overall length of 20 mm and diameter of 5 mm, it fits standard fuse holders used in panel and board-level protections.

The S506 series fuse features a low breaking capacity (LBC), sufficient for controlled circuit environments and minimizing risk of damage during fault conditions. Eaton’s Bussmann fuses are engineered to meet stringent international standards including BSI, CCC, CSA, IMQ, SEMKO, UL, and VDE, ensuring quality and reliability.

Typical industrial applications include protecting electrical devices, control equipment, automation systems, and instrumentation against overcurrent damage and short circuits. It helps isolate faulty sub-circuits, maintaining overall system integrity and safety.

Maintenance teams and electrical engineers prefer this fuse for its durability, visible fuse state, and suitability in sensitive protection schemes where time delay features are advantageous.

The fuse features a time delay (T) characteristic, allowing temporary current surges without blowing immediately. Constructed from glass, the fuse body permits visual inspection to determine fuse state. The 5 mm diameter and 20 mm length conforms to standard cartridge fuse sizes for board and panel protection.

Designed to protect electronic components and circuits from overcurrent and short circuits effectively. Low breaking capacity (LBC) suitable for applications where fault current levels are controlled. This fuse complies with international safety standards including BSI, CCC, CSA, IMQ, SEMKO, UL, and VDE.

Choose Eaton Cartridge Fuses for dependable circuit protection in industrial, commercial, and laboratory settings. Explore the extensive range of Eaton electrical protection products available on EnvMart.
