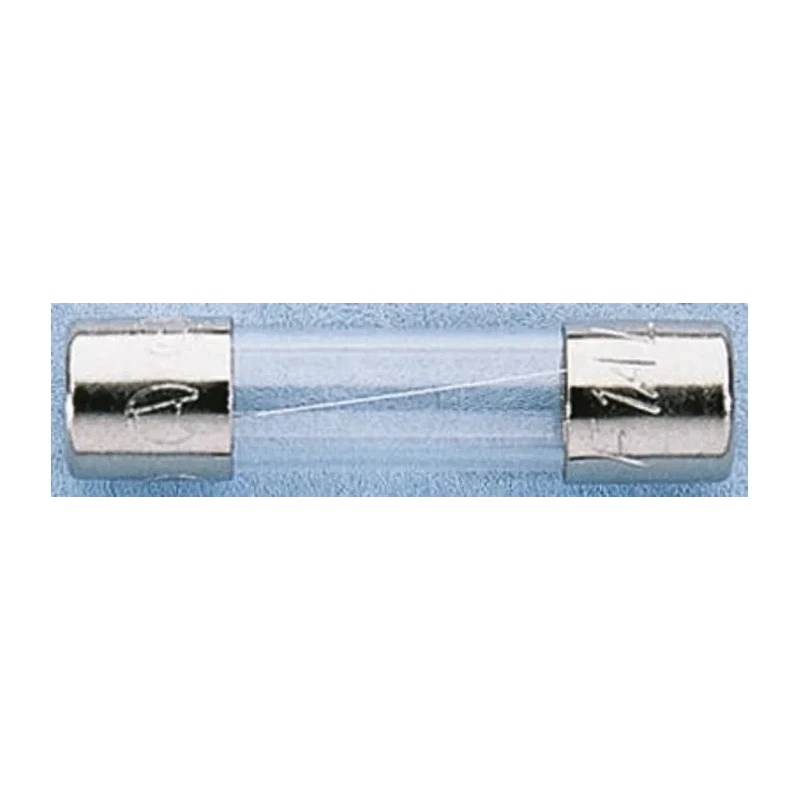

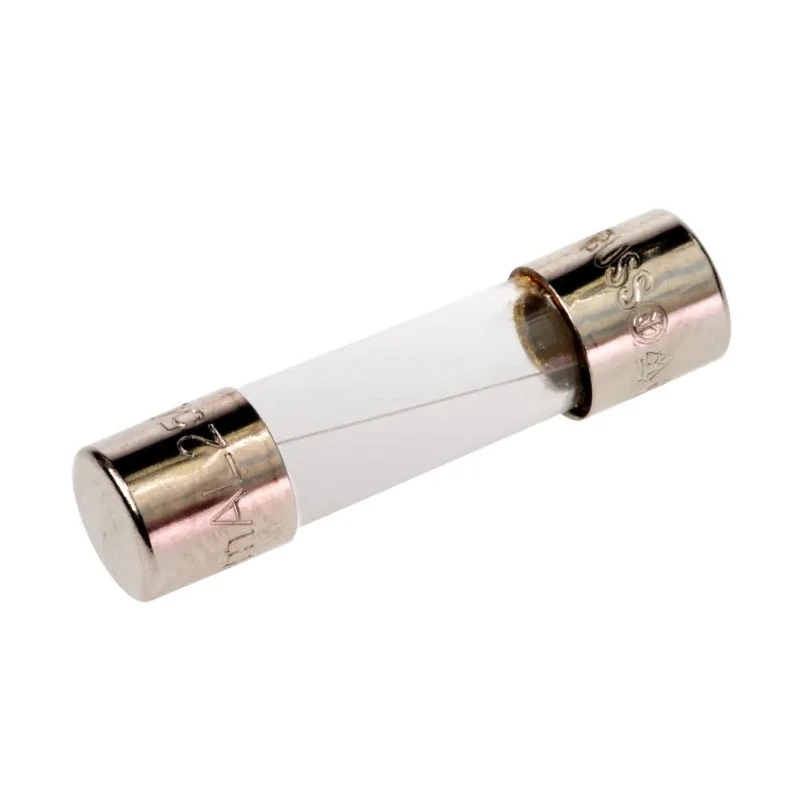

Eaton 500mA Time Delay Glass Cartridge Fuse 5 x 20 mm 250V AC S506-500-R

Eaton S506-500-R is a 500mA T-speed time delay glass cartridge fuse with dimensions 5 x 20 mm and voltage rating of 250V AC. It is engineered to protect electrical and electronic circuits from overcurrent and short circuit conditions by safely breaking the current when thresholds are exceeded.

The fuse's glass body makes it easy to visually confirm whether the fuse element has melted, facilitating quick diagnostics and maintenance. This cartridge fuse measures 20 mm in length and 5 mm in diameter, making it compatible with standard 5 x 20 mm fuse holders commonly used in panels and boards.

The T-speed time delay characteristic allows the fuse to handle brief current surges without opening instantly, making it especially suitable for circuits with transient spikes or motor start-up currents. Its low breaking capacity (LBC) rating signifies its capacity to safely interrupt fault currents without risk of explosion or rupture.

It is ideally used for protecting sensitive and critical components in industrial, laboratory, commercial, and automation electrical setups.

Designed for easy replacement and high safety, the Eaton S506-500-R protects equipment from costly damage and helps isolate faults within subsystems swiftly. Proper fuse selection and maintenance using this glass Cartridge Fuse extend device and system lifetimes.

Rated 500mA current and 250V AC voltage for standard circuit protection. Glass body enables easy blown fuse inspection. Time delay (T) characteristic for temporary surge tolerance. Standard 5 x 20 mm fuse size for broad compatibility.

Low breaking capacity (LBC) for safe fault interruption. Certified to international approvals including UL and VDE. Compact dimensions: 20 mm length, 5 mm diameter. Typical uses in industrial automation, electronics, and control circuits.
