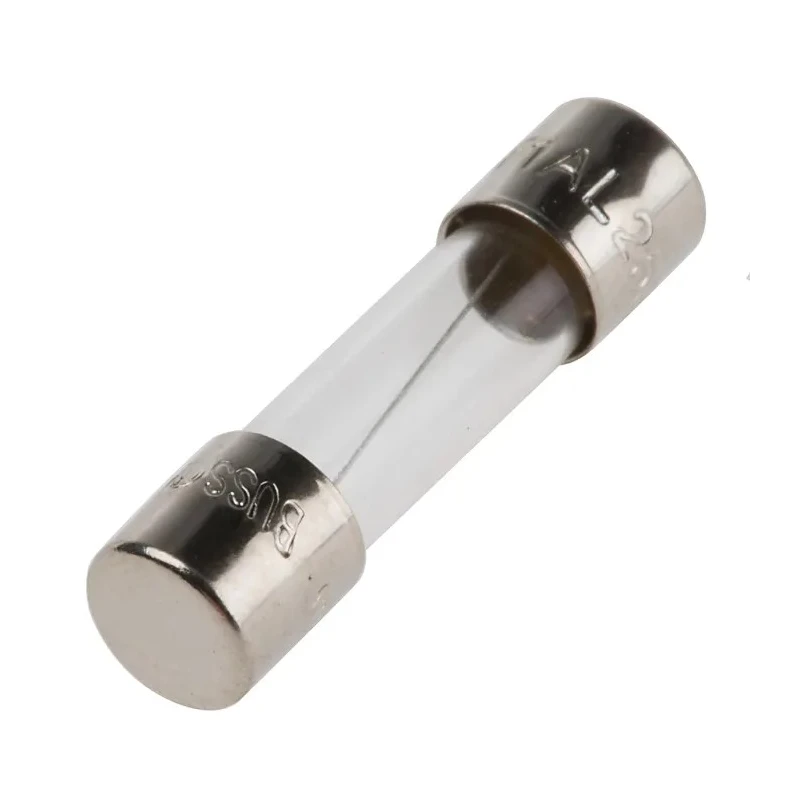

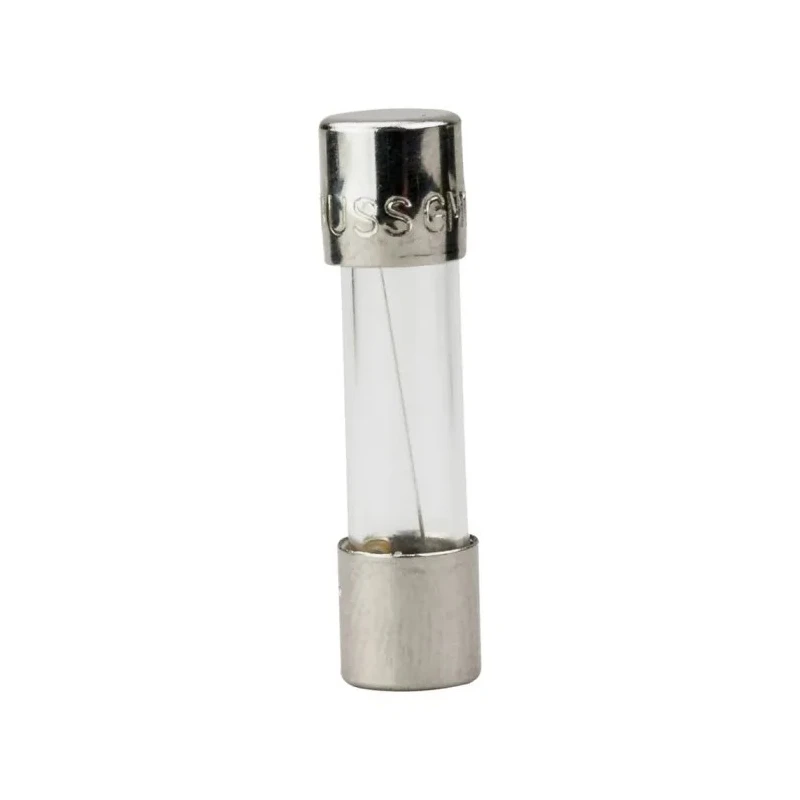

Eaton 1A Time Delay Glass Cartridge Fuse 5 x 20 mm 250V AC S506-1-R

The Eaton S506-1-R glass cartridge fuse is a high-quality, time-delay fuse designed to protect electrical circuits against overloads and short-circuits. Featuring a 1 Amp current rating and 250 Volt AC voltage rating, this fuse utilizes a durable glass tube construction measuring 5 x 20 mm, allowing for quick visual inspection of the fuse element.

The time delay characteristic of this fuse makes it especially suitable for applications with high inrush currents, preventing nuisance trips while maintaining effective circuit protection. Nickel-plated brass endcaps provide reliable electrical conductivity and enhanced mechanical durability, ensuring a long service life.

Designed to operate effectively in ambient temperatures ranging from -40°C to +125°C, the S506-1-R fuse complies with IEC 60127-2-3 and RoHS standards, reflecting Eaton’s commitment to safety and environmental compliance. With a cold resistance of approximately 0.0757 ohms and a typical interrupt rating of 87.5 Amperes at 250 VAC, it offers robust protection for various industrial and domestic electronic systems.

This fuse is ideal for use in low-power electronic devices, automation systems requiring reliable circuit protection, lighting circuits, and household appliances. Its compatibility with axial lead configurations allows for flexible installation options in diverse electrical assemblies.

Manufactured in China, this new Eaton Cartridge Fuse provides dependable performance and ensures protection against potential electrical hazards while maintaining system integrity.

The time delay feature prevents nuisance blowing from inrush currents. Low breaking capacity minimizes damage during overload conditions. Glass body allows for quick visual inspection of the fuse. Nickel-plated brass endcaps enhance conductivity and durability.

Operates reliably across a wide temperature range of -40°C to +125°C. Meets IEC 60127-2-3 and RoHS compliance standards. Typical interrupting rating of 87.5 A at 250 VAC. Compatible with axial lead fuse holder configurations.

Ideal for automation, lighting systems, and home appliances. Explore Eaton's range of electrical protection products for industrial and residential applications at EnvMart for quality and compliance assurance.
