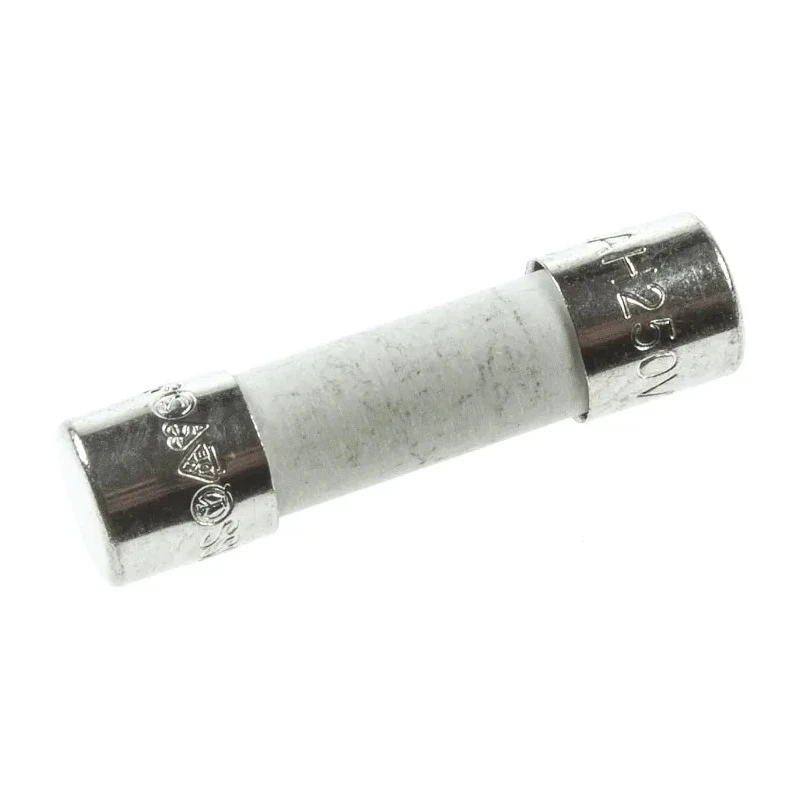

Eaton 2.5A T Ceramic Cartridge Fuse, 5 x 20 mm, 250V AC, Time Delay S505-2.5-R
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V ac |
| Diameter | 5mm |
| Brand | Eaton |
| Body Material | Ceramic |
| Model | S505-2.5-R |
| Overall Length | 20mm |
| Current Rating | 2.5A |
| Series | S505 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | IEC 60127-2, RoHS, cURus |
| Fuse Characteristics | Time Delay |
| Fuse Size | 5 x 20 mm |
| Application Category | Time Delay |
| Littelfuse 2.5A T Ceramic Cartridge Fuse, 5 x 20 mmBrand | Littelfuse |
| RS PRO 2.5A T Ceramic Cartridge Fuse, 5 x 20 mmBrand | RS PRO |
| Anti surge T HBC min fuse,2.5A 5x20mmBrand | Cooper Bussmann |
| Schurter 2.5A T Ceramic Cartridge Fuse, 5 x 20mmBrand | Schurter |
Key Features
- Features a time-delay characteristic to reduce unwanted trips during startup currents.
- Rated at 2.5A to protect low-current circuits efficiently.
- T-speed classification provides defined slow-blow response suitable for sensitive electronic components.
- Operates safely up to 250V AC for common mains and control voltages.
- Constructed from ceramic allowing operation across a wide temperature range from -55°C to 125°C.
- Complies with IEC 60127-2 standard for standardized fuse performance.
- Designed for use in control panels, instrumentation, and automation equipment.
- Compatible with 5 x 20 mm standard fuse clips and holders.
Product Description
Eaton S505-2.5-R is a 2.5A T ceramic cartridge fuse designed to provide time-delayed overcurrent protection in electronic and electrical systems. Its 5 x 20 mm fuse size and ceramic body ensure robust thermal stability and arc containment for consistent interruption performance under fault conditions.
This fuse features a time-delay characteristic that effectively reduces nuisance tripping caused by temporary inrush currents, making it ideal for control panels, instrumentation, and automation equipment. The T-speed classification delivers a slow-blow response, safeguarding sensitive electronics like printed circuit boards and small motors.
Rated for operation at up to 250V AC, the fuse supports a wide voltage range commonly present in mains and control circuits. The ceramic body enables safe operation across a broad temperature span from -55°C to 125°C, suitable for environments ranging from cold storage to higher-temperature enclosures.
Compliance with international standards IEC 60127-2, along with RoHS and cURus markings, assures quality, safety, and environmental compliance. The standard 5 x 20 mm cartridge format facilitates easy installation and replacement in existing systems and holders.
Features a time-delay characteristic to reduce unwanted trips during startup. Rated for 2.5A current protection in low current circuits. T-speed classification provides slow-blow response. Operates at up to 250V AC for common mains and control voltages.
Ceramic body for thermal stability and arc containment. Temperature range from -55°C to 125°C. Complies with IEC 60127-2, RoHS, and cURus standards. Compatible with 5 x 20 mm fuse clips and holders. Suitable for automation, control modules, sensors, and small motor circuits.
This Eaton ceramic cartridge fuse is an essential component for industrial, automation, HVAC, and electrical applications demanding reliable and precise overcurrent protection with a slow-blow time characteristic. Explore more Cartridge Fuses and circuit protection products in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton S505-2.5-R fuse has a current rating of 2.5A, designed to protect low-current circuits efficiently.
This model operates safely at a voltage rating of up to 250V AC, suitable for common mains and control voltages.
The fuse has a size of 5 x 20 mm, which is a standard format for cartridge fuses.
It operates within a temperature range of -55°C to 125°C, making it suitable for various environments.
This fuse features a time-delay characteristic, which helps reduce unwanted trips during startup currents.
Yes, it complies with IEC 60127-2, RoHS, and cURus standards, ensuring quality and safety.
The body of this fuse is constructed from ceramic, providing robust thermal stability and arc containment.
This fuse is designed for use in control panels, instrumentation, automation equipment, and sensitive electronic components.
The fuse belongs to the S505 series, which is known for its time-delay characteristics.
The T-speed classification indicates a slow-blow response, which is suitable for protecting sensitive electronics against inrush currents.
The Eaton S505-2.5-R is compatible with standard 5 x 20 mm fuse clips and holders, facilitating easy installation and replacement.
This fuse is manufactured in China, as indicated by its country of origin.
