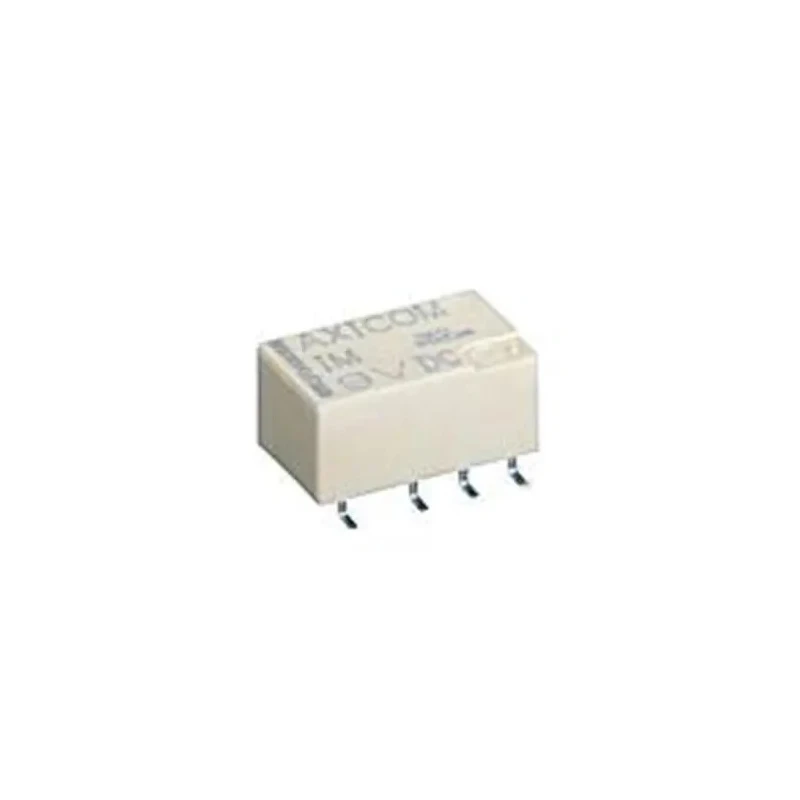

TE Connectivity Surface Mount Signal Relay, 5V DC Coil Voltage, 2A Switching Current, DPDT Contact Configuration 1462041-7
Specifications
| Country of Origin | Portugal |
|---|---|
| Brand | TE Connectivity |
| Height | 5.65mm |
| Length | 10mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | IM |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Coil Resistance | 178Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 220V ac |
| Coil Power | 140mW |
Key Features
- Compact slimline design with dimensions 10mm length and 5.65mm height for minimal PCB footprint.
- DPDT (Double Pole Double Throw) contact configuration with gold plated contacts ensures reliable signal switching.
- Low coil power consumption of 140mW for energy-efficient operation.
- Surface mount type with through-hole terminals for versatile PCB mounting.
- High switching voltage of 220V AC/DC suitable for diverse electrical environments.
- Wide operating temperature range from -40°C to 85°C for robust performance in harsh conditions.
- Hermetically sealed with IP67 rating for protection against dust and moisture.
- Meets RoHS standards and offers high mechanical shock resistance up to 300G functional, 500G survival.
Product Description
TE Connectivity 1462041-7 is a Surface Mount Signal Relay designed with a 5V DC coil voltage and capable of switching 2A current. This relay features a compact and slimline form factor measuring 10mm in length and 5.65mm in height, making it ideal for space-constrained PCB layouts. It employs a DPDT contact configuration with bifurcated, gold plated contacts to enhance signal integrity and reliability in switching applications.
The relay's coil power is only 140mW enabling efficient energy use without compromising performance. It supports switching voltages up to 220V AC/DC, suitable for a range of industrial, telecommunications, and instrumentation environments. Its surface mount through-hole terminal type offers robust mounting options on printed circuit boards.
With an operating temperature range spanning -40°C to 85°C, this relay withstands harsh environmental conditions. It is hermetically sealed to IP67 standards, protecting against dust and moisture ingress. It also offers superior mechanical shock resistance up to 300G during operation and 500G for survival, providing durability in demanding industrial installations.
The relay complies with RoHS regulations, ensuring environmentally safe manufacturing and usage. Its high insulation resistance and surge voltage handling conform to telecom industry standards including Telcordia GR 1089 and FCC Part 68.
Applications include use in telecommunications equipment, optical network terminals, office and medical equipment, test and measurement apparatus, and automotive systems. Manufactured in Portugal, it combines stringent quality controls with advanced relay technology.
Compact slimline design reduces PCB footprint. Gold plated bifurcated contacts improve reliability. Low coil power consumption enhances efficiency. Surface mount and through-hole terminals for secure PCB installation. High voltage switching supports versatile electrical applications.
Wide operating temperature range for harsh environments. Hermetically sealed construction with IP67 protection. Excellent mechanical shock resistance for industrial robustness. RoHS compliant for environmental safety. Broad application spectrum from telecom to automotive.
Explore more TE Connectivity Signal Relays and reliability solutions at EnvMart for your industrial and commercial electrical system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 5V DC.
It can switch a maximum current of 2A.
This model features a DPDT (Double Pole Double Throw) contact configuration.
The relay has a length of 10mm and a height of 5.65mm, making it compact for PCB layouts.
It supports a maximum switching voltage of 220V AC/DC.
The operating temperature range spans from -40°C to 85°C.
It is designed for surface mounting with through-hole terminals.
The contacts are made of gold plated material to enhance signal integrity.
The relay has a low coil power consumption of 140mW.
It complies with RoHS standards, ensuring environmentally safe manufacturing.
This relay is manufactured in Portugal.
