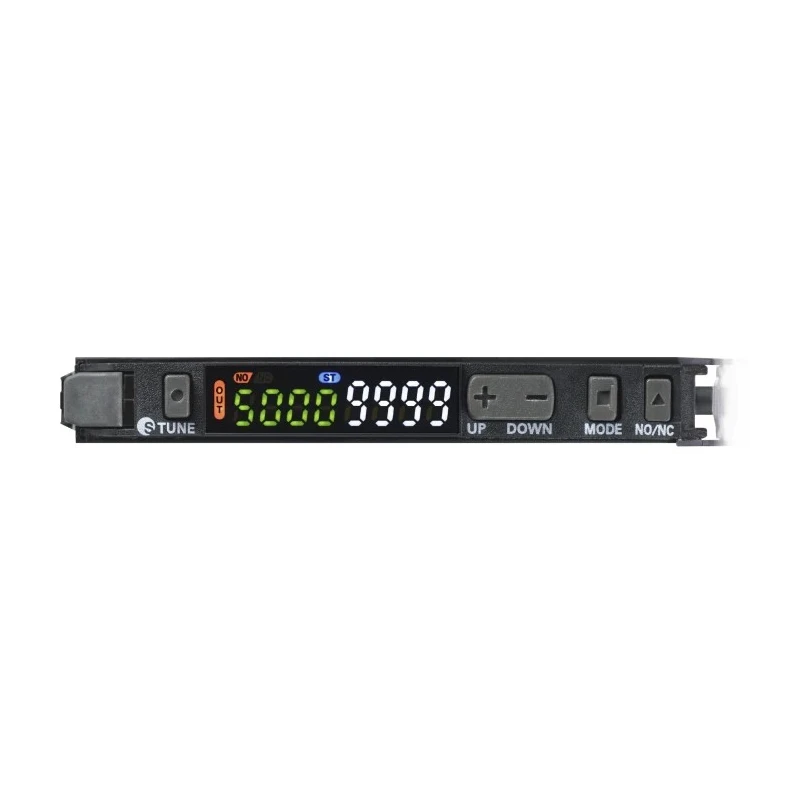

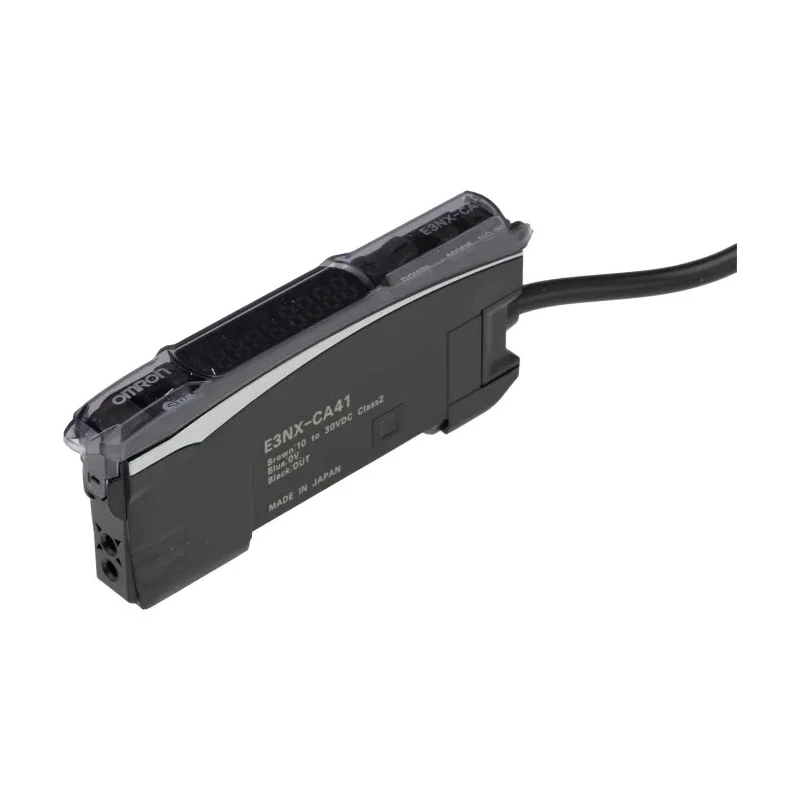

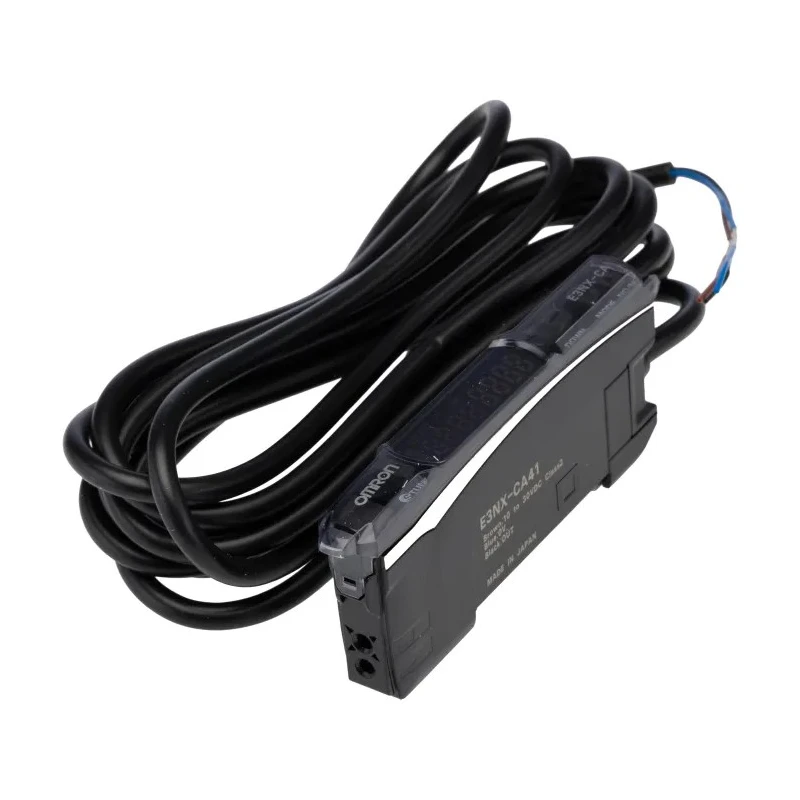

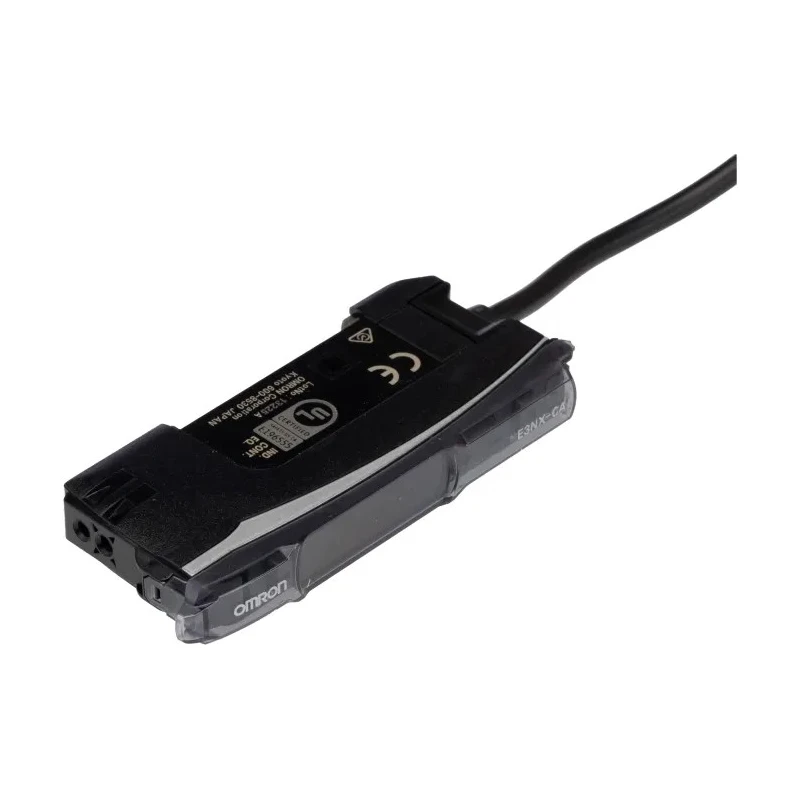

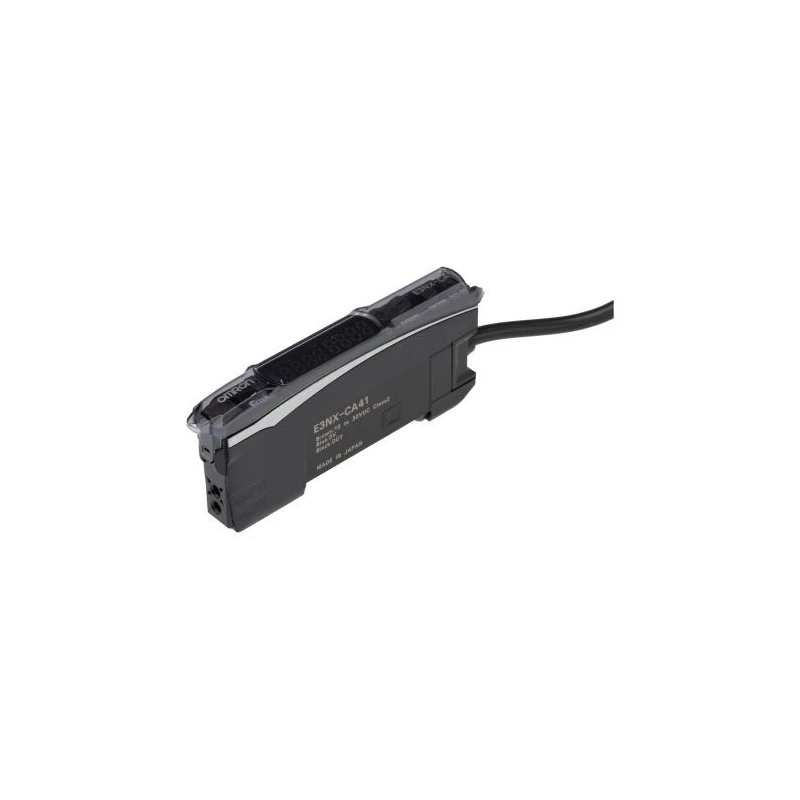

Omron Plastic Fibre Amplifier 10 mm Detection Range, PNP Output, 1.08 W Power, M12 Interface, IP20 Rated E3NX-CA41 2M
Specifications
| Country of Origin | Japan |
|---|---|
| Power Consumption | 1.08W |
| Brand | Omron |
| Response time | 50μs |
| Light Source | White LED |
| Length | 104.8mm |
| Detection range | 10 mm |
| Model | E3NX-CA41 2M |
| Depth | 10mm |
| IP Rating | IP20 |
| Width | 33.5mm |
| Mount Type | DIN Rail |
| Housing Material | Polycarbonate |
| Output type | PNP |
| Series | E3S-DC/E3NX-CA |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Pre-Wired |
| Interface Type | M12 |
| Standards/Approvals | CE, IEC 60947-1, UL Certified |
| Maximum Supply Voltage | 30V dc |
| Fibre Optic Type | Plastic |
| Omron Fibre Optic Sensor, NPN Output, 960 mW, IP50, 30 VBrand | Omron |
Key Features
- Detects subtle colour marks precisely with advanced white LED technology.
- Pre-wired configuration enables quick and easy installation.
- Compact size of 104.8 x 33.5 x 10 mm supports versatile mounting options.
- Durable polycarbonate housing with IP20 protection for typical industrial environments.
- DIN rail mounting optimizes space usage in control panels.
- Operates reliably in temperatures ranging from -25°C to 40°C.
- Fast 50μs response time increases production line throughput effectively.
- Compatible with IO-Link systems for versatile industrial integration.
Product Description
Omron E3NX-CA41 2M Plastic Fibre Amplifier is engineered to deliver precise detection of colour marks with a 10 mm detection range and PNP output type. It features a robust polycarbonate housing with IP20 rating, ensuring protection against dust and mechanical impacts typical in industrial settings.
The device incorporates a high-powered white LED light source, providing consistent and accurate illumination for detecting subtle distinctions on glossy packaging materials. Its swift response time of 50μs enhances operational productivity by minimizing downtime in high-speed production lines.
This amplifier is pre-wired with an M12 interface and designed for DIN rail mounting to optimize panel space and facilitate straightforward installation. It operates efficiently within a temperature range of -25°C to 40°C, suitable for various industrial environments.
Certified under CE, IEC 60947-1, and UL standards, the E3NX-CA41 2M meets stringent safety and quality requirements. Its compatibility with IO-Link communication allows integration into complex automation systems, making it ideal for applications in food, beverage, personal care industries, logistics, and packaging automation.
Detects subtle colour differences precisely using advanced white LED technology. Pre-wired M12 interface simplifies installation. Compact dimensions of 104.8 x 33.5 x 10 mm fit space-constrained environments. Polycarbonate housing ensures durability with IP20 protection.
Din rail mount suitable for industrial control panels. Wide operating temperature from -25°C to 40°C. Fast 50μs response time boosts production efficiency. IO-Link compatibility provides flexible integration. Compliance with CE, IEC 60947-1, and UL standards ensures safety.
This fibre amplifier is widely used in industrial, manufacturing, packaging, and automation applications for accurate and reliable fibre optic sensing. It supports high-speed production lines and environments requiring precise colour mark detection on a variety of materials.
