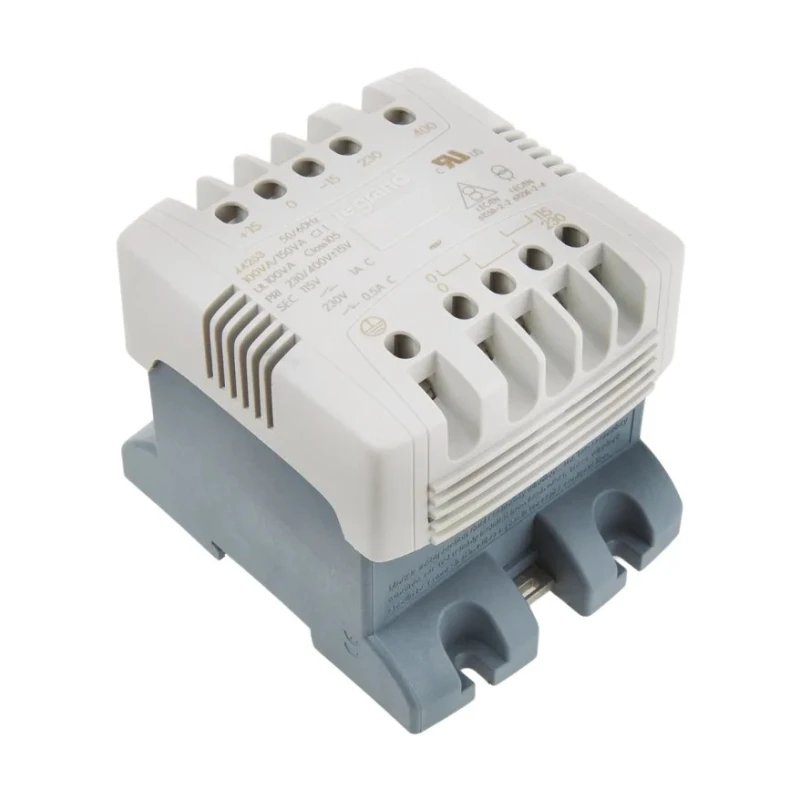

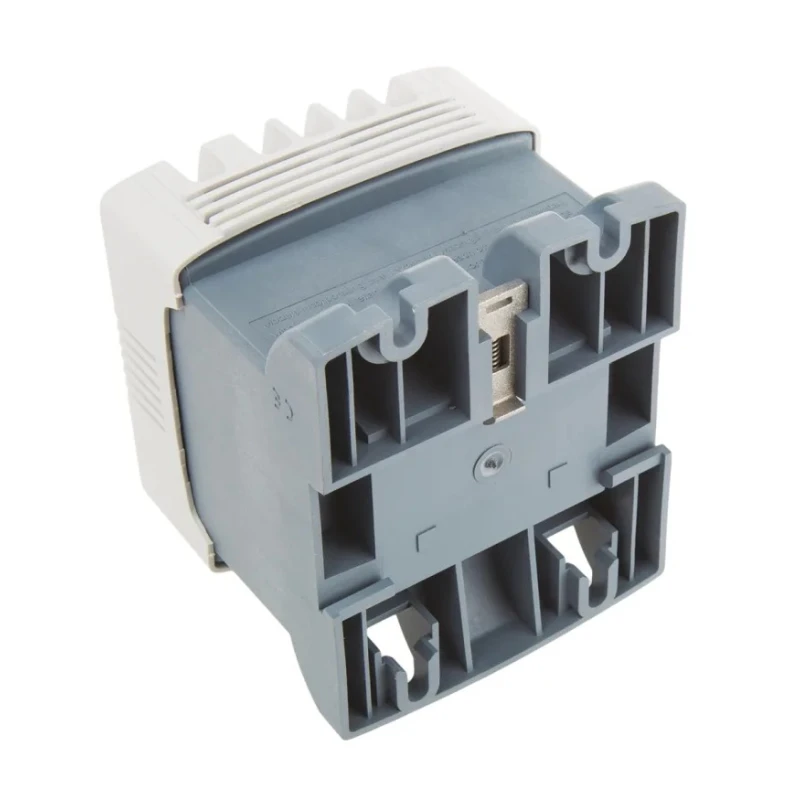

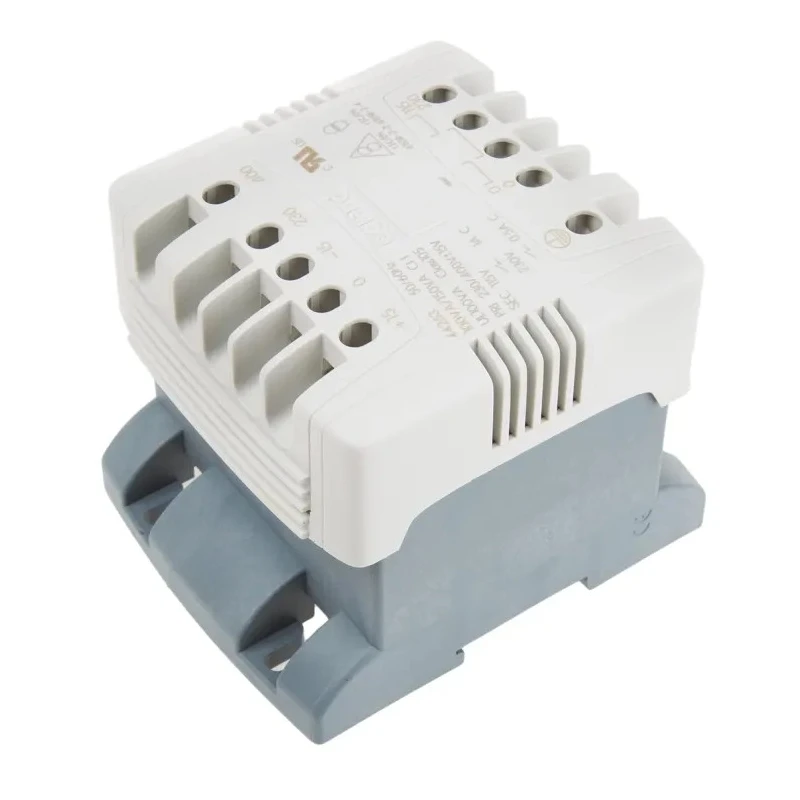

Legrand 100 VA DIN Rail Transformer, 230 to 400 V AC Primary, 230 V AC Secondary, Screw Mount, 113x94x94 mm, 2 kg 0 442 63

Legrand 0 442 63 DIN Rail Transformer is a safety isolating single phase control transformer, designed for mounting on DIN rails via screws for robust industrial installation. It features a 100 VA power rating with a wide primary voltage range from 230 to 400 V AC and a fixed secondary voltage of 230 V AC, suitable for various control and automation applications.

This transformer operates efficiently within the frequency range of 50 to 60 Hz and can withstand maximum ambient temperatures up to 50°C without performance derating. Its compact enclosure measures 113 mm in length, 94 mm in width, and 94 mm in depth, weighing 2 kg, making it ideal for installation in confined electrical panels.

Designed according to IEC and EN standards including UL506, EN 60204-1, CSA C22-2-N°66, and IEC/EN 61558 series, it assures safety and reliability in demanding industrial environments. The terminals feature finger protection rated IP2x, enhancing user safety during installation and maintenance.

The transformer includes a 0V/earth connection link to facilitate proper grounding schemes, reducing interference and ensuring system protection. It incorporates a designed interference filter between windings to minimize electrical noise in sensitive equipment.

Manufactured in France, this transformer is suitable for industrial, manufacturing, electrical installations, HVAC systems, and other control circuit applications requiring reliable voltage transformation and isolation.

100 VA power rating suitable for control transformer applications. Primary voltage range from 230 to 400 V AC and a fixed 230 V AC secondary voltage. Screw-mount DIN rail installation with dimensions of 113 mm length, 94 mm width, and 94 mm depth.

Weight of 2 kg ensuring compact size and easy mounting. Operating frequency range of 50 to 60 Hz for compatibility. Maximum operating temperature rating of 50°C without de-rating. Compliance with UL506, EN 60204-1, CSA C22-2-N°66, IEC/EN 61558-2-6 and other industrial standards.

Equipped with terminals having finger protection (IP2x) for safety. Includes 0V/earth connection link for system grounding. Manufactured in France ensuring quality assurance. Browse EnvMart's extensive collection of DIN Rail Transformers and related components for industrial and electrical system requirements.
