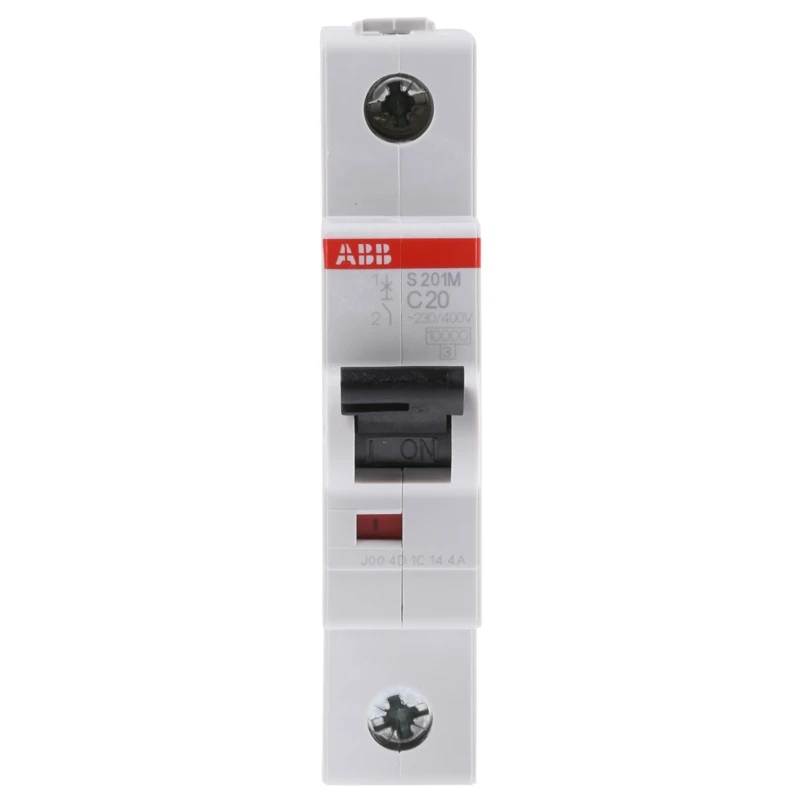

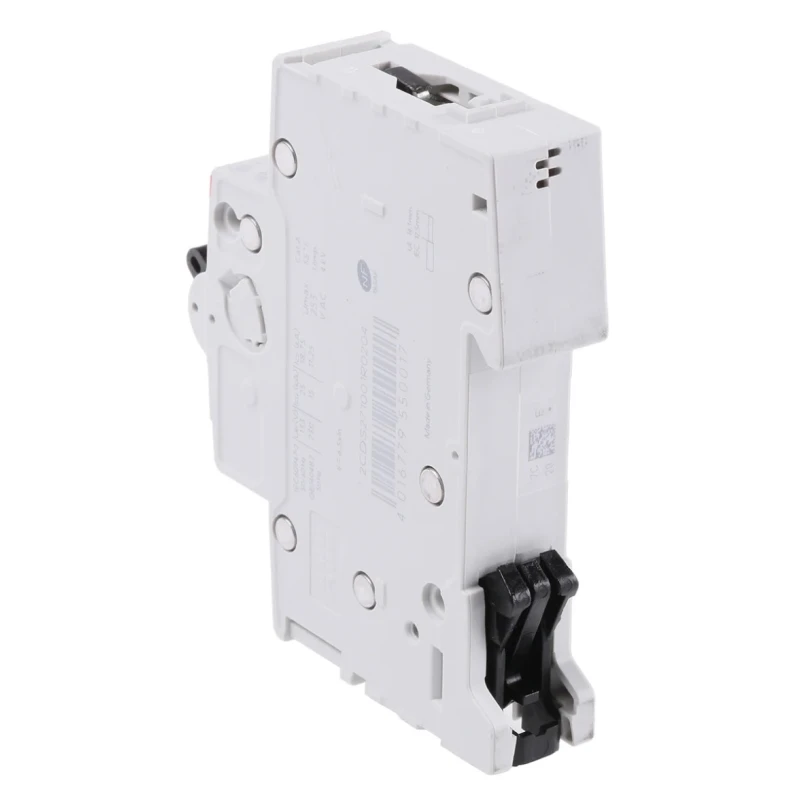

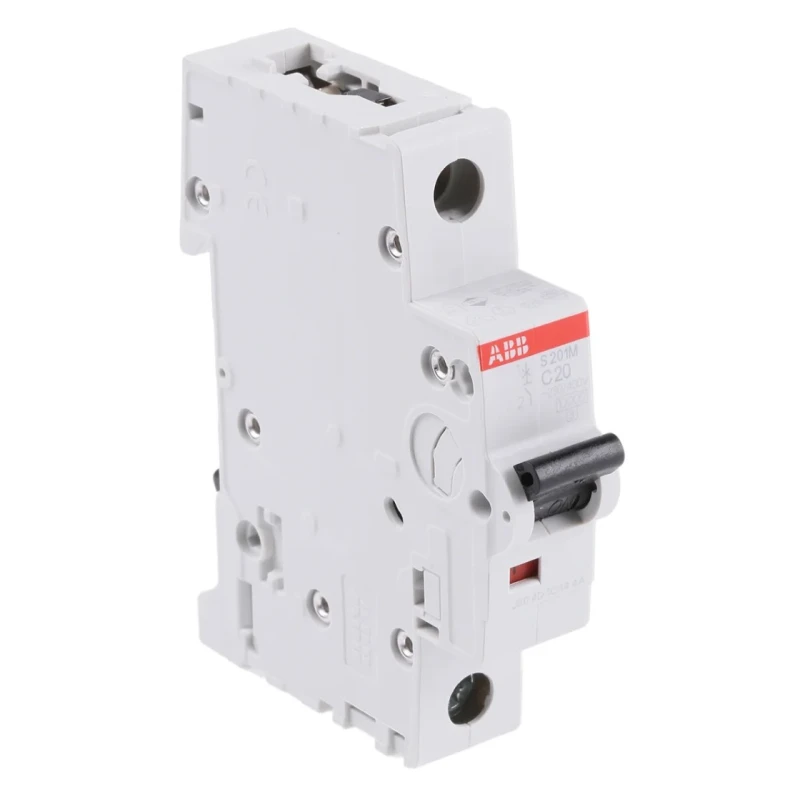

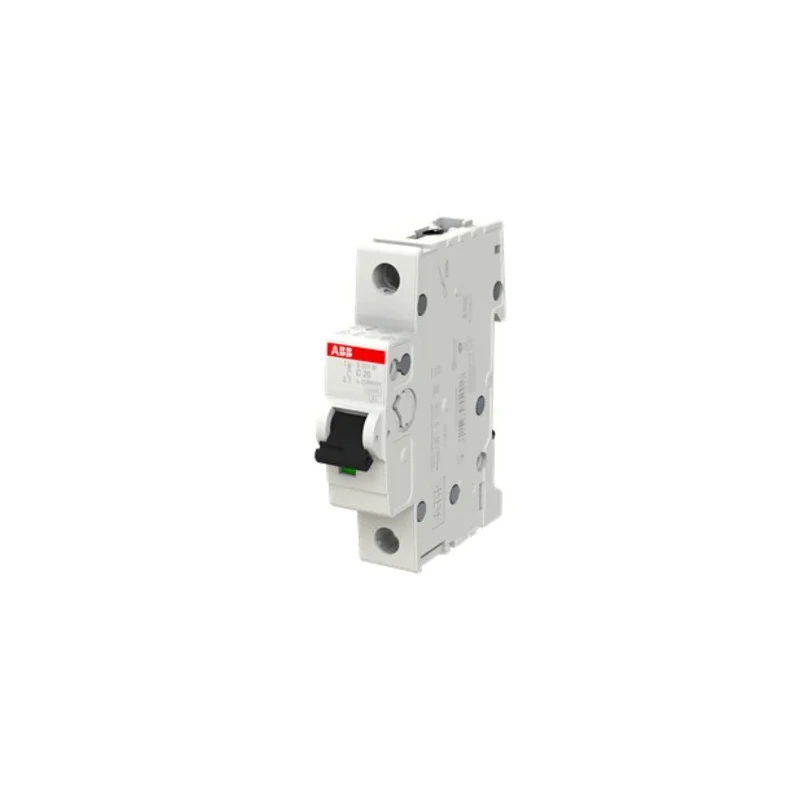

ABB Miniature Circuit Breaker System Pro M Compact, 1-Pole, 20A, Type C, 253V AC, 72V DC, 10kA 2CDS271001R0204 S201M-C20

ABB 2CDS271001R0204 S201M-C20 Miniature Circuit Breaker System Pro M Compact is a high-performance device designed to protect electrical installations in commercial, industrial, and residential environments. It offers reliable overload and short-circuit protection with fast Type C tripping characteristics optimized for medium-to-high surge currents.

This 1-pole circuit breaker is engineered for rated AC voltage of 253V and DC voltage of 72V, providing versatile application across various electrical networks. The device mounts quickly and securely on DIN rails with a snap-on mechanism, facilitating streamlined installation and maintenance.

Robust protection features include a thermal tripping mechanism that shields against overloads and an electromechanical device for swift short-circuit interruption. Its rated impulse withstand voltage of 4kV ensures resilience against voltage spikes, safeguarding connected equipment.

Additional benefits include easy-to-read LED indicators that display the contact position clearly, enhancing operational awareness and safety. The circuit breaker is rated for an electrical endurance of 20,000 cycles, promising long-term reliability in demanding conditions.

Field-proven IP20 and IP40 ratings confirm the device's protection against accidental contact and ingress of solid objects, respectively. Compact physical dimensions of 17.5mm width, 88mm height, and 76mm depth allow efficient space utilization in panel assemblies.

Manufactured in Germany, this MCB complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards, ensuring quality and performance conformity. It finds applications in electric motors, fluorescent lighting, and various inductive loads requiring dependable circuit protection.

This ABB Miniature Circuit Breaker System Pro M Compact model 2CDS271001R0204 S201M-C20 is an ideal safety component for electrical installations demanding quick tripping performance and reliable overload protection.

Designed for commercial, industrial, and residential low and medium voltage applications. DIN rail mounting enables fast installation and integration into existing systems. Meets international safety and performance standards for MCBs.

Compact size supports efficient circuit panel design. Robust construction ensures durability and long operational life. Explore more ABB electrical protection devices and circuit breakers on EnvMart to find the right fit for your industrial and commercial electrical needs.
