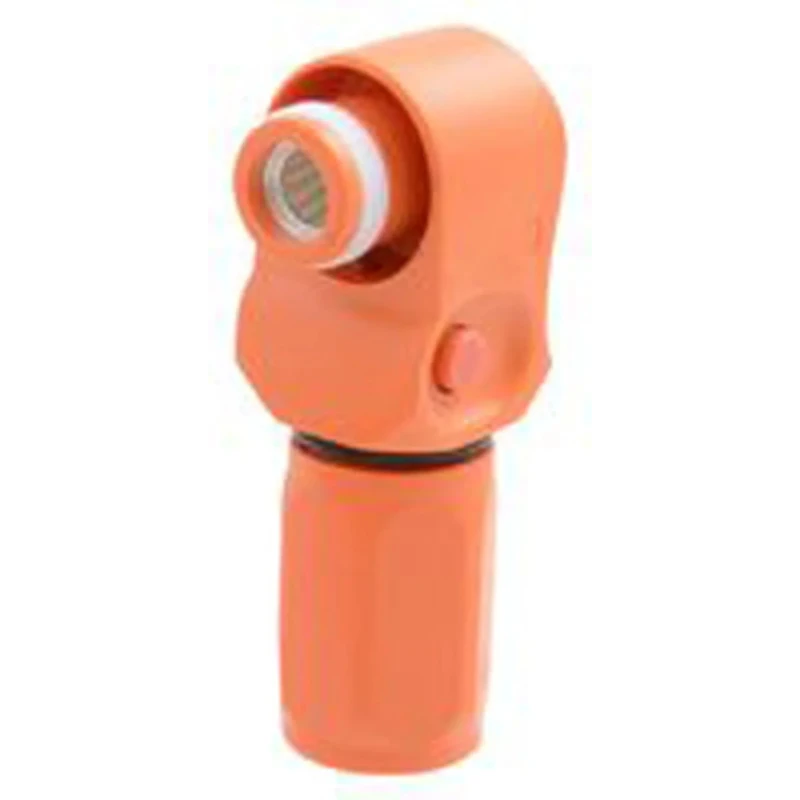

Amphenol Industrial SURLOK PLUS RADSOK EV Connector Male 200A 1000V Right Angle Crimp Termination SLPPB50BSR / C10-730188-200
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Red |
| Orientation | Right Angle |
| Current | 200A |
| Height | 75.6mm |
| Model | SLPPB50BSR / C10-730188-200 |
| Depth | 29mm |
| IP Rating | IP67 |
| Connector Type | RADSOK |
| Width | 21.6mm |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | SURLOK PLUS |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pin Diameter | 8mm |
| Number of Rows | 1 |
| Wire size | 50mm² |
| Operating Voltage | 1000V |
| For Use With | SurLok 1-Position Receptacle |
| Standards/Approvals | UL 94-V0 |
| Number of Contacts | 1 |
| Contact Gender | Female |
| Connector Gender | Male |
| Better World Claim | Renewable Energy Solution |
| Amphenol Industrial, SURLOK PLUS RADSOK EV Connector Male, 200ABrand | Amphenol Industrial |
Key Features
- Rated for 200 Amp continuous current and 1000 Volt operating voltage.
- Features RADSOK contact technology for high conductivity and tensile strength.
- Compact right angle design with 75.6mm height, 29mm depth, and 21.6mm width.
- Crimp termination supports 50mm² wire size for secure connections.
- Thermoplastic housing with IP67 ingress protection and UL 94-V0 flammability rating.
- Operates reliably from -40°C to 125°C temperature range.
- Includes spring locking and 360° rotation for flexible installation.
- Keyed design prevents mismating to ensure safety.
Product Description
Amphenol Industrial SLPPB50BSR / C10-730188-200 SURLOK PLUS RADSOK EV Connector Male is engineered for demanding electric vehicle (EV) and heavy industrial power connections. This connector supports a continuous current of 200 Amps at an operating voltage of 1000 Volts, ensuring robust and reliable power delivery in rigorous conditions.
The connector employs RADSOK contact technology, delivering a highly conductive surface area and excellent tensile strength. Its right angle orientation facilitates compact wire routing with dimensions of 75.6mm height, 29mm depth, and 21.6mm width, making it suitable for installations with limited space.
The termination type is crimp, accepting 50mm² wire sizes, and the connector mates with the SurLok 1-Position Receptacle, providing keying to prevent mismating and ensure safe connections. It features a red thermoplastic housing and copper alloy contacts, giving excellent mechanical strength and environmental resistance with an IP67 ingress protection rating.
Designed to perform in harsh environments, the connector operates in temperatures ranging from -40°C to 125°C and complies with UL 94-V0 flammability standards. The plug provides spring locking for secure, vibration-resistant coupling, and allows 360-degree rotation for installation flexibility. Touch-proof and quick mating, it supports fast maintenance and assembly.
This connector series is commonly applied in electric vehicles, hybrid electric vehicles, rail mass transit systems, process control equipment, medical and battery management systems, and heavy machinery. Its superior build quality and performance characteristics make it a preferred choice for sustainable and safe energy solutions.
Rated for 200A continuous current and 1000V operating voltage. RADSOK contact technology ensures high conductivity and mechanical strength. Right angle, compact design with 75.6mm height, 29mm depth, and 21.6mm width. Crimp termination compatible with 50mm² wires.
Thermoplastic housing with IP67 protection and UL 94-V0 flammability rating. Operates between -40°C and 125°C. Spring locking mechanism with 360° rotation and keying for secure connection. Ideal for EVs, rail transit, battery management, and industrial equipment.
This high-performance connector is part of the Amphenol Industrial SURLOK PLUS range, delivering trusted connectivity solutions for challenging industrial and commercial applications. Explore EnvMart’s range of EV connectors and power Connectors for comprehensive connectivity options.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a continuous current of 200 Amps and an operating voltage of 1000 Volts.
It features a crimp termination type that supports a wire size of 50mm² for secure connections.
The connector has a height of 75.6mm, a depth of 29mm, and a width of 21.6mm.
It has an IP67 ingress protection rating, ensuring it is dust-tight and can withstand immersion in water.
The housing is made of thermoplastic, and the contacts are composed of copper alloy.
It operates reliably within a temperature range of -40°C to 125°C.
The connector features a keyed design that prevents mismating, ensuring safe connections.
This connector has a right angle orientation, which facilitates compact wire routing.
It is designed to mate with the SurLok 1-Position Receptacle.
The thermoplastic housing complies with the UL 94-V0 flammability rating.
It includes a spring locking mechanism that provides secure, vibration-resistant coupling.
This connector is commonly used in electric vehicles, hybrid electric vehicles, rail mass transit systems, and heavy machinery.
