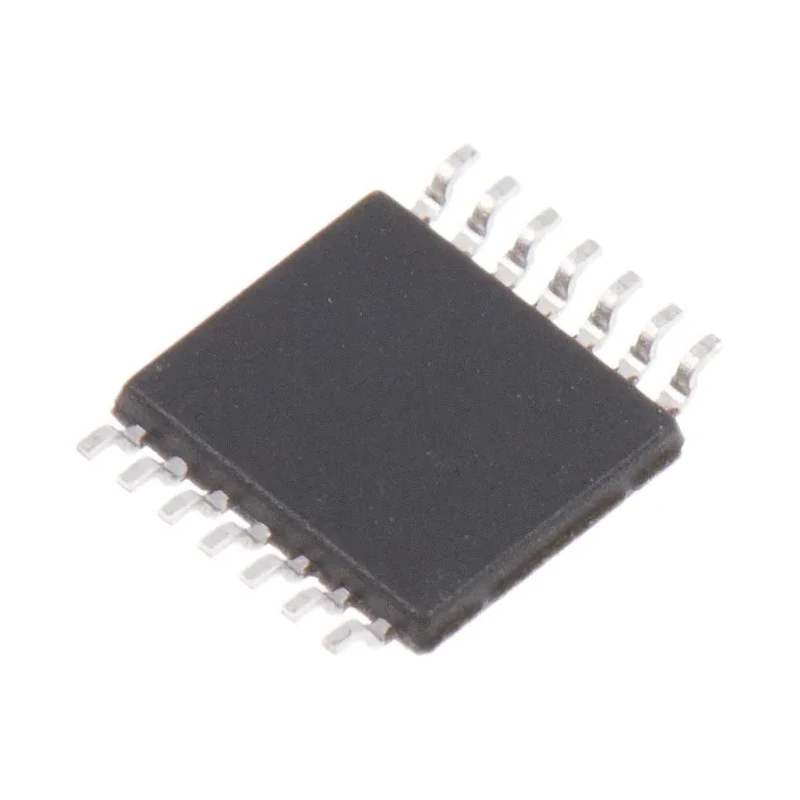

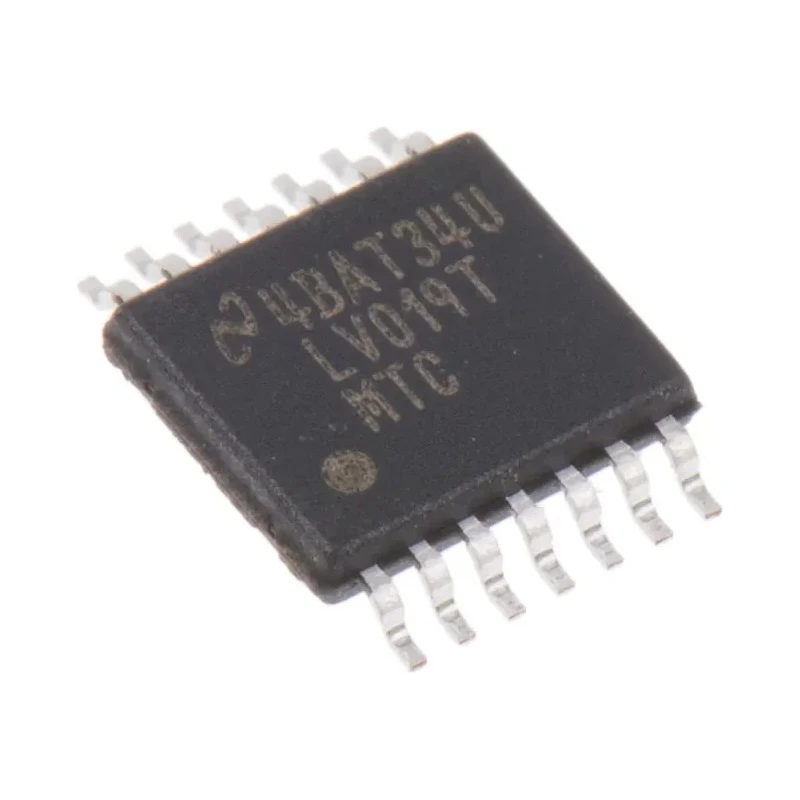

Texas Instruments Transceiver IC 2 Drivers, 1 Receiver LVDS LVCMOS LVTTL 14-Pin TSSOP DS90LV019TMTC/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 900μm |
| Length | 5mm |
| Model | DS90LV019TMTC/NOPB |
| Mount Type | Surface |
| Output type | Receiver, Driver |
| Series | DS90LV019 |
| Input Type | LVDS, LVCMOS, LVTTL |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Sub Type | Transceiver |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Number of Elements per Chip | 2 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Number of Drivers | 2 |
| Number of Receivers | 1 |
| Transmission Data Rate | 100Mbps |
| Differential Input High Threshold Voltage | 100mV |
| Differential Input Low Threshold Voltage | -100mV |
Key Features
- Includes 2 differential line drivers and 1 receiver per chip.
- Supports LVDS, LVCMOS, and LVTTL input types for versatile applications.
- Operates within a supply voltage range of 3V to 3.6V.
- Compact 14-pin TSSOP surface-mount package measuring 5 mm length and 900 µm height.
- Operating temperature range from -40°C to 85°C with ESD protection for reliable performance.
- Compliant with RoHS standards ensuring environmental compliance.
- Ideal for high-speed communication protocols such as Firewire, SATA, and SCSI.
- Differential input threshold voltages of ±100 mV for accurate signal detection.
Product Description
Texas Instruments DS90LV019TMTC/NOPB Transceiver IC is designed to provide a robust interface solution for high-speed data transmission with two LVDS, LVCMOS, and LVTTL line drivers and one receiver integrated in a single chip. Packaged in a 14-pin TSSOP surface-mount configuration, it ensures easy PCB assembly in compact designs.
Operating within a voltage supply range of 3V to 3.6V, the IC supports a transmission data rate of up to 100 Mbps, suitable for applications such as Firewire, SATA, and SCSI communication standards. The package dimensions are optimized for space-saving implementations, featuring a 5 mm length and 900 µm height.
Engineered to operate reliably across industrial temperature ranges (-40°C to 85°C), the device includes built-in ESD protection, enhancing durability in challenging environments. Compliance with RoHS regulations confirms its suitability for environmentally-conscious manufacturing.
This transceiver IC offers differential input high and low threshold voltages of +100 mV and -100 mV respectively, ensuring signal integrity during transmission. Surface mount design allows streamlined manufacturing with automated assembly lines.
Includes 2 differential line drivers and 1 receiver per chip. Supports LVDS, LVCMOS, and LVTTL input types for versatile applications. Operates within a supply voltage range of 3V to 3.6V. Compact 14-pin TSSOP surface-mount package measuring 5 mm length and 900 µm height.
Operating temperature range from -40°C to 85°C with ESD protection for reliable performance. Compliant with RoHS standards ensuring environmental compliance. Ideal for high-speed communication protocols such as Firewire, SATA, and SCSI.
Differential input threshold voltages of ±100 mV for accurate signal detection.
This transceiver IC is well-suited for industrial, laboratory, manufacturing, and commercial electronics equipment requiring reliable high-speed data interfaces. It supports improved production efficiency through its ready-to-mount package and robust design.
Explore more semiconductor solutions and interface ICs to complement your design needs in the Electronics & Electricals category at EnvMart.
Explore more products in our LVDS Interface Ics category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data transmission rate of this model is 100 Mbps, suitable for high-speed communication applications.
It supports LVDS, LVCMOS, and LVTTL input types, providing versatility for various applications.
This unit operates within a supply voltage range of 3V to 3.6V.
The package measures 5 mm in length and has a height of 900 µm, designed for compact installations.
It operates reliably across an industrial temperature range from -40°C to 85°C.
This transceiver IC includes 2 differential line drivers and 1 receiver per chip.
Yes, it includes built-in ESD protection to enhance reliability in challenging environments.
Yes, it is compliant with RoHS standards, ensuring environmental compliance.
The differential input high threshold voltage is +100 mV and the low threshold voltage is -100 mV.
This model uses a surface mount design, facilitating easy PCB assembly.
It is ideal for high-speed communication protocols such as Firewire, SATA, and SCSI.
This transceiver IC has a pin count of 14.
