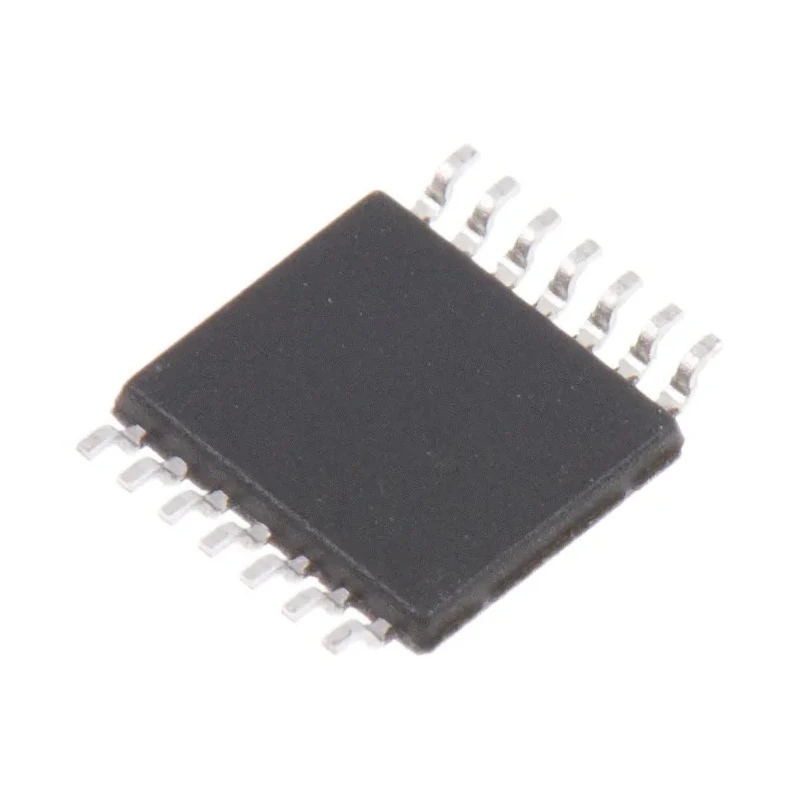

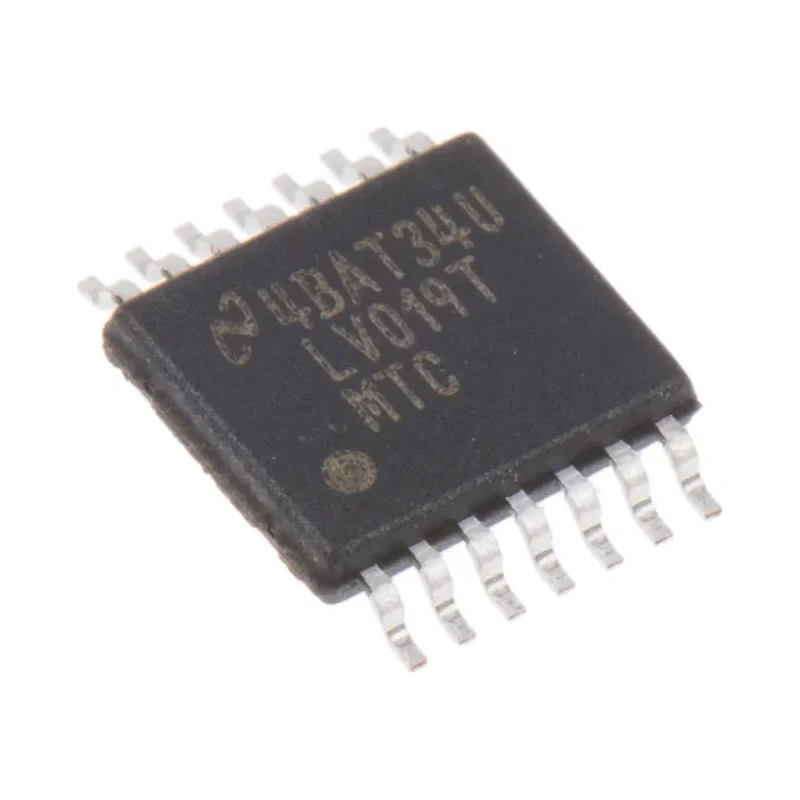

Texas Instruments Transceiver IC 2 LVDS, LVCMOS, LVTTL Receiver, Driver, Surface Mount, 14-Pin TSSOP DS90LV019TMTC/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 900μm |
| Length | 5mm |
| Model | DS90LV019TMTC/NOPB |
| Mount Type | Surface |
| Output type | Receiver, Driver |
| Series | DS90LV019 |
| Input Type | LVDS, LVCMOS, LVTTL |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Sub Type | Transceiver |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Number of Elements per Chip | 2 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Number of Drivers | 2 |
| Number of Receivers | 1 |
| Transmission Data Rate | 100Mbps |
| Differential Input High Threshold Voltage | 100mV |
| Differential Input Low Threshold Voltage | -100mV |
| DS90LV019TMTC, LVDS ReceiverBrand | National Semiconductor |
Key Features
- Operates with a minimum supply voltage of 3V ensuring low power consumption.
- Surface mount package type with a 14-pin TSSOP for compact PCB design.
- Supports differential input high and low threshold voltages at 100mV and -100mV respectively.
- ESD protection included for device robustness in electronic environments.
- Allows operation in temperatures ranging from -40°C to 85°C for wide industrial applications.
- Complies with RoHS standards ensuring environmental safety.
- Compact dimensions with 900μm height and 5mm length support integration into space-limited equipment.
- Designed for LVDS communication over twisted-pair copper cables enabling high-speed data transfer.
Product Description
Texas Instruments DS90LV019TMTC/NOPB is a dual-use transceiver IC integrating 2 LVDS, LVCMOS, and LVTTL drivers with 1 receiver optimized for reliable high-speed data transmission at 100Mbps. This device operates on a supply voltage range from 3V to 3.6V and supports differential input thresholds allowing precision signal interpretation.
Housed in a surface mount 14-pin TSSOP package, it offers compact mounting suitable for modern electronics. The product features robust electrostatic discharge protection, which increases its durability in demanding industrial, laboratory, and communications applications.
Designed to operate over a broad temperature range from -40°C to 85°C, it is ideal for harsh environments and various industrial use cases including data communications interfaces such as Firewire, SATA, and SCSI.
Compliant with RoHS standards, this transceiver ensures environmentally responsible use while maintaining high performance. Its physical footprint, measuring 5mm in length and 900μm in height, supports integration into compact systems requiring efficient data interfacing.
Operates at a supply voltage of 3V to 3.6V. Includes 2 drivers and 1 receiver for differential signaling. Meets RoHS compliance standards. Incorporates ESD protection for enhanced reliability. Has a compact 14-pin TSSOP surface mount package.
Supports operating temperatures from -40°C to 85°C. Designed for LVDS, LVCMOS, and LVTTL signaling. Facilitates high-speed data transmission at 100Mbps.
This transceiver IC is suitable for industrial automation, communication systems, data transfer applications, and other electronics requiring robust LVDS signaling capabilities. Its compact size and comprehensive operational specifications make it an essential component for design engineers and manufacturers.
Explore the Electronics & Electricals category at EnvMart for a wide selection of semiconductor interface ICs and other components to complement your design and manufacturing needs.
Explore more products in our LVDS Interface Ics category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data transmission rate of this model is 100Mbps.
It operates within a supply voltage range of 3V to 3.6V.
This unit supports LVDS, LVCMOS, and LVTTL signaling.
The package dimensions are 5mm in length and 900μm in height.
It can operate in temperatures ranging from -40°C to 85°C.
This transceiver includes 2 drivers and 1 receiver.
Yes, it complies with RoHS standards.
This model uses a surface mount type.
The differential input high threshold voltage is 100mV.
The differential input low threshold voltage is -100mV.
It is suitable for industrial automation, communication systems, and data transfer applications.
It incorporates ESD protection to enhance reliability in electronic environments.
