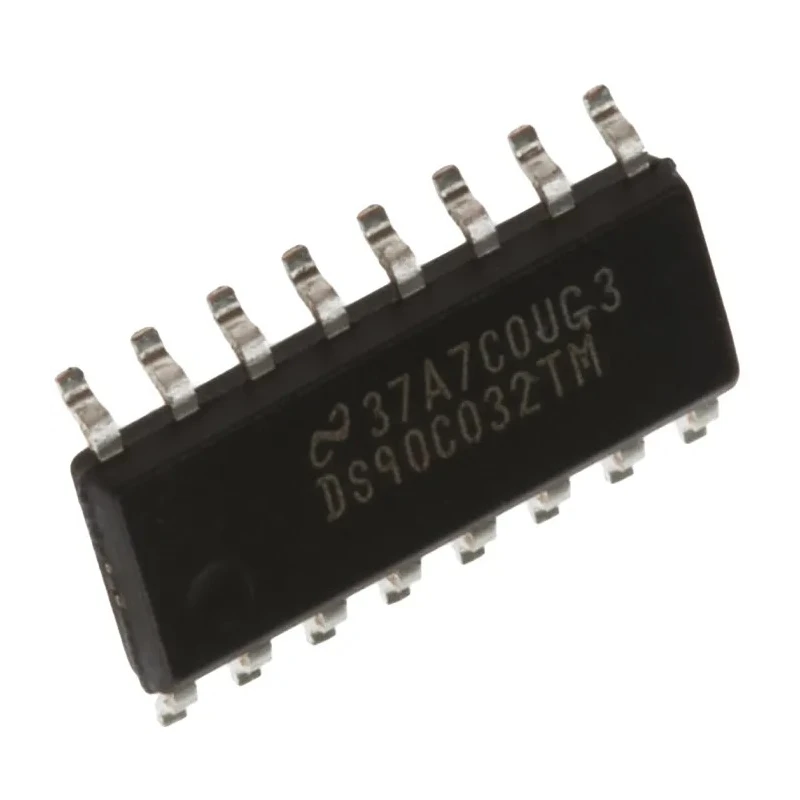

Texas Instruments Receiver IC 4 LVDS TTL, 16-Pin SOIC DS90C032TM/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.45mm |
| Length | 9.91mm |
| Model | DS90C032TM/NOPB |
| Mount Type | Surface |
| Output type | TTL |
| Series | DS90C032 |
| Input Type | LVDS |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Sub Type | Receiver |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 16 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4.5V |
| Number of Drivers | 4 |
| Number of Receivers | 4 |
| Transmission Data Rate | 155Mbps |
| Differential Input High Threshold Voltage | 100mV |
| Differential Input Low Threshold Voltage | -100mV |
Key Features
- This receiver IC supports 4 LVDS drivers and 4 receivers within a 16-pin SOIC package.
- It operates at a transmission data rate of 155 Mbps, enabling high-speed data communication.
- The device has a supply voltage range from 4.5V to 5.5V ensuring compatibility with standard logic levels.
- It provides differential input threshold voltages of 100mV high and -100mV low for reliable signal detection.
- RoHS compliant and equipped with ESD protection for enhanced durability.
- Designed to operate within a temperature range of -40°C to 85°C for industrial and commercial environments.
- Compact dimensions include a length of 9.91mm and a height of 1.45mm for space-efficient PCB integration.
- Ideal for applications including Firewire, SATA, and SCSI communication interfaces.
Product Description
Texas Instruments DS90C032TM/NOPB is a surface-mounted receiver integrated circuit specifically engineered for low-voltage differential signaling (LVDS) applications. Featuring 4 drivers and 4 receivers, this 16-pin SOIC packaged device provides TTL output signals compatible with various digital systems. It supports high data transmission speeds up to 155 Mbps, making it suitable for rapid data interfaces such as Firewire, SATA, and SCSI.
The IC operates over a supply voltage range of 4.5V to 5.5V and offers differential input high and low threshold voltages of 100mV and -100mV respectively, ensuring accurate signal reception and noise immunity. It conforms to RoHS standards and includes Electrostatic Discharge (ESD) protection to enhance device reliability during handling and operation.
With an operating temperature range from -40°C to 85°C, the DS90C032TM/NOPB is designed for robustness in industrial and commercial applications. Its compact physical dimensions (9.91mm length and 1.45mm height) facilitate efficient layouts on printed circuit boards (PCBs) where space is constrained.
This device integrates 4 drivers and 4 receivers for multiplexed signaling in a single compact IC. Supports TTL output for compatibility with standard digital logic systems. Ensures compliance with RoHS environmental standards, promoting safer electronics manufacturing.
Enhanced ESD protection mitigates risks during handling and assembly processes. Compact 16-pin SOIC package designed for surface mounting saves PCB area. Wide operating temperature range enables use in varied industrial conditions.
High-speed data transmission rates enable its use in advanced communication protocols.
The DS90C032TM/NOPB is an essential component for high-speed data communication systems, offering a reliable and compact receiver solution for LVDS interface needs. It finds extensive applications across electronics demanding robust and fast signaling solutions, including industrial automation, computer interfaces, and data acquisition systems.
EnvMart offers this semiconductor device suitable for advanced engineering projects, electronic manufacturing, and prototyping purposes.
Explore more products in our LVDS Interface Ics category.
