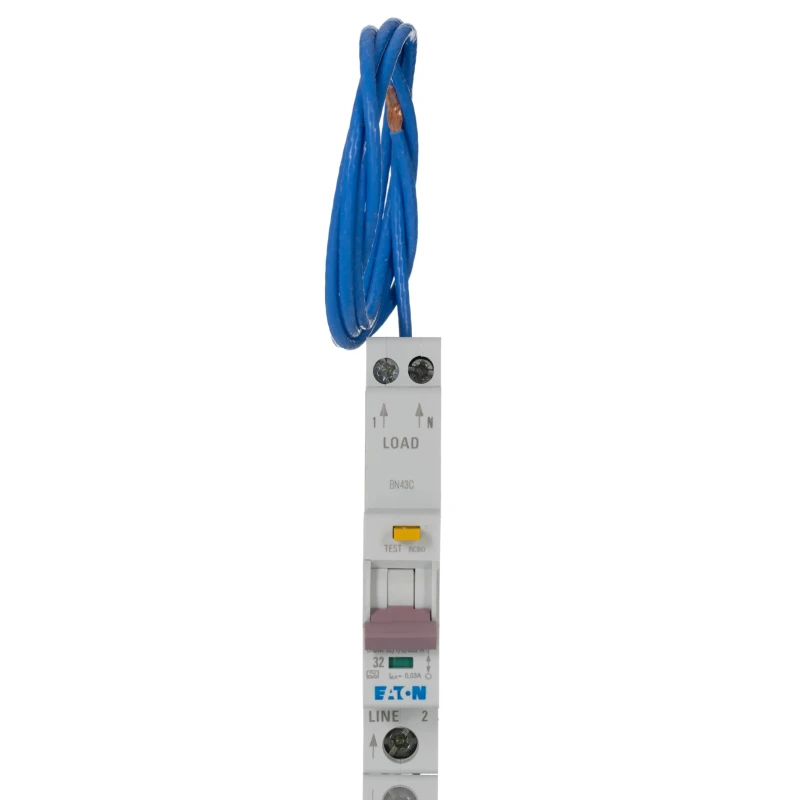

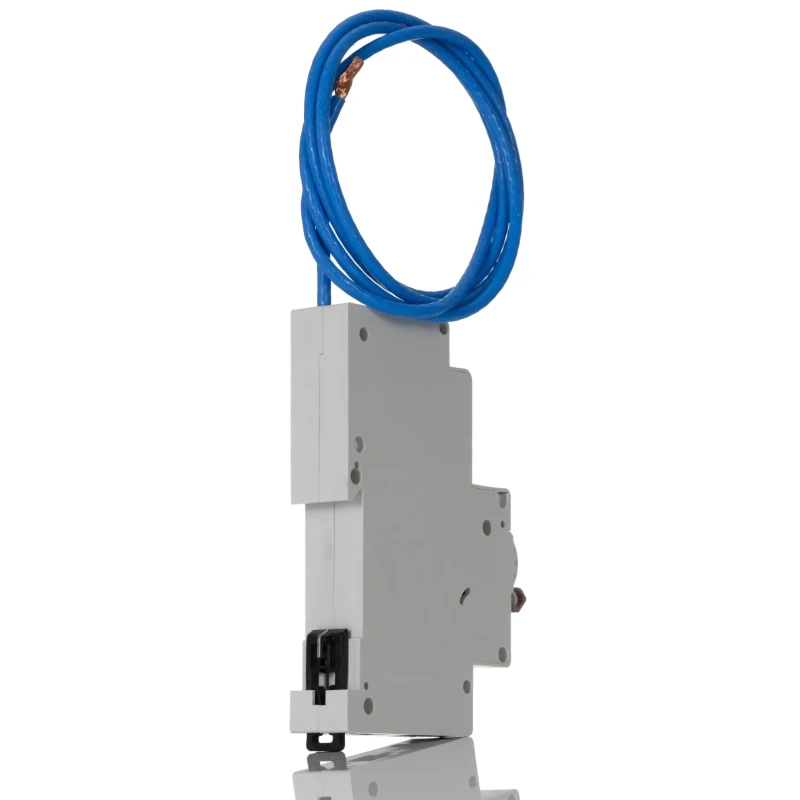

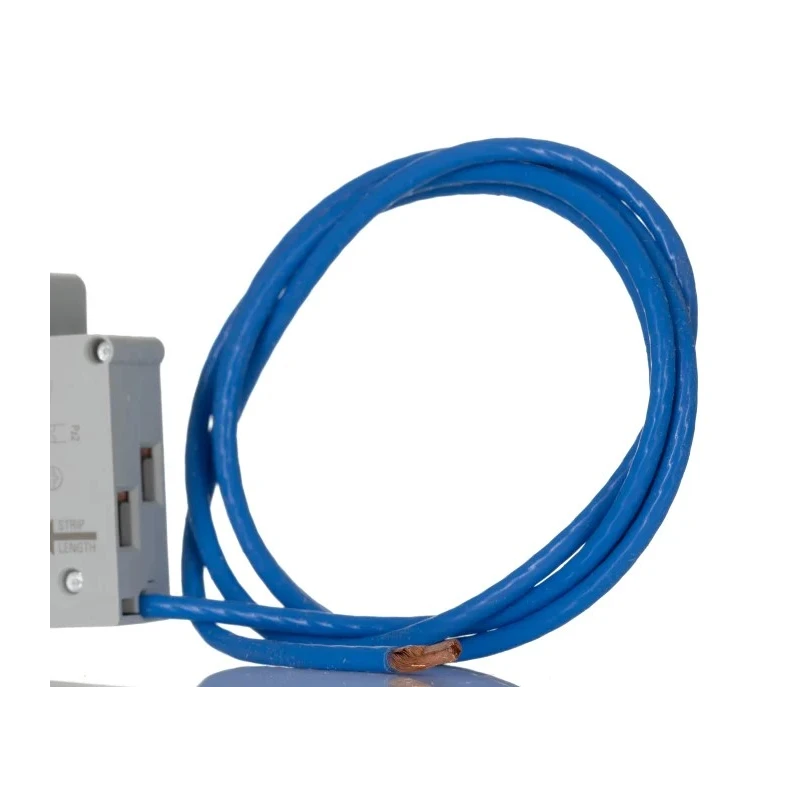

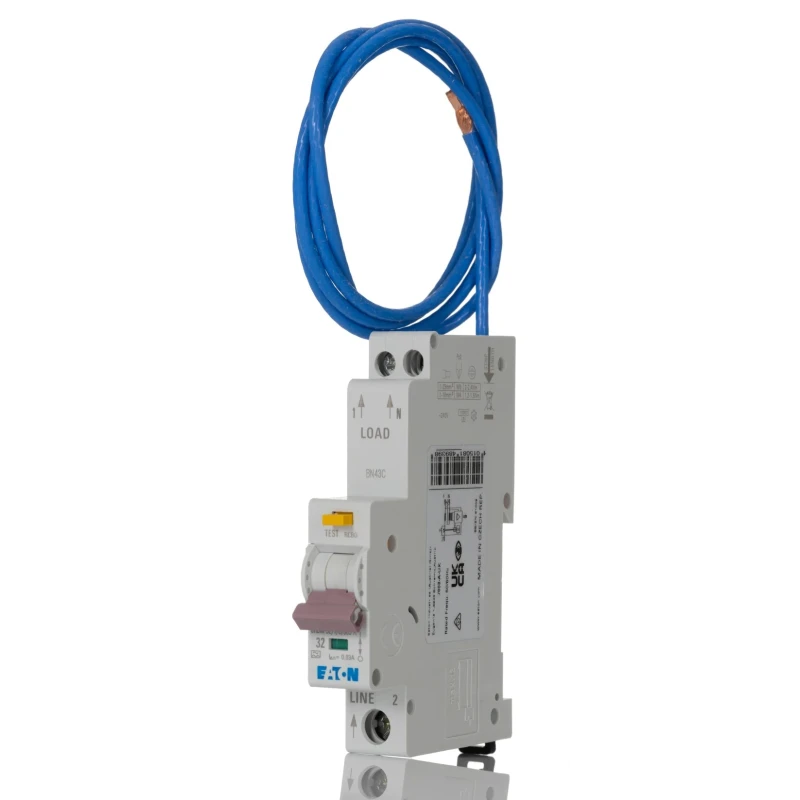

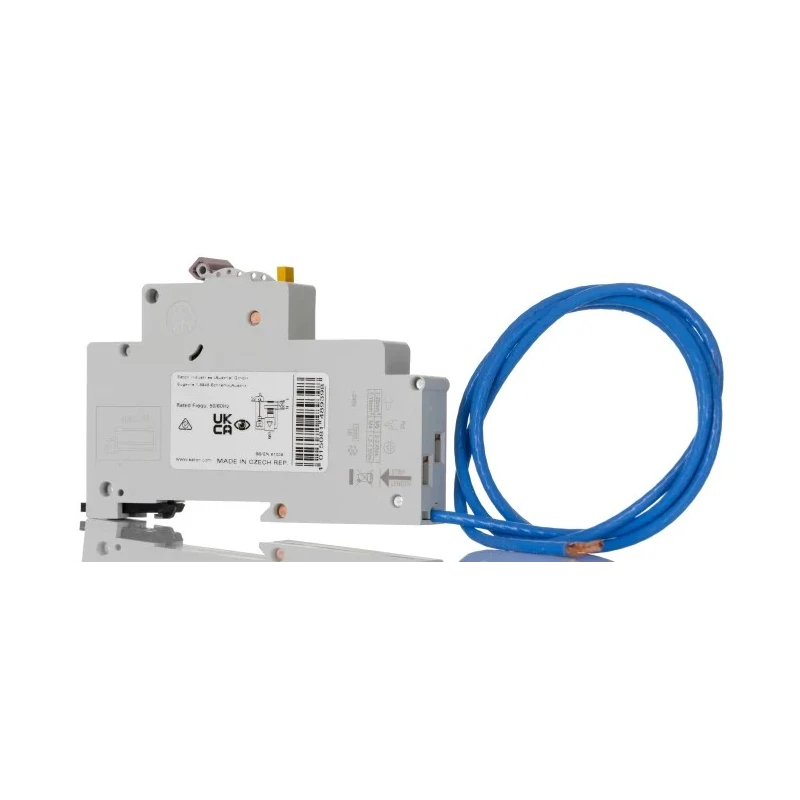

Eaton Residual Current Circuit Breaker with Overload Protection 16A, 1-Pole, 30mA Trip EMCH116R30C ERBM-16/1/C/003-A

Eaton EMCH116R30C ERBM-16/1/C/003-A residual current circuit breaker with overload protection is designed for effective fault protection in electrical power distribution systems. Rated at 16A current with a 1-pole configuration, it ensures safe electrical operation in both commercial and residential environments.

This RCBO combines the features of a residual current device and a mini circuit breaker, offering protection against overloads, short circuits, and earth leakage faults. The trip sensitivity is 30mA, suitable for detecting small leakage currents to prevent electrocution.

Equipped with a Type C tripping characteristic, it activates under currents from five to ten times its rated current, making it ideal for circuits with moderate inrush currents. The thermal magnetic tripping mechanism provides reliable and consistent operation.

Installation is facilitated via a universal DIN rail mount, compatible with standard distribution boards and enclosures. The device uses screw-type terminals to connect cables up to 25mm², accommodating common electrical wire sizes.

The breaker includes a toggle switch actuator for quick resetting and easy maintenance, with red and green indicators to show on/off status clearly. Its compact design measures 17.7mm in width and 216mm in depth, preserving valuable panel space.

The unit is rated for 240V AC voltage with a robust breaking capacity of 15kA, supporting high fault current conditions. The earth leakage protection type A further enhances electrical safety performance. Eaton's MEMShield series assures quality with CE certification compliance.

Combines residual current and overload protection in a single device. Features a thermal magnetic tripping mechanism for reliable safety. Toggle switch actuator allows easy manual reset and maintenance. Suitable for commercial and residential use on 240V AC systems.

Designed for DIN rail mounting compatible with standard distribution boards. Accepts cables up to 25mm² with screw terminal type connections. Breaking capacity rated at 15kA for high fault tolerance. Compact dimensions of 17.7mm width and 216mm depth for space efficiency.

Provides type A earth leakage protection for enhanced safety. Complies with CE standards ensuring quality and safety adherence.

This Residual Current Circuit Breaker is essential for electrical safety in industrial, commercial, and residential installations. It effectively minimizes electrical hazards due to earth leakage and overloads. Browse Eaton circuit breakers on EnvMart for reliable and high-performance solutions suitable for various electrical distribution setups.
