Lumberg 5 Pole Straight M16 DIN Plug Wall Mount Male Threaded 60V AC 5A IP68 0314 05

Free Delivery in India | Lowest Global Shipping Charges

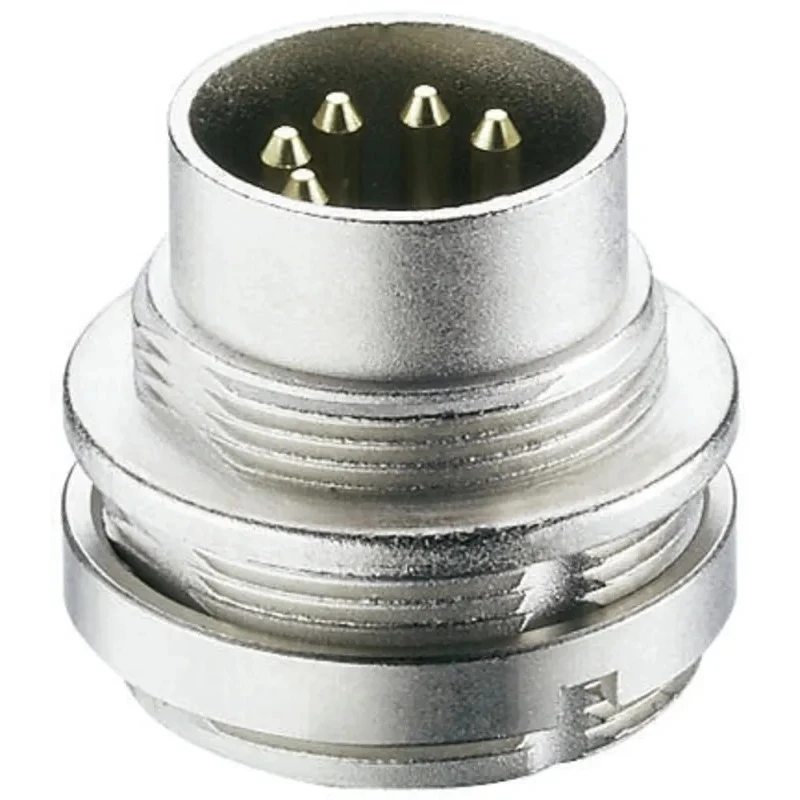

Lumberg 5 Pole Straight M16 DIN Plug Wall Mount Male Threaded 60V AC 5A IP68 0314 05

Name: Lumberg 5 Pole Straight M16 DIN Plug Wall Mount Male Threaded 60V AC 5A IP68 0314 05
Brand: LUMBERG
SKU: 194787
Price: 9.57 USD
Availability: InStock



Category DIN Connector Brand LUMBERG Condition New

Specifications

Country of Origin	India
Voltage	60V ac
Brand	Lumberg
Orientation	Straight
Current	5A
Model	0314 05
IP Rating	IP68
Mount Type	Wall Mount
Housing Material	Die Cast Zinc
Contact Material	Brass
Series	314
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Pole Format	5
Contact Plating	Gold over Silver
Number of Contacts	5
Contact Gender	Male
Connector Gender	Male
Mating Type	Threaded
Connector Size	M16
DIN Number	DIN EN 60529

Key Features

The connector features 5 poles with male contacts for versatile electrical connections.
It complies with the DIN EN 60529 standard for ingress protection with IP68 rating.
Constructed with a durable die cast zinc housing and brass contacts plated with gold over silver.
Designed for wall mount installation with a threaded mating type and solder termination.
Operates reliably within temperature range of -40°C to 85°C.
Ideal for applications in control engineering, automation technology, and medical instrumentation.
Provides secure and waterproof electrical connections in demanding environments.
Maintains performance and safety under industrial conditions.

Product Description

Lumberg 0314 05 5 Pole Straight M16 DIN Plug is a robust wall mount male electrical connector rated at 5 amperes and 60 volts AC, designed according to DIN EN 60529 standards with an IP68 protection rating ensuring water and dust resistance.

The connector features five poles with male contacts, housed within a die cast zinc body for enhanced mechanical strength and corrosion resistance. Contacts are made of brass with gold over silver plating, delivering excellent conductivity and reliable long-term performance.

Designed for precise electrical control applications, the connector employs a threaded mating system and solder termination for secure attachment and stable connections. It operates effectively within the temperature range from -40°C to 85°C, making it suitable for harsh industrial environments.

This 0314 series plug is well-suited for integration in control engineering, automation technology, and medical instrumentation systems, where dependable electrical connections under challenging conditions are critical. The IP68 rating certifies its ability to withstand prolonged immersion and dust ingress, ensuring operational integrity.

The standardized design and materials offer endurance and consistent connectivity in demanding usage scenarios. Its straightforward installation and durable construction make it a reliable component in industrial and laboratory electrical systems.

The connector supports five electrical contacts with a male configuration. It features a threaded mating interface for secure panel mounting. Constructed with a zinc die cast housing providing mechanical robustness. Contacts plated with gold over silver ensure optimal conductivity and corrosion resistance.

Rated for continuous use between -40°C and 85°C ambient temperatures. Meets the DIN EN 60529 standard for ingress protection with IP68 rating. Solder termination type allows for firm cable connection. Compatible with a range of control and automation equipment requiring waterproof connectors.

This product is essential for professionals needing durable and high-performance DIN Connectors for industrial and medical device manufacturing. Explore more in the Electronics & Electricals category at EnvMart.
