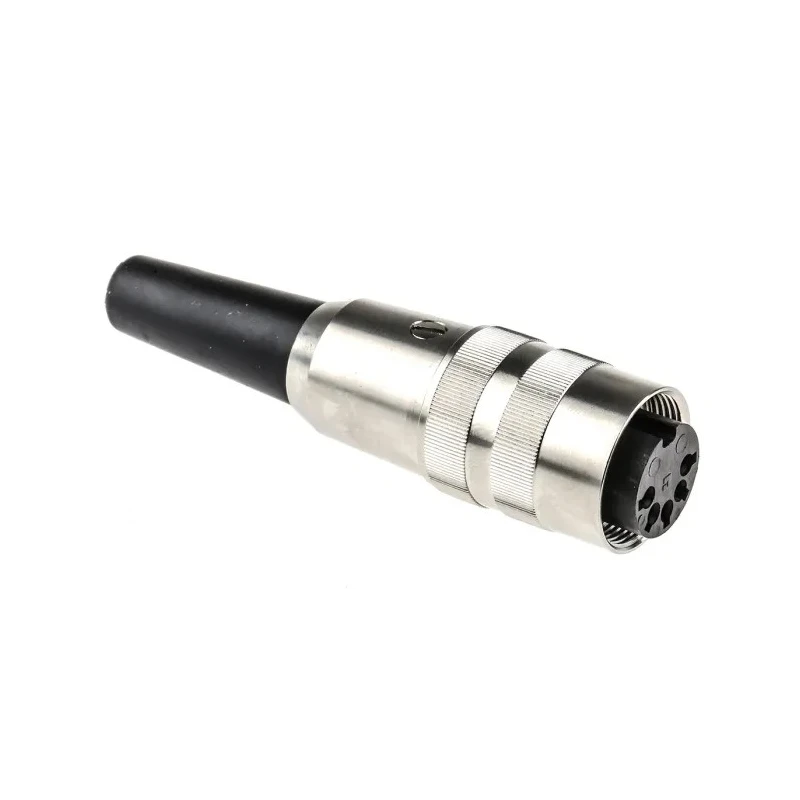

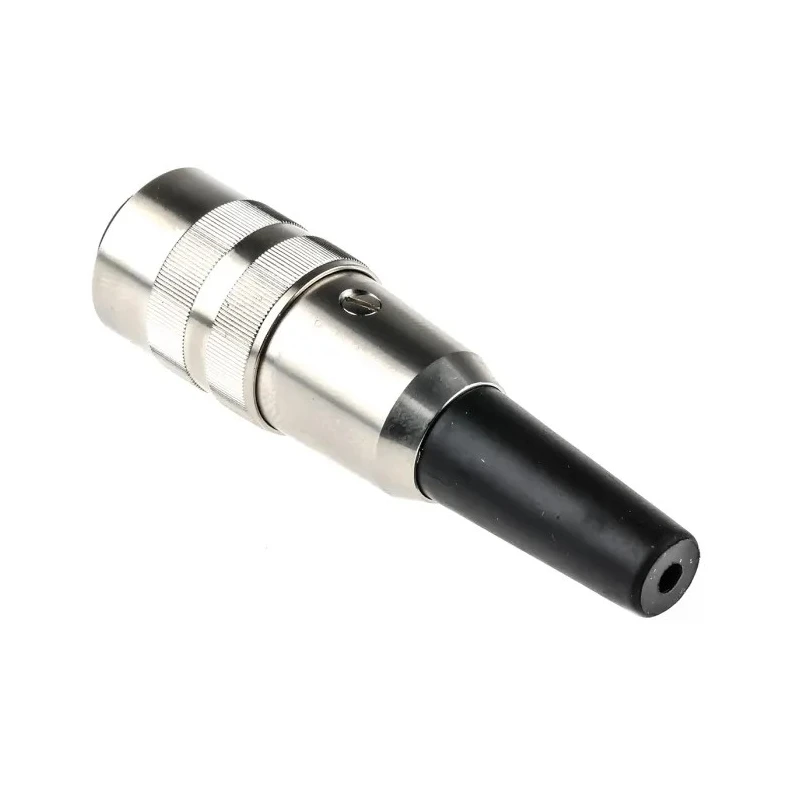

Lumberg KV 5 Pole Straight M16 DIN Socket, DIN EN 60529, 5A, 60V AC, IP40, Threaded Cable Female KV 50

Free Delivery in India | Lowest Global Shipping Charges

Lumberg KV 5 Pole Straight M16 DIN Socket, DIN EN 60529, 5A, 60V AC, IP40, Threaded Cable Female KV 50

Name: Lumberg KV 5 Pole Straight M16 DIN Socket, DIN EN 60529, 5A, 60V AC, IP40, Threaded Cable Female KV 50
Brand: LUMBERG
SKU: 194833
Price: 8.64 USD
Availability: InStock



Category DIN Connector Brand LUMBERG Condition New

Specifications

Country of Origin	India
Voltage	60V ac
Brand	Lumberg
Orientation	Straight
Current	5A
Model	KV 50
IP Rating	IP40
Mount Type	Cable
Housing Material	Copper Zinc Alloy
Contact Material	Brass
Series	KV
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Pole Format	5
Contact Plating	Gold, Silver
Number of Contacts	5
Contact Gender	Female
Connector Gender	Female
Mating Type	Threaded
Connector Size	M16
DIN Number	DIN EN 60529

Key Features

The connector features a 5-pole arrangement with gold and silver-plated brass contacts.
It is designed with a straight orientation and threaded mating type for secure connections.
The housing is made of durable copper zinc alloy providing robustness.
Operating temperature ranges from -40°C to 85°C, suitable for various environments.
Termination is via soldered connections ensuring reliable contact.
The connector complies with DIN EN 60529 standards and has an IP40 ingress protection rating.
Typical applications include automation technology, control engineering, medical instrumentation, and MIDI devices.
This cable socket connector belongs to the KV series known for quality and performance.

Product Description

Lumberg KV 50 is a 5 Pole Straight M16 DIN Socket designed according to DIN EN 60529 standards, rated for 5A current and 60V AC voltage, featuring an IP40 protection rating. This female cable mount socket connector is engineered for demanding industrial applications requiring secure and reliable connections.

The device includes a 5-pole configuration with gold and silver-plated brass contacts housed in a copper zinc alloy body. The straight orientation and threaded mating type provide ease of installation and secure mating in cable assemblies.

Operating temperature spans from -40°C to 85°C, allowing reliable use in diverse environmental conditions. Termination is performed through soldering, ensuring solid electrical contact and durability.

Lumberg KV series connectors are widely used across automation technology, control engineering systems, medical instrumentation, MIDI instruments, and other portable video or computer peripherals.

The KV 50 connector meets strict IEC 60130-9 standards, offering stable performance with low contact resistance under 5 milliohms. Its IP40 rating indicates protection against solid objects larger than 1mm, suitable for most indoor industrial environments.

The connector has a domino layout with pins arranged in four corners and a middle pin for optimum contact configuration. The copper zinc alloy housing ensures mechanical strength and durability. The inclusion of gold and silver plating on the contacts reduces oxidation and enhances conductivity.

Straight cable mount design facilitates easy integration into wiring harnesses. Usage in medical and automation applications ensures compliance with quality and reliability expectations. The connector supports solder termination, providing stable and maintenance-free operation.

The KV 50’s IP40 ingress protection rating suits controlled industrial environments.

Overall, the Lumberg KV 50 5 Pole Straight M16 DIN Socket offers a compact, reliable, and tested solution for circular DIN Connector needs in various technical and industrial fields.
