Lumberg 314 8 Pole Straight M16 DIN Plug, Wall Mount Male, Threaded, 60V AC, 5A, IP68, DIN EN 60529 0314 08

Free Delivery in India | Lowest Global Shipping Charges

Lumberg 314 8 Pole Straight M16 DIN Plug, Wall Mount Male, Threaded, 60V AC, 5A, IP68, DIN EN 60529 0314 08

Name: Lumberg 314 8 Pole Straight M16 DIN Plug, Wall Mount Male, Threaded, 60V AC, 5A, IP68, DIN EN 60529 0314 08
Brand: LUMBERG
SKU: 194794
Price: 9.38 USD
Availability: InStock



Category DIN Connector Brand LUMBERG Condition New

Specifications

Country of Origin	India
Voltage	60V ac
Brand	Lumberg
Orientation	Straight
Current	5A
Model	0314 08
IP Rating	IP68
Mount Type	Wall Mount
Housing Material	Die Cast Zinc
Contact Material	Brass
Series	314
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Pole Format	8
Contact Plating	Gold over Silver
Number of Contacts	8
Contact Gender	Male
Connector Gender	Male
Mating Type	Threaded
Connector Size	M16
DIN Number	DIN EN 60529

Key Features

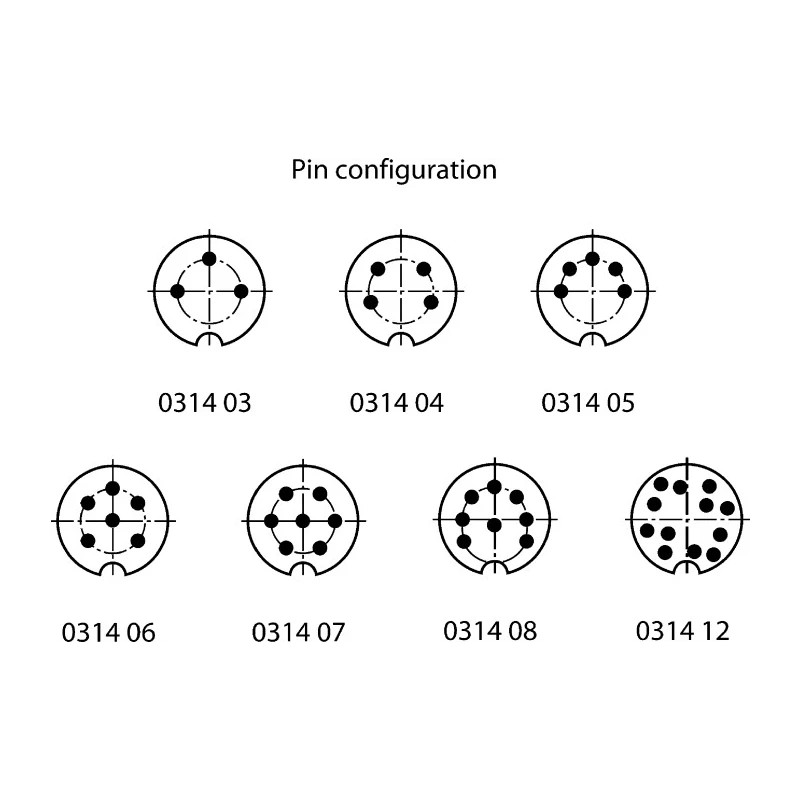

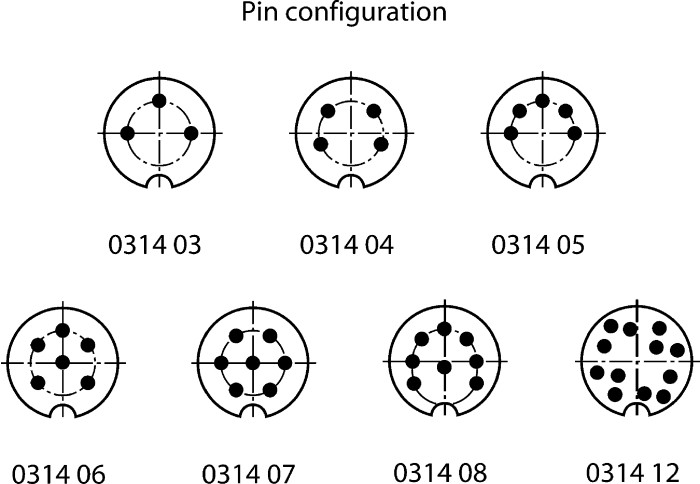

The connector features 8 contacts arranged in a circular pattern.
It uses a threaded joint for secure mating and solder termination.
Rated for IP68 protection ensuring resistance to dust and water ingress.
Operating temperature range from -40°C to 85°C supporting harsh environments.
Housing made from die cast zinc and contacts plated with gold over silver for corrosion resistance.
Compatible with DIN EN 60529 and IEC60130-9 standards.
Suitable for automation technology, control engineering, and medical instrumentation.
Wall mount design allows easy installation on panels and equipment.

Product Description

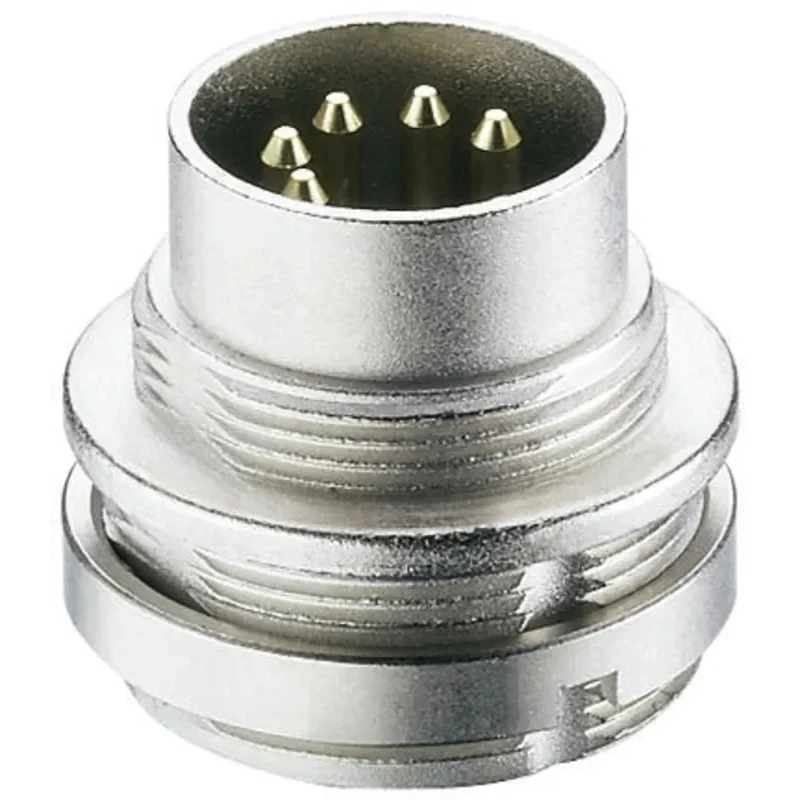

Lumberg 0314 08 is an 8 Pole Straight M16 DIN Plug connector, designed as a wall mount male connector with a threaded mating type. It supports an electrical rating of 60V AC and 5A current, and is constructed to provide IP68 protection according to DIN EN 60529 standards, making it highly durable against dust and water ingress.

This connector features a robust die cast zinc housing that ensures mechanical strength alongside brass contacts plated with gold over silver to optimize electrical conductivity and corrosion resistance. The pins are arranged in a circular pattern, providing reliable electrical connections in industrial applications.

Its solder termination type allows secure cable attachment, suitable for applications requiring stable and long-lasting connections. The operating temperature range from -40°C to 85°C enables usage in extreme environmental conditions.

Commonly used in automation technology, control engineering, and medical instrumentation, this DIN plug supports a variety of industrial use cases where high performance and durability are necessary. The front-mounted threaded joint ensures reliable connection integrity and easy assembly.

The connector has 8 contacts arranged circularly for multi-contact connections. Threaded mating system secures connections firmly for industrial environments. Die cast zinc housing provides mechanical robustness and environmental protection.

Gold over silver plated brass contacts enhance conductivity and corrosion protection. Offers IP68 rating for excellent dust and water resistance. Operates over a temperature range of -40°C to 85°C for demanding conditions.

Solder termination type ensures durable cable connection. Designed according to DIN EN 60529 and IEC60130-9 standards. Explore more DIN Connectors and related industrial-grade electrical components at EnvMart to suit your specific electronic connection needs.
