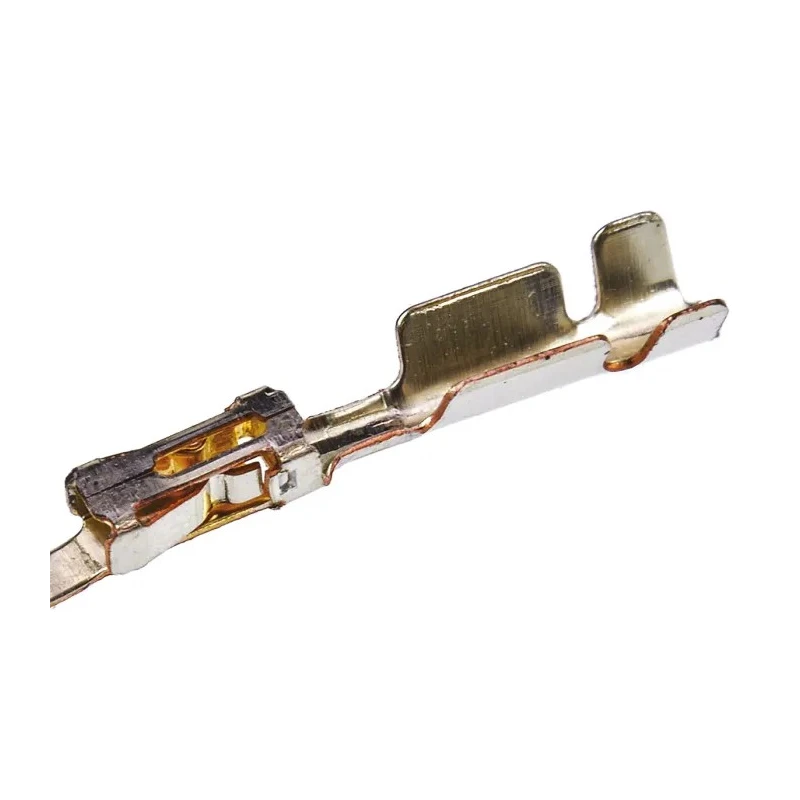

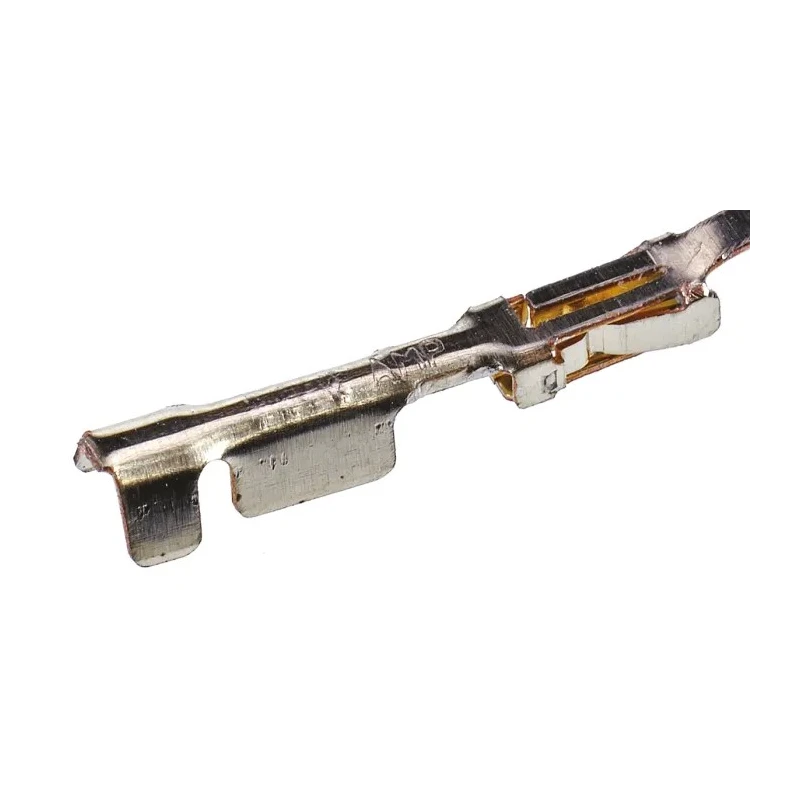

TE Connectivity AMPMODU MOD V Series Female Crimp Terminal, 24 AWG Min Crimp, 20 AWG Max 166309-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 3A |
| Length | 18.03mm |
| Model | 166309-2 |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU MOD V |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| For Use With | AMPMODU MOD IV Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.6mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 20AWG |
| Maximum Contact Resistance | 12mΩ |
Key Features
- Compatible with AMPMODU MOD IV Connector Housing for reliable connections.
- Gold contact plating enhances corrosion resistance and conductivity.
- Phosphor bronze contact material ensures durability and strength.
- Crimp termination type provides secure and efficient wire attachment.
- Operates within temperatures from -65°C to 105°C for versatile applications.
- Compact length of 18.03 mm allows easy integration into tight spaces.
- Maximum contact resistance is 12 milliohms ensuring minimal signal loss.
- Designed to meet high contact pressure requirements without specific certifications.
Product Description
TE Connectivity 166309-2 AMPMODU MOD V Series Female Crimp Terminal is engineered for high-performance electrical connections, suitable for use with AMPMODU MOD IV connector housings. It features gold-plated phosphor bronze contacts designed to handle currents up to 3 Amps with wire sizes ranging from 24 AWG minimum to 20 AWG maximum (0.2 mm² to 0.6 mm²).
The crimp termination offers secure mechanical and electrical connections, with a compact length of 18.03 mm allowing flexible application in dense electronic assemblies.
These female crimp terminals operate reliably across a wide temperature range from -65°C to 105°C, supporting usage in diverse industrial, electronic, and manufacturing environments.
The contact plating of gold optimizes conductivity and corrosion resistance, ensuring long-term durability in demanding conditions. The phosphor bronze material provides resilience and strength for repeated use.
The designed maximum contact resistance of 12 milliohms safeguards signal integrity and minimizes loss, making these terminals suitable for precision electronics and communication devices.
Compatible with AMPMODU MOD IV Connector Housing for reliable connections. Gold contact plating enhances corrosion resistance and conductivity. Phosphor bronze contact material ensures durability and strength. Crimp termination type provides secure and efficient wire attachment.
Operates within temperatures from -65°C to 105°C for versatile applications. Compact length of 18.03 mm allows easy integration into tight spaces. Maximum contact resistance is 12 milliohms ensuring minimal signal loss. Designed to meet high contact pressure requirements without specific certifications.
This product supports various industrial automation, electronics manufacturing, telecommunications, and automotive electrical systems requiring dependable terminal contacts. Explore more precision connector solutions and components with EnvMart’s electronics & electricals category.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this female crimp terminal is 3 Amps.
This terminal is compatible with wire sizes ranging from 24 AWG minimum (0.2 mm²) to 20 AWG maximum (0.6 mm²).
The length of this terminal is 18.03 mm, allowing for easy integration into tight spaces.
The terminal features phosphor bronze as the contact material and has gold plating for enhanced conductivity and corrosion resistance.
This model operates reliably within a temperature range of -65°C to 105°C.
The maximum contact resistance is 12 milliohms, which helps minimize signal loss.
This terminal is designed for use with the AMPMODU MOD IV Connector Housing.
The terminal uses a crimp termination type, providing secure mechanical and electrical connections.
This terminal belongs to the AMPMODU MOD V Series.
This terminal is suitable for various applications in industrial automation, electronics manufacturing, telecommunications, and automotive electrical systems.
This crimp terminal is female gendered, designed for specific connections in electronic assemblies.
The country of origin for this crimp terminal is India.
