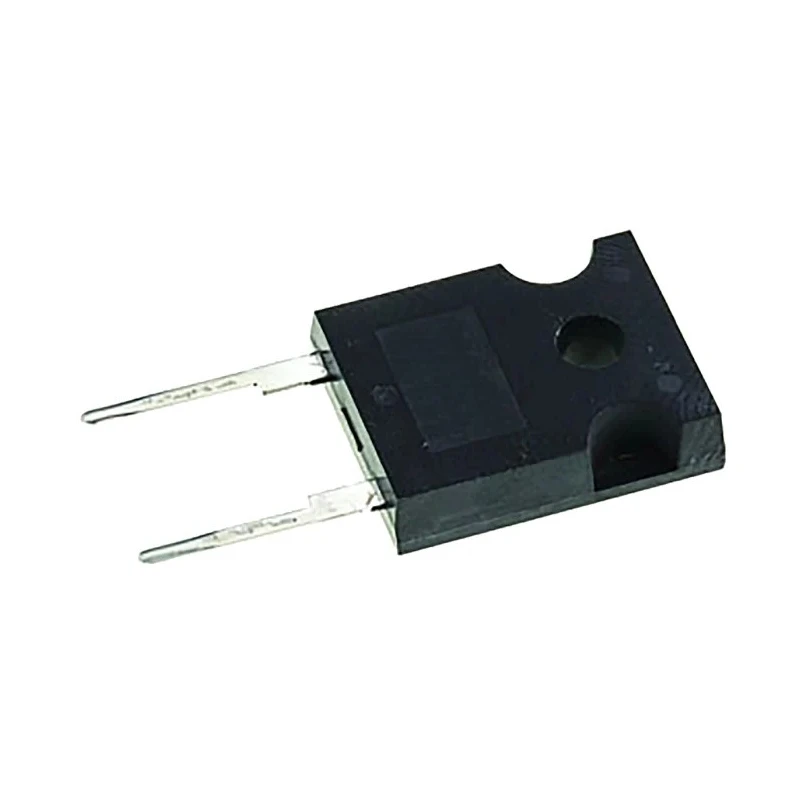

STMicroelectronics 650 V 20 A Automotive Silicon Carbide Schottky Diode 2-Pin Through Hole DO-247 STPSC20065WY

STMicroelectronics STPSC20065WY is an automotive quality Silicon Carbide (SiC) Schottky diode engineered for high-performance power rectification in electronic circuits. It comes in a Through Hole DO-247 2-pin package and supports a maximum continuous forward current of 20 A at up to 650 V peak reverse voltage, making it ideal for robust power management applications.

This SiC diode offers low forward voltage drop of 1.65 V, which provides enhanced efficiency and reduced power dissipation. It operates reliably in extreme environmental conditions, supporting a minimum operating temperature of -40°C and maximum operating temperature of 175°C, suitable for automotive and industrial applications.

With an excellent peak non-repetitive forward surge current rating of 400 A, this diode is built for high surge tolerance and dependable operation under transient conditions. The device is automotive grade and compliant with the AEC-Q101 standard, ensuring quality and long-term reliability expected in automotive electronics.

Its compact dimensions of 20.15 mm height, 15.75 mm length, and 5.15 mm width in a DO-247 package offer easy integration into power supply circuits, converters, and inverter designs. The diode features a single diode configuration with low reverse leakage current of 2 mA, providing reduced losses and improved efficiency.

Applications include automotive power supplies, industrial power management, high efficiency rectifiers, and power converters needing high reliability and low electromagnetic interference (EMI). The device’s silicon carbide construction ensures low reverse recovery charge and switching losses, contributing to faster switching frequencies and smaller system size.

This diode supports a maximum continuous forward current of 20 A. It features a peak reverse repetitive voltage of 650 V suitable for high voltage applications. The maximum forward voltage is 1.65 V ensuring low conduction losses.

Operates efficiently over a wide temperature range from -40°C to 175°C. The device has a robust peak non-repetitive forward surge current capability of 400 A. The diode complies with automotive standard AEC-Q101, ensuring high reliability.

The dimensions of the component are 20.15 mm height, 15.75 mm length, and 5.15 mm width in a 2-pin configuration. It is designed to have very low reverse recovery current and switching behavior independent of temperature.

The diode's high efficiency helps reduce size and cost of power converters and minimizes EMC impact. Choose STMicroelectronics products on EnvMart for reliable semiconductor components including this high-performance automotive grade SiC Schottky diode.
