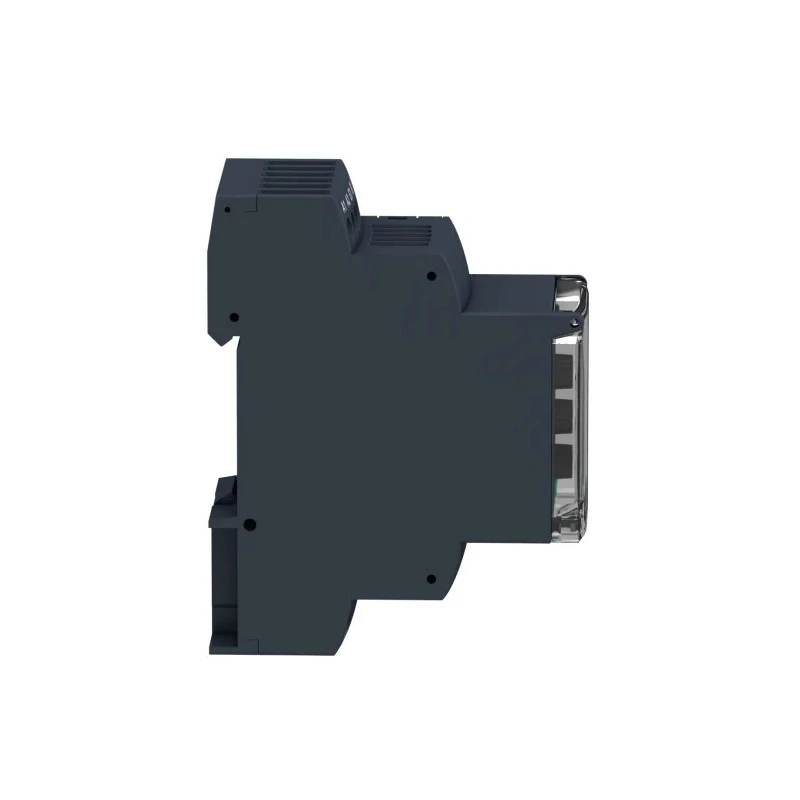

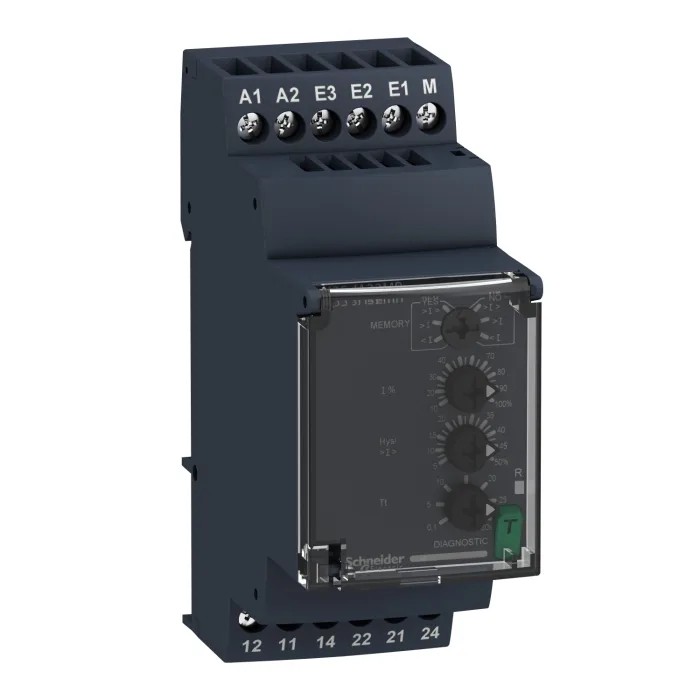

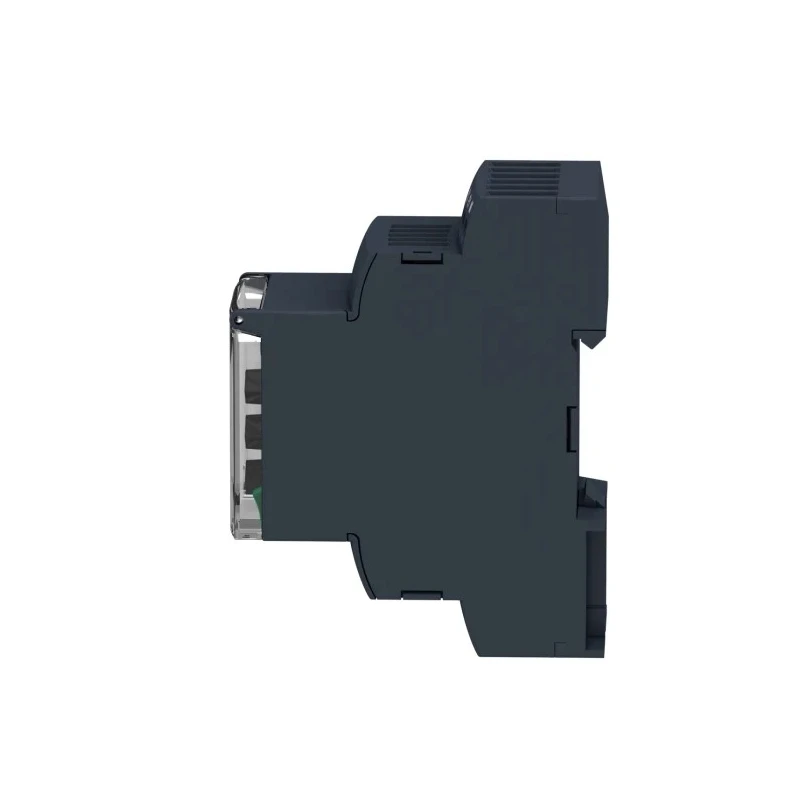

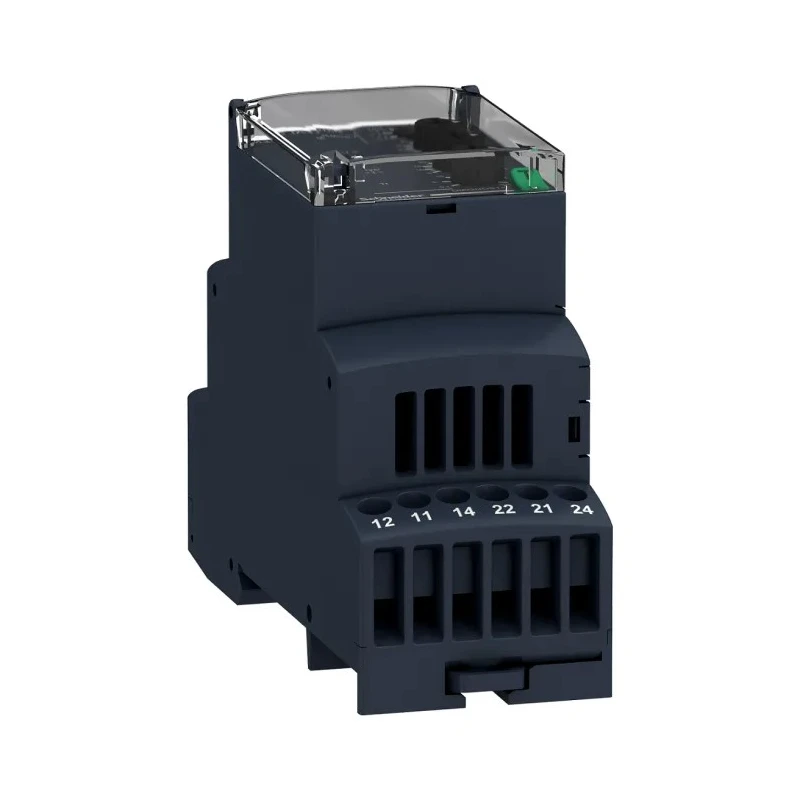

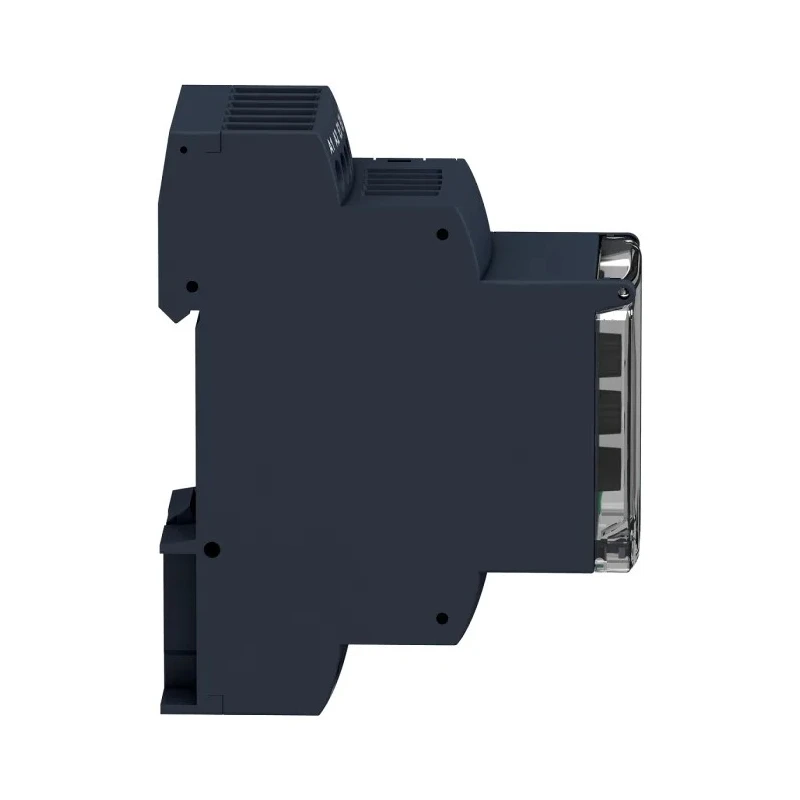

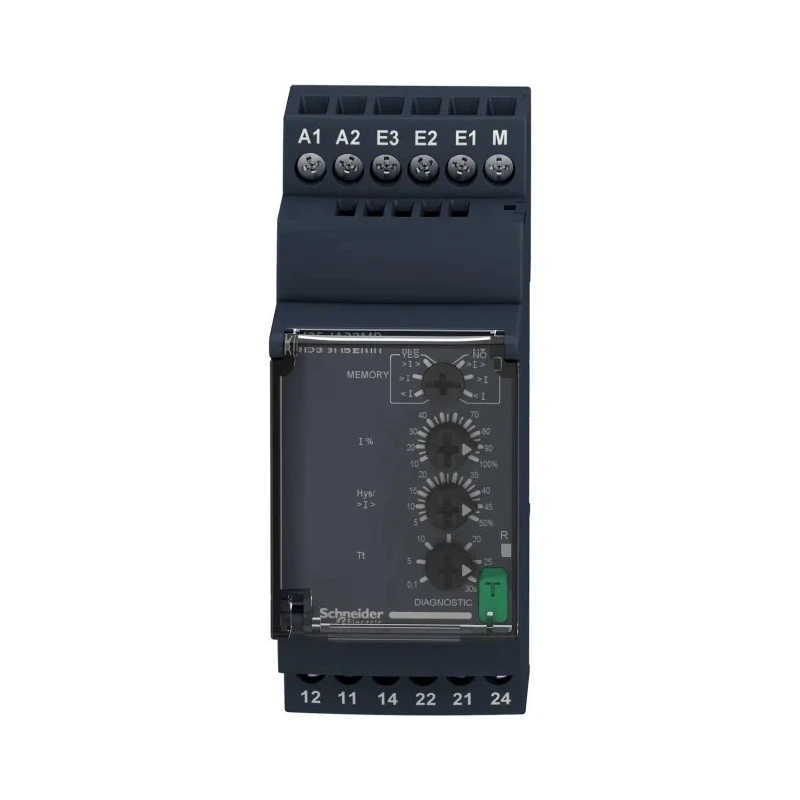

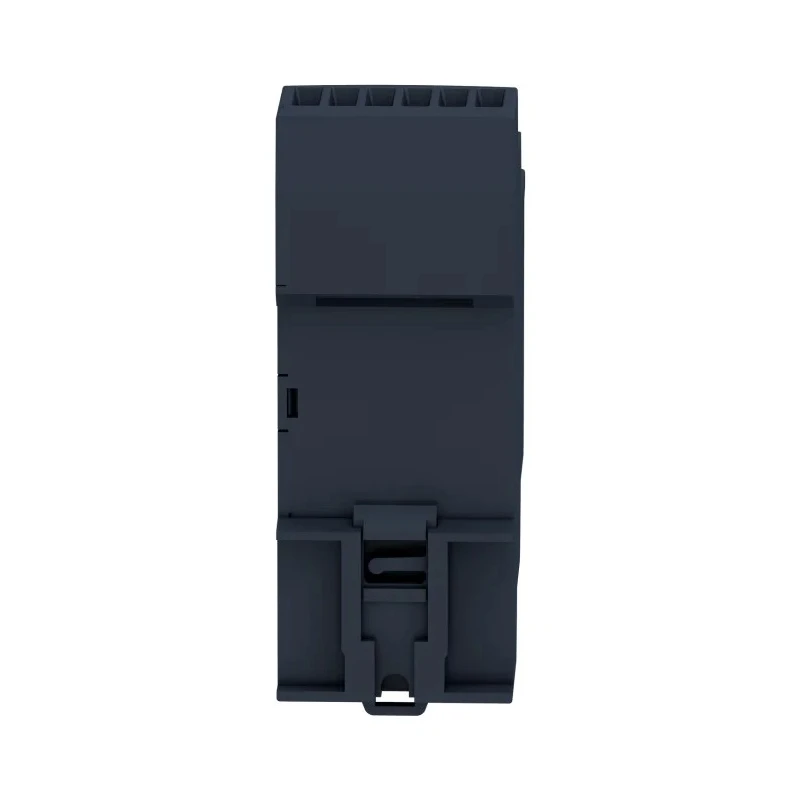

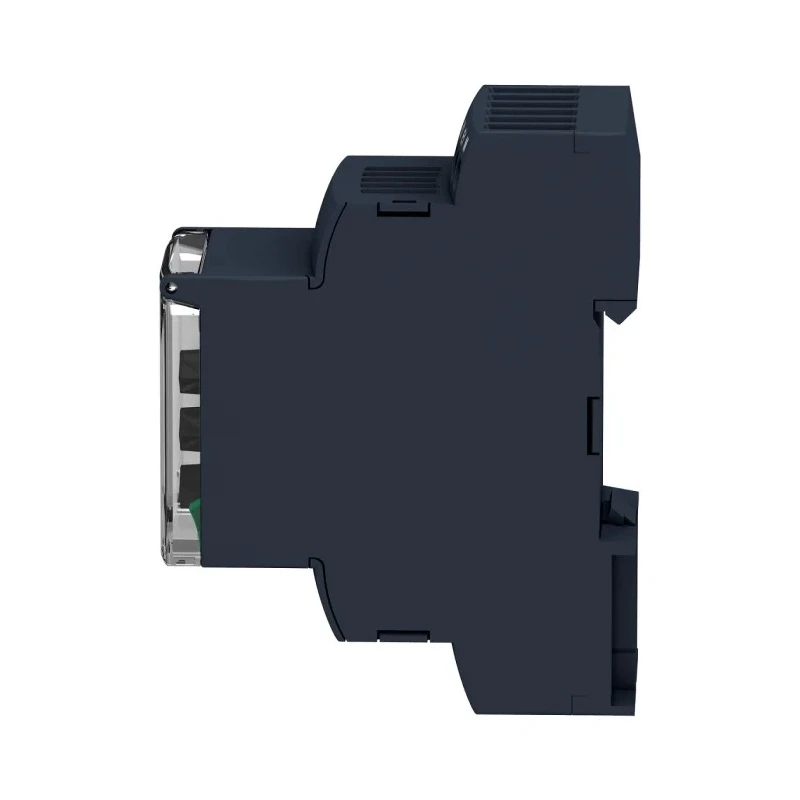

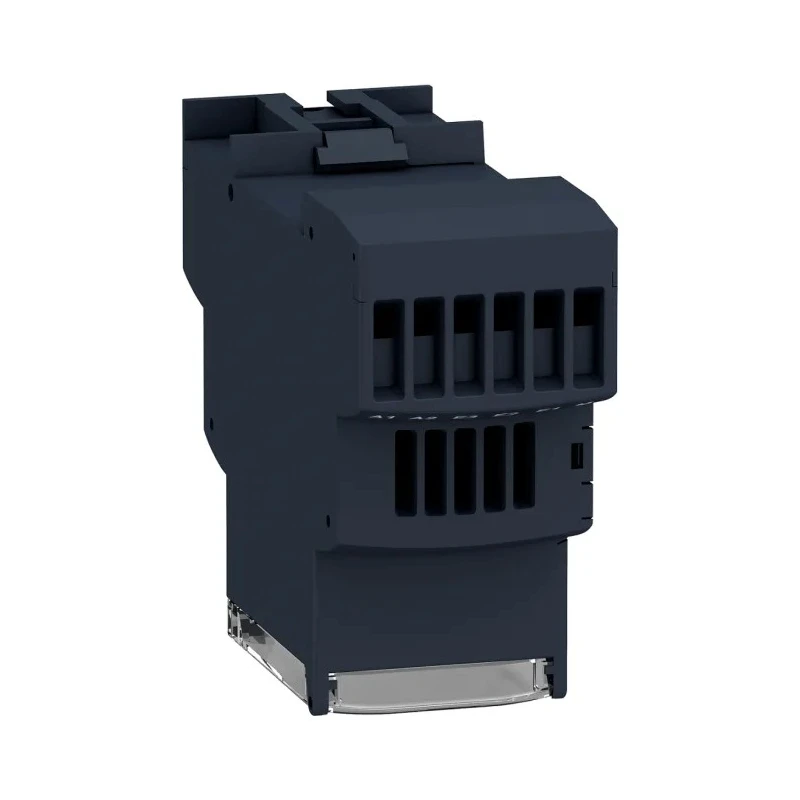

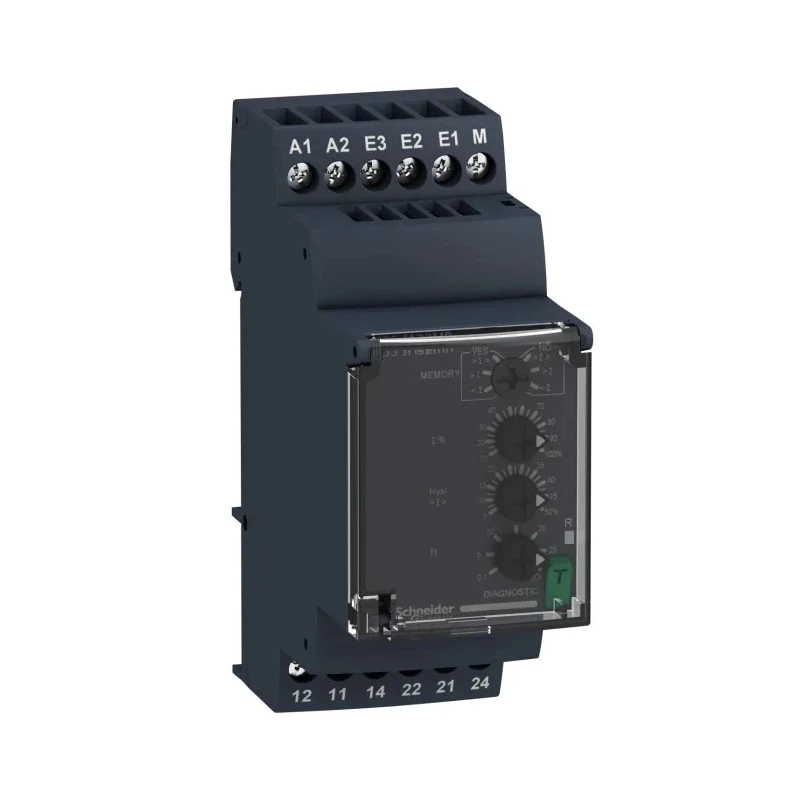

Schneider Electric Monitoring Relay 1 Phase DPDT DIN Rail 150mA-15A 24/240V AC RM35JA32MR

Schneider Electric RM35JA32MR Monitoring Relay is a single-phase, dual-pole double-throw (DPDT) device designed for precise current supervision in industrial and automation control panels. It monitors overcurrent and undercurrent conditions across a broad measurement range of 150mA to 15A.

This relay supports DIN rail mounting providing seamless integration in control cabinets, with screw terminal connections accommodating wiring from 0.5 to 3.3mm². The supply voltage flexibility from 24V to 240V AC (20.4 to 264V tolerance) allows use in diverse panel power configurations.

Timing of the relay is adjustable between 0.1 to 30 seconds enabling customizable trip delays for motor protection trips, pump monitoring, and factory automation systems. The 2C/O contacts support 8A switching loads, suitable for control and signalling to PLCs or other supervisory devices.

Featuring LED indicators for power and relay state, diagnostics and troubleshooting are simplified. The relay's contact elements are cadmium-free and rated for 100,000 electrical cycles and 10 million mechanical cycles for durable performance in demanding industrial environments.

Operating temperature ranges from -20°C to 60°C ensure reliable function under typical industrial and HVAC conditions with resistance to high humidity and electromagnetic disturbances compliant with IEC standards (IEC 60068-2-30, IEC 60255-27, IEC 60068-2-6, IEC 60068-2-27) and environmental regulations including RoHS and REACH.

Applications include motor protection trips, pump circuit monitoring for undercurrent faults, supervisory signalling, and factory automation setups requiring adjustable delay relays and DIN rail mounting.

The RM35JA32MR combines reliable current detection, flexible timing control, and robust construction making it an essential relay for industrial electrical control and automation. Explore more Schneider Electric automation and monitoring solutions at EnvMart.

Measures current from 150mA to 15A for versatile protection. Adjustable time delay from 0.1 to 30 seconds for controlled response. 2 changeover contacts (DPDT) rated at 8A for reliable switching. Operates on supply voltage range 24V to 240V AC with tolerance.

DIN rail mounting simplifies installation and panel integration. Screw terminal connections support 0.5 to 3.3mm² conductors. LED indicators display power and relay status for easy diagnostics. Rated for operating temperatures from -20°C to 60°C with humidity tolerance.

Cadmium-free contacts with long electrical durability of 100,000 cycles. Complies with standards including RoHS, IEC 60068 and REACH.
