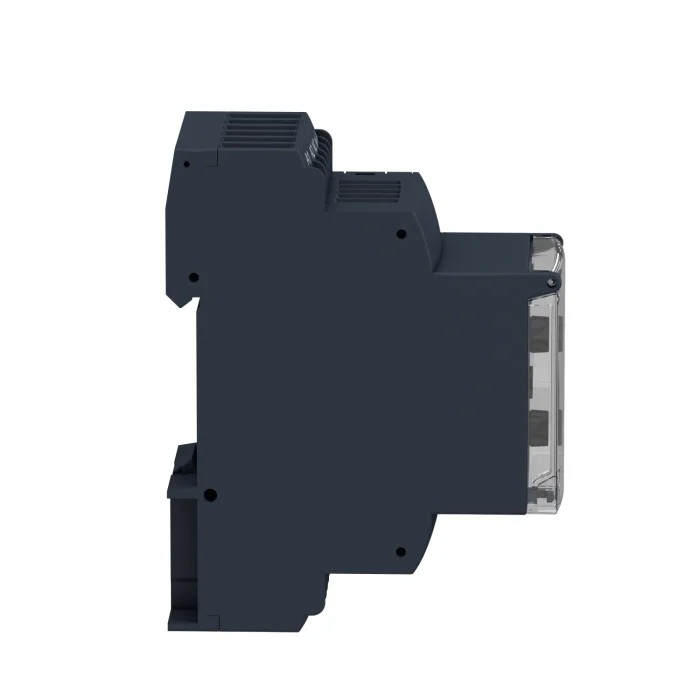

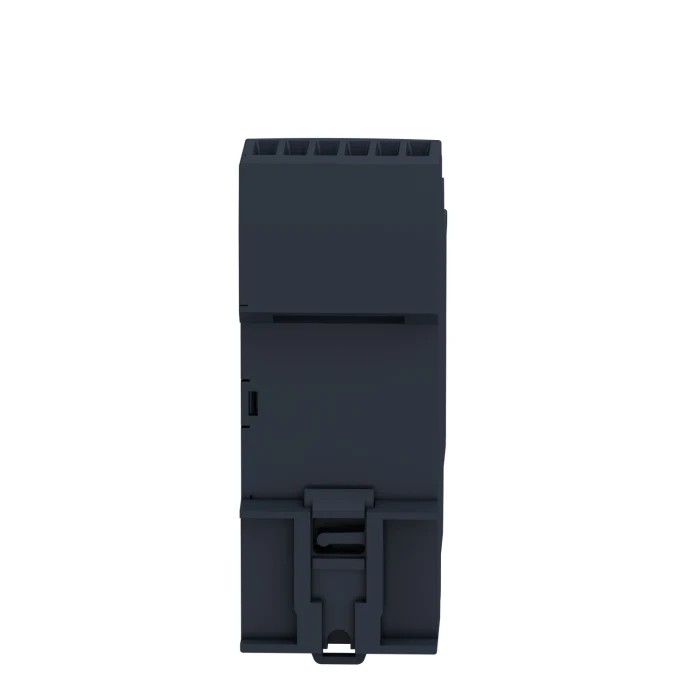

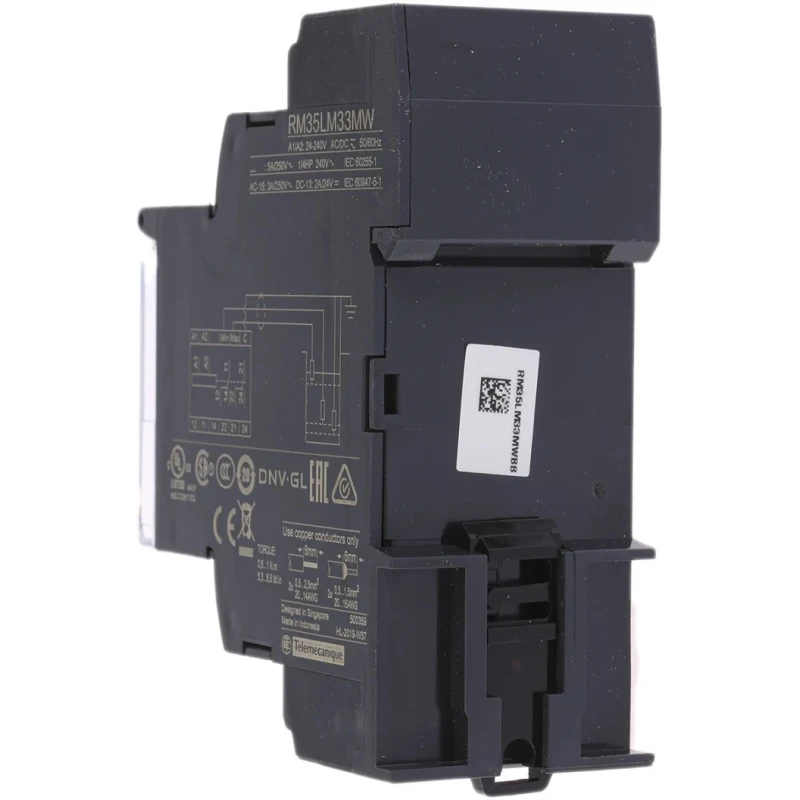

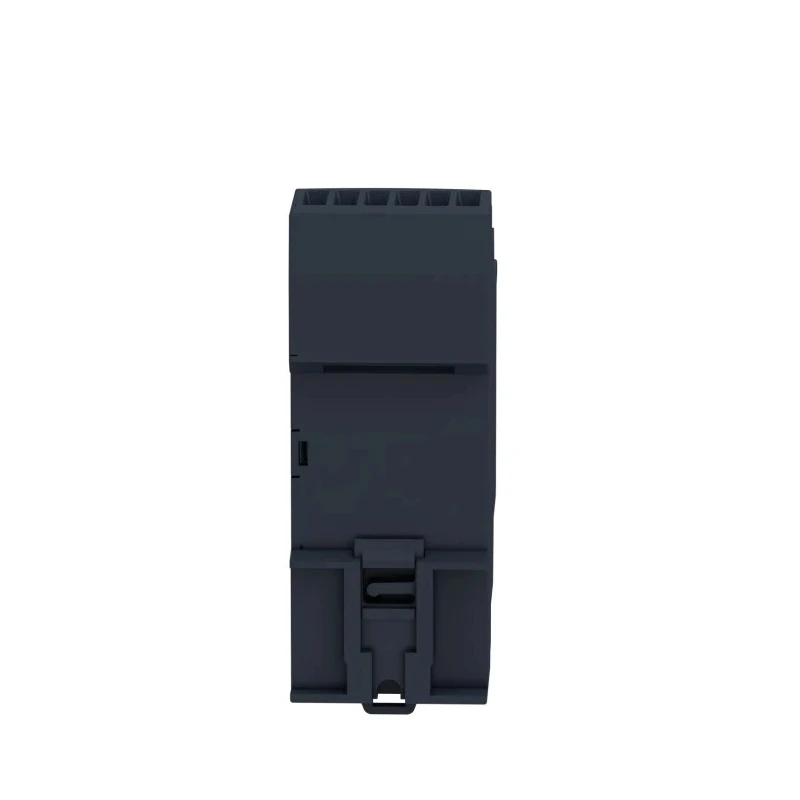

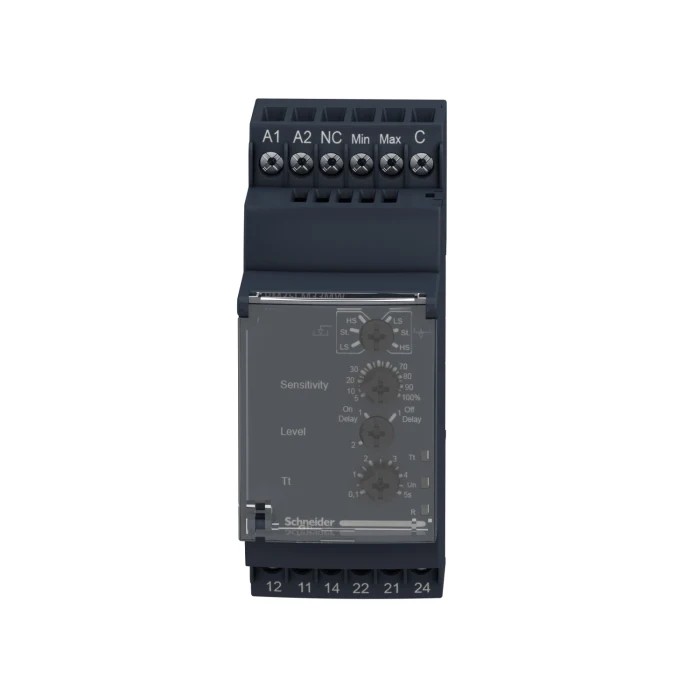

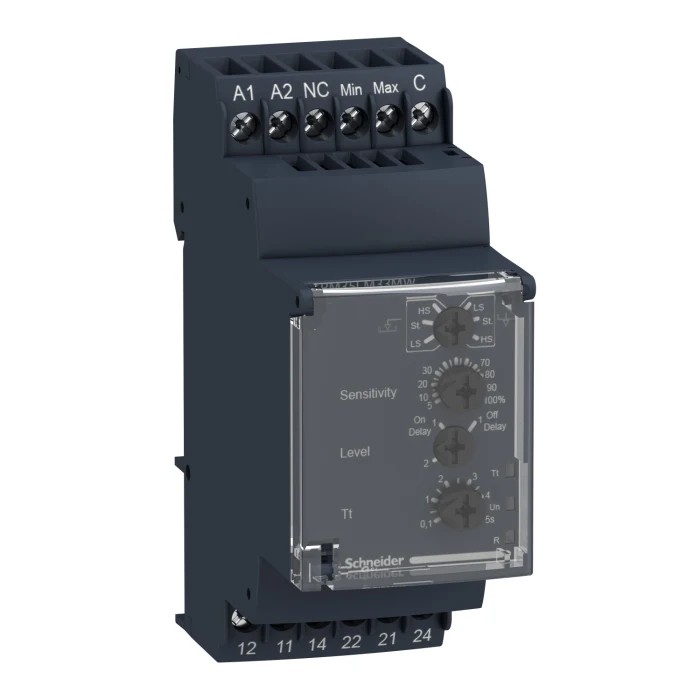

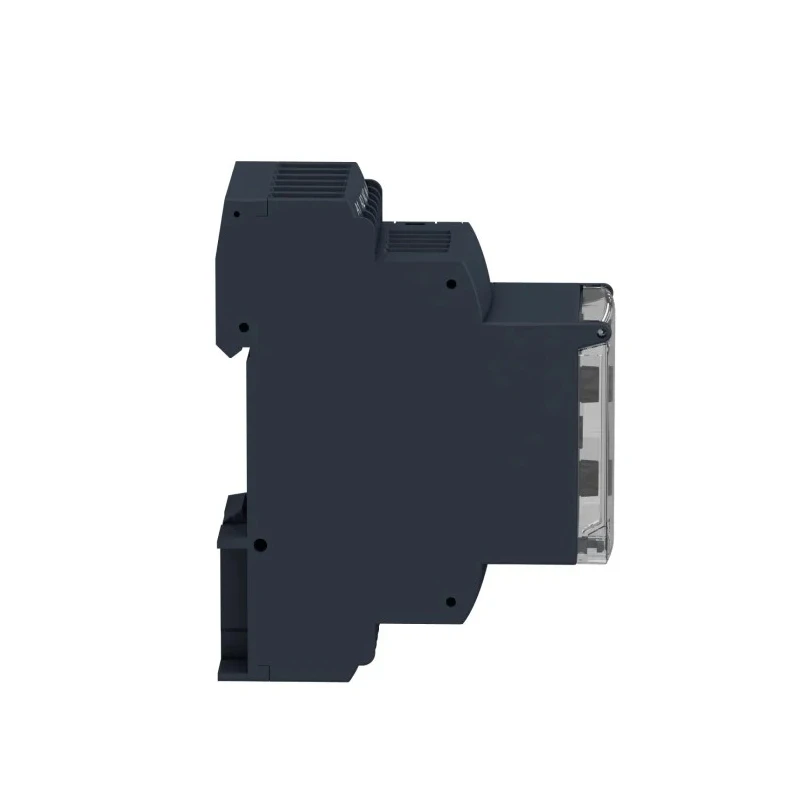

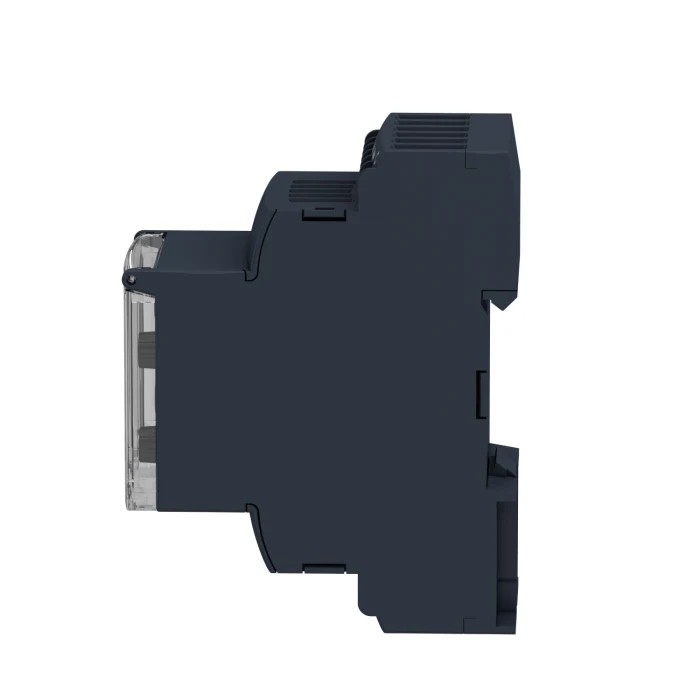

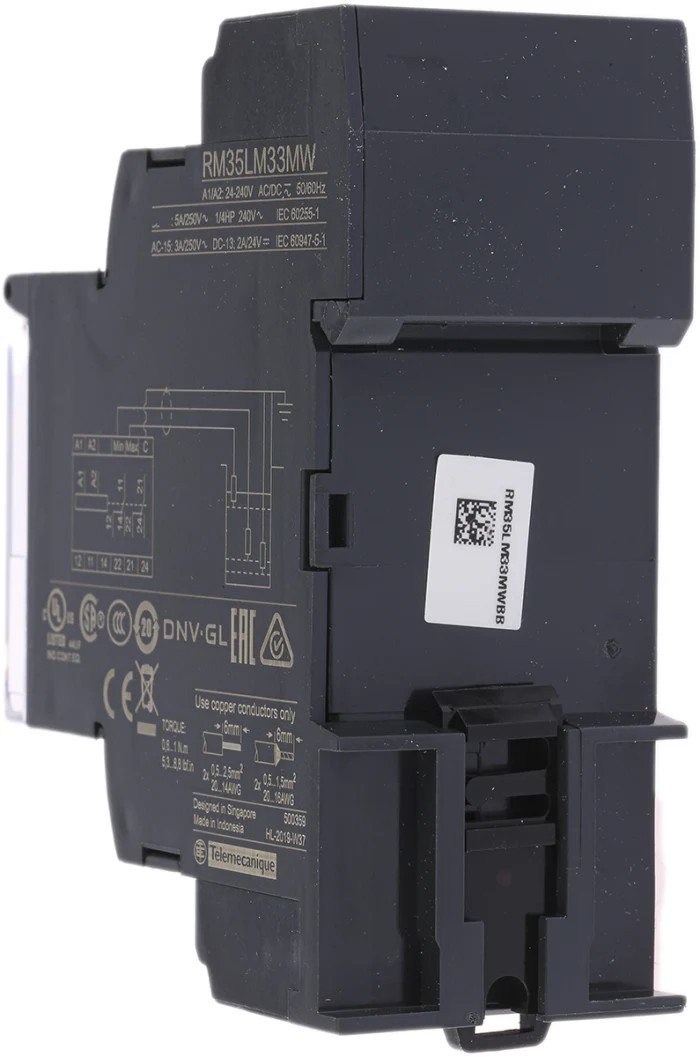

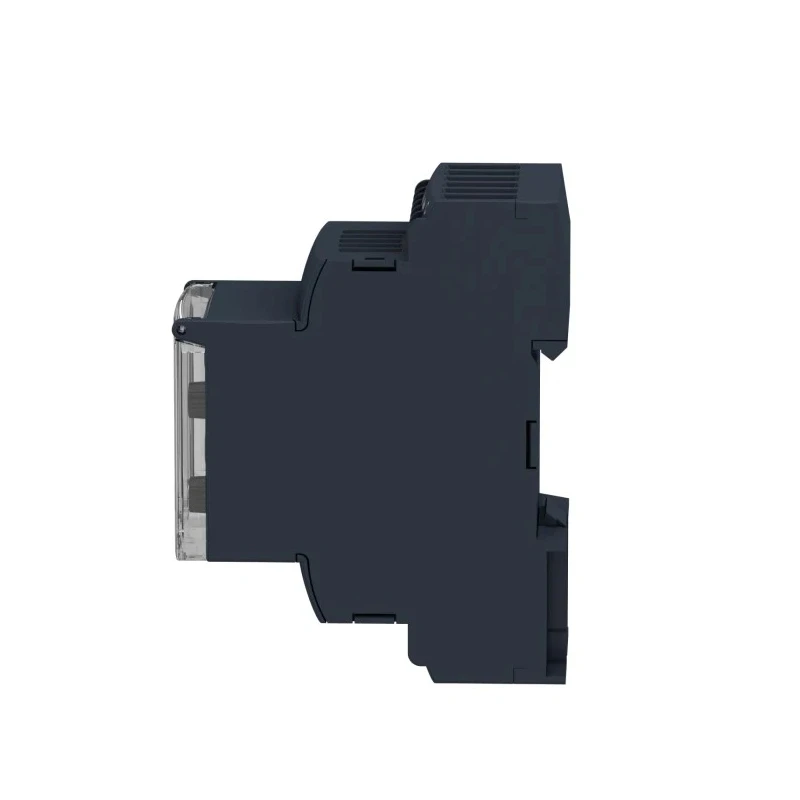

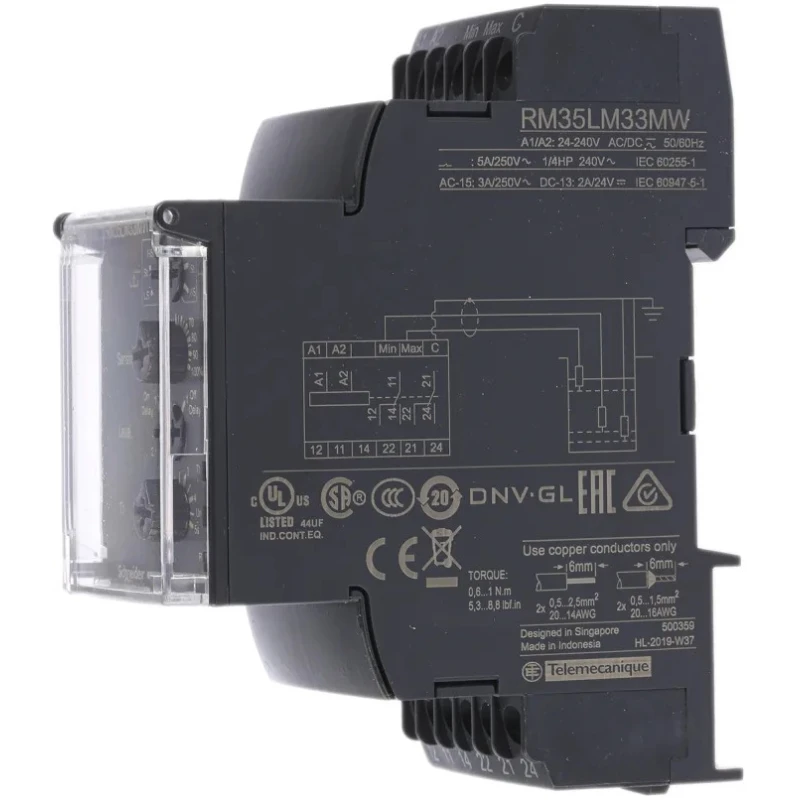

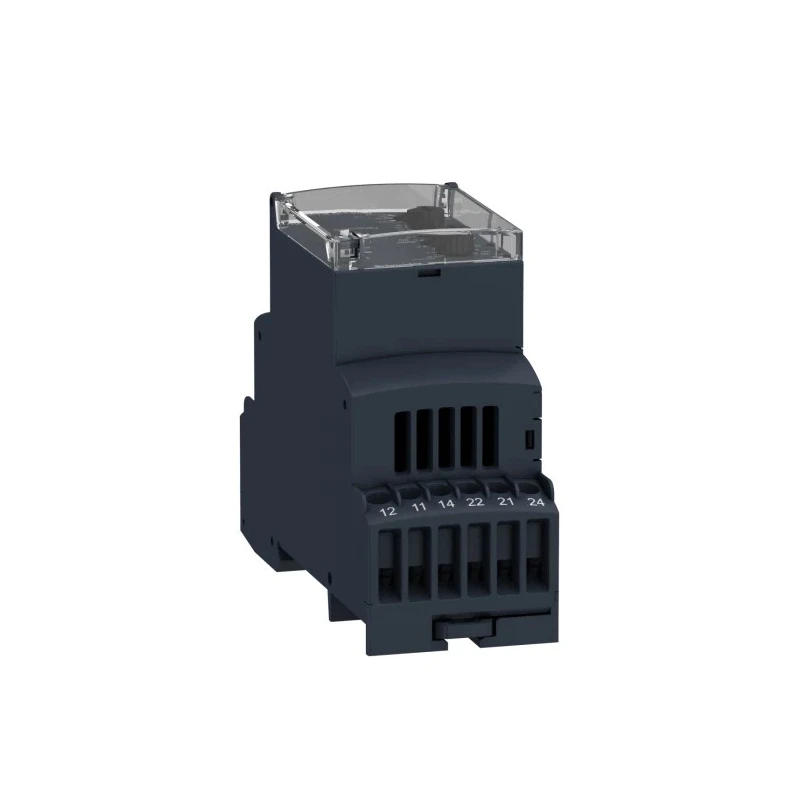

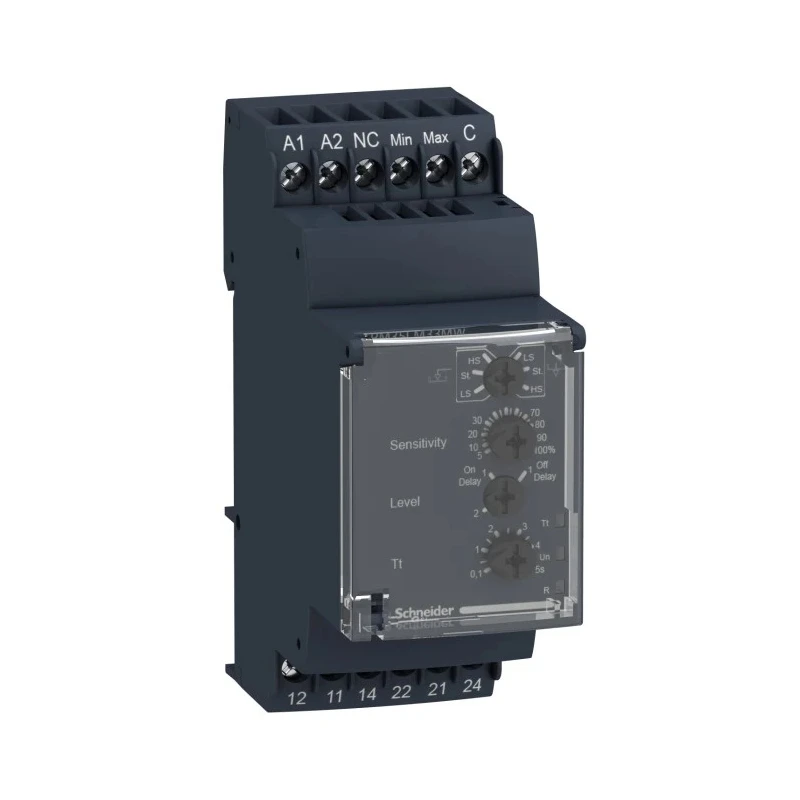

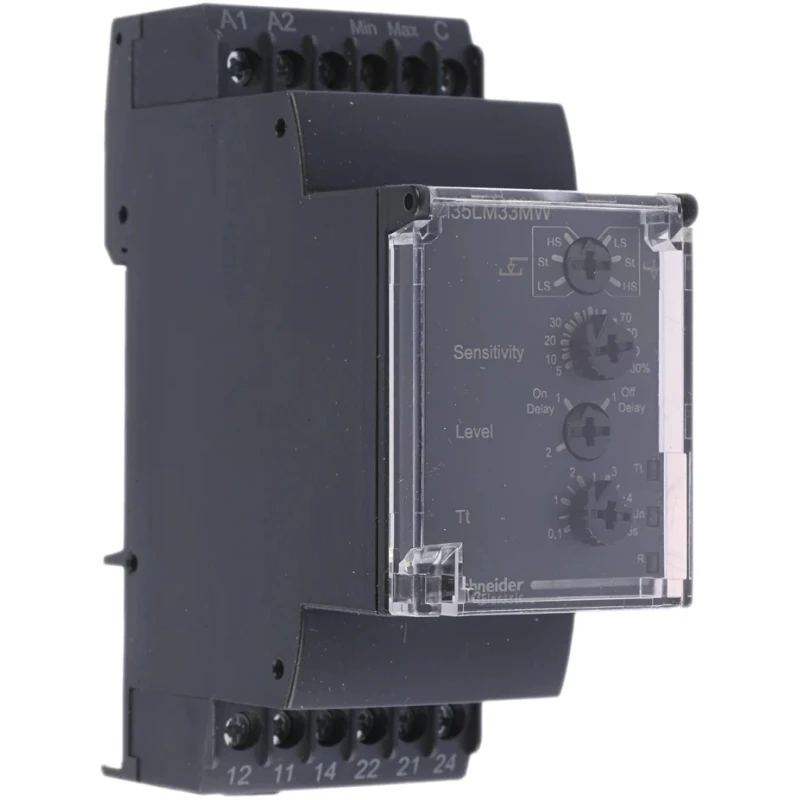

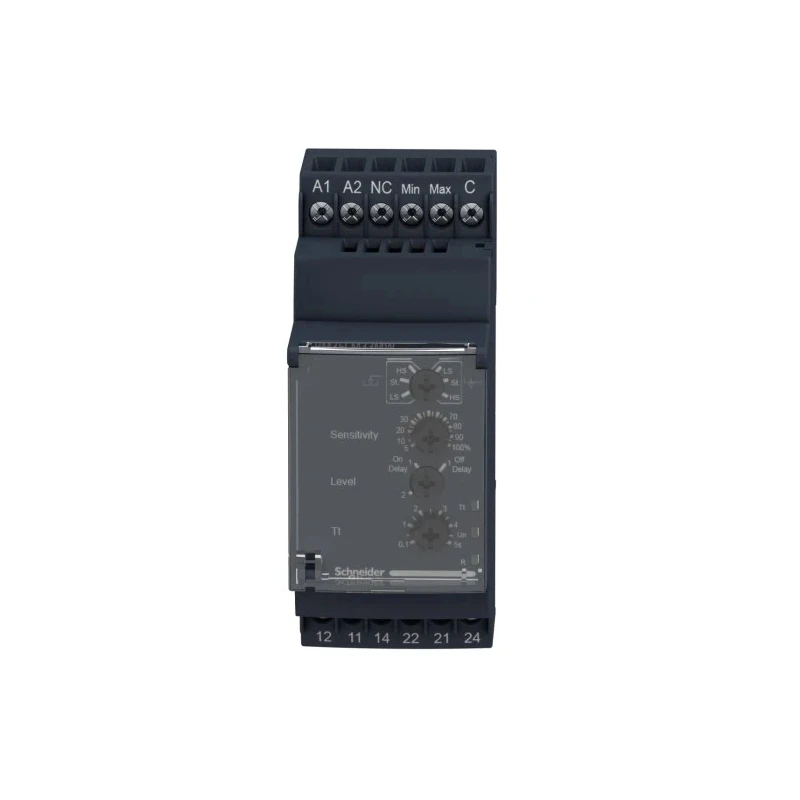

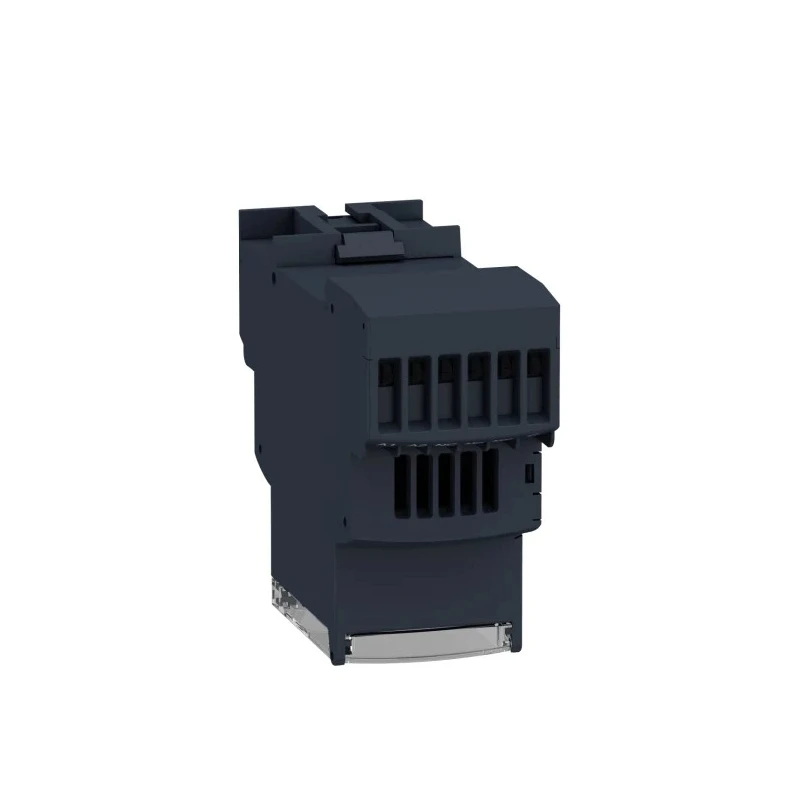

Schneider Electric Monitoring Relay 1 Phase DPDT DIN Rail 24V AC 240V AC RM35LM33MW

Schneider Electric RM35LM33MW monitoring relay is a high-performance device ideal for level control and monitoring applications in industrial settings. Featuring a single electrical phase and a DPDT contact configuration, this relay is suitable for automation, electrical, mechanical, and HVAC applications requiring precise control and safety.

This DIN Rail-mounted relay supports versatile supply voltages of 24 V AC and 240 V AC, making it adaptable to various power environments. Its time delay function from 0.1 to 5 seconds ensures flexible timing for pump controls, motor protections, and other time-dependent processes.

The compact design with dimensions of 90 mm height, 72 mm length, and 35 mm width allows for space-saving panel installations. The screw terminal connection type facilitates secure wiring installation. Operating reliably between -20°C and +50°C, it is well-suited for harsh industrial environments, combined with IP30 and IP20 protection standards for enhanced durability.

With a switching voltage rating of 250 V AC and contact current of 5 A, the RM35LM33MW can handle varied control relay tasks efficiently. It is compliant with CSA and UL certifications, ensuring it meets international safety and performance requirements.

Equipped with DPDT contact configuration for reliable switching. DIN Rail mount facilitates easy installation in control panels. Supports supply voltages of 24 V AC and 240 V AC for versatility. Time delay adjustable from 0.1 to 5 seconds enhances control flexibility.

Compact dimensions: 90 mm height, 72 mm length, and 35 mm width. Switching voltage rated at 250 V AC with 5 A contact current capacity. Robust screw terminal type ensures stable electrical connections. Operates in industrial temperature range from -20°C to +50°C.

IP30 and IP20 ingress protection ratings for environmental durability. Complies with CSA and UL standards for safety and certification.

Ideal for integration in industrial tanks, silos, reservoirs, HVAC systems, water treatment plants, manufacturing, automation, and process control cabinets, the RM35LM33MW relay delivers reliable and precise monitoring functionalities. It is part of Schneider Electric’s Harmony Control series, designed for long-term durability and high measurement accuracy.
