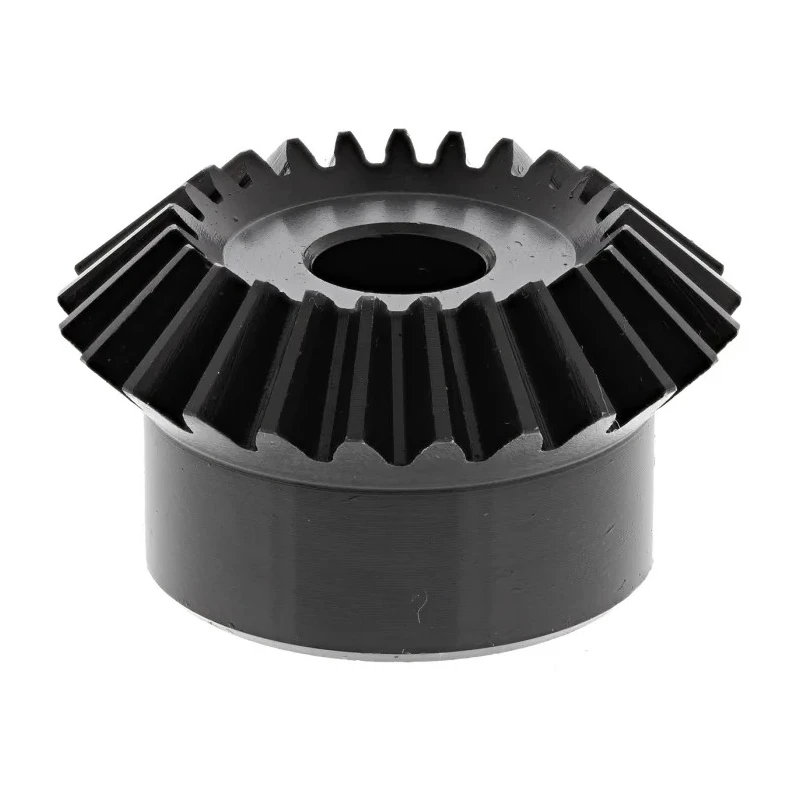

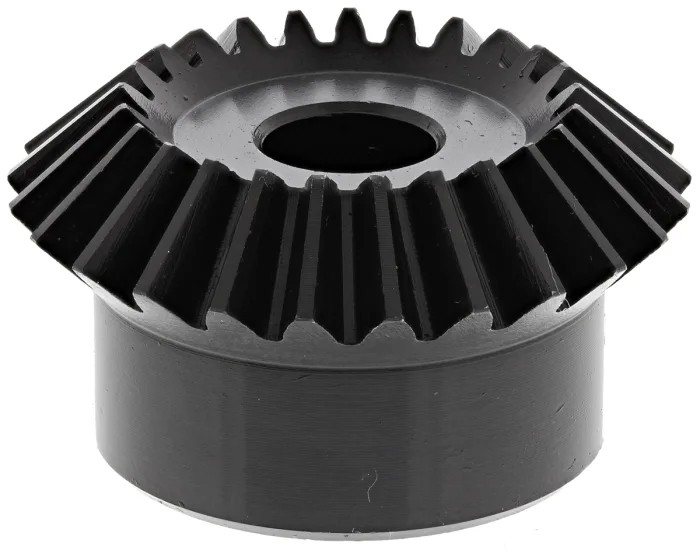

RS PRO Steel Mitre Gear 10mm Bore 25 Teeth 1.5 Module 521-5869

RS PRO 521-5869 Steel Mitre Gear is a high-quality mechanical power transmission component with a 10mm bore, 25 teeth, and 1.5 module. It is constructed from hardened steel with a chemi-black finish, offering outstanding durability and resistance to wear.

This gear features a pressure angle of 20°, pitch diameter of 1.5mm, and a nominal gear ratio of 1:1, ideal for efficient angular shaft rotation in transmissions and power transfer systems. The 30mm hub diameter accommodates standard shaft fittings, ensuring a secure and stable installation.

These mitre gears are designed to provide reliable and smooth direction changes in mechanical drive systems, making them perfect for industrial, manufacturing, automotive, and mechanical engineering applications. Their robust construction and tensile strength of 569 N/mm² deliver dependable performance under demanding loads.

RS PRO Steel Mitre Gears are available individually, allowing ease of integration into custom gear configurations. The standardized dimensions facilitate compatibility with a wide range of mechanical setups.

Manufactured from hardened steel with a chemi-black finish for durability. 10mm bore diameter for versatile shaft compatibility. Module 1.5 with 25 teeth providing smooth gear engagement. Pressure angle 20° with pitch angle 45° for optimal meshing.

Nominal gear ratio of 1:1 suitable for angular shaft rotation. Hub diameter of 30mm for stable mounting. Tensile strength of 569 N/mm² ensuring robustness. Supplied as single units allowing flexible system design.

This RS PRO mitre gear is widely used in mechanical power transmission setups, including gear shafts and transmissions in industrial machinery and automotive assemblies. Its steel construction ensures longevity and operational efficiency, making it a trusted choice for engineers and designers.
